AXIS M11-E Series

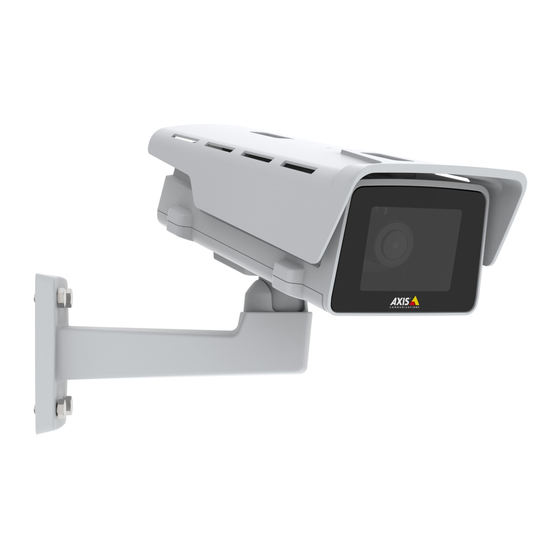

AXIS M1135-E Network camera
AXIS M1137-E Network camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M11-E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis M11-E Series

Summary of Contents for Axis M11-E Series

  • Page 1 AXIS M11-E Series AXIS M1135-E Network camera AXIS M1137-E Network camera User Manual...

  • Page 2: Table Of Contents

    AXIS M11-E Series Table of Contents About this manual ......... .

  • Page 3: About This Manual

    AXIS M11-E Series About this manual About this manual This user manual describes multiple products. Some of the instructions may not be relevant for your product.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Webpage Overview

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.
  • Page 6 AXIS M11-E Series Get started Settings tabs...

  • Page 7: Additional Settings

    AXIS M11-E Series Additional settings Additional settings Adjust the image To find out more about what you can do with the image, see Learn more on page 14. Level the camera To adjust the view in relation to a reference area or object, use the leveling guide in combination with a mechanical adjustment of the camera.
  • Page 8 AXIS M11-E Series Additional settings • To slow down the shutter speed, set max shutter to the highest possible value. • Set the max gain to a lower value. Reduce motion blur in low-light conditions To reduce motion blur in low-light conditions, you can adjust one or more of the following settings: Note Image noise will increase if you increase the gain.
  • Page 9 Note WDR may cause artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Improve license plate recognition To better recognize the license plate of a car passing by the camera, you can apply and adjust a number of things.

  • Page 10: View And Record Video

    Additional settings Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. 3. Make sure you have set up the application according to your needs.

  • Page 11: Set Up Rules And Alerts

    AXIS M11-E Series Additional settings Increase the compression. Turn on dynamic FPS. Note Web browsers do not support H.265 decoding. Use a video management system or application supporting H.265 decoding. Set up network storage To store recordings on the network, you need to set up network storage: 1.
  • Page 12 8. In the list of storage options, select SD card. 9. Click Save. Record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion. Required hardware •...
  • Page 13 AXIS M11-E Series Additional settings 1. Connect the other end of the ground wire to pin 1 (GND/-). 2. Connect the other end of the power wire to pin 2 (DC input/+). 3. Connect the other end of the I/O wire to pin 3 (I/O output).

  • Page 14: Learn More

    AXIS M11-E Series Learn more Learn more Bitrate control With bitrate control, you can manage the bandwidth consumption of your video stream. Variable bitrate (VBR) With variable bitrate, the bandwidth consumption varies based on the level of activity in the scene. The more activity in the scene, the more bandwidth you need.

  • Page 15: View Area

    AXIS M11-E Series Learn more kbit/s Target bitrate Actual average bitrate You can also turn on maximum bitrate and specify a target bitrate within the average bitrate option. kbit/s Target bitrate Actual average bitrate View area A view area is a cropped part of the full view. You can stream and store view areas instead of the full view to minimize bandwidth and storage needs.

  • Page 16: Overlays

    Stream tab. Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications.

  • Page 17: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 18: Upgrade The Firmware

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 19: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 20: Need More Help

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Need more help? Useful links •...

  • Page 21: Specifications

    AXIS M11-E Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. Product overview IK10 tool Safety wire Top cover Weather cover Front widow Network camera...

  • Page 22: Led Indicators

    AXIS M11-E Series Specifications Focus ring Focus ring lock Zoom puller I/O connector Iris connector Power connector ″ ¼ Screw mount Microphone microSD card slot 10 Network connector, PoE 11 LED 12 Control button 13 Audio in LED indicators Note The Status LED can be configured to flash while an event is active.

  • Page 23: Sd Card Slot

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 24 AXIS M11-E Series Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 25 mA Digital Input...
  • Page 25 User Manual Ver. M2.2 AXIS M11-E Series Date: January 2020 © Axis Communications AB, 2019 - 2020 Part No. T10140813...

This manual is also suitable for:

M1135-eM1137-e
