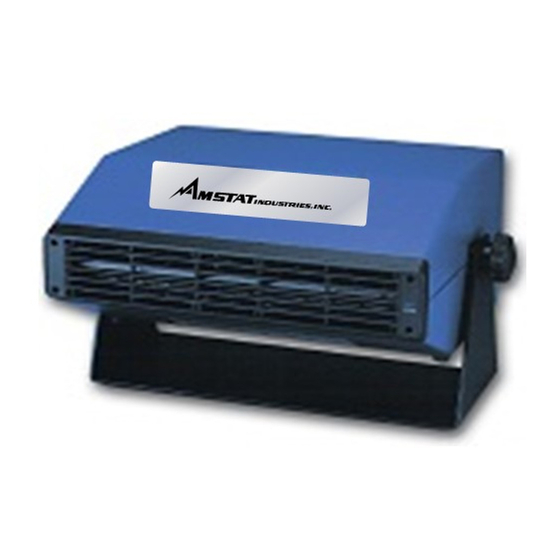

- Page 1 I-VSE 5000 Static Neutralizing Blower INSTALLATION AND OPERATING INSTRUCTIONS I-VSE 5000 5101153 Rev D...
-
Page 2: Table Of Contents
1. Notes and Cautions ................1 2. Introduction..................2 3. Specifications ................... 3 4. Installation ..................3 5. Operation ..................4 6. Troubleshooting ................. 5 7. Maintenance ..................7 8. Accessories and Parts ................. 8 9. Warranty Statement ................9 I-VSE 5000 5101153 Rev D... -
Page 3: Notes And Cautions
NOTE - If any damage has occurred during shipment, notify the local carrier at once. A report should also be forwarded to Simco-Ion, 2257 North Penn Road, Hatfield PA 19440. Terms and Symbols The following terms and symbols appear in this manual: NOTE –... -
Page 4: Introduction
The I-VSE 5000 neutralizes areas up to 80 square feet and features a passive ionization circuit that maintains ion balance, even during voltage fluctuations. The I-VSE 5000 is CE compliant and complies with FCC Part 15 requirements for Class A equipment. The I-VSE 5000 features •... -
Page 5: Specifications
0.6 sec at 1-ft (1000V to 100V) 4. INSTALLATION For maximum effectiveness, position the I-VSE 5000 as close as possible to the charged surface to be neutralized. Direct the air stream longitudinally, and in the same direction as, the target material movement to maximize the time the charged surface remains in the air stream. -
Page 6: Operation
Decay times measured per ANSI EOS/ESD Standard 3.1 Start Up: Turn power switch to ON position. Turn fan speed knob to adjust air velocity. Low fan speed should be adequate for most applications. High fan speeds may be used for larger areas. I-VSE 5000 5101153 Rev D... -
Page 7: Troubleshooting
IONIZER TEST: To determine if the ionizer bar is functioning properly, place a Static Bar Checker (Simco-Ion p/n 4000004) on each of the ionizing points. If the Static Bar Checker glows at only some of the points, check the points where it did not glow for metal fragments or other contamination. - Page 8 Verify that the front bezel is NOT grounded (and that a ground lead from a balance meter, or other instrument, is not attached to the bezel). Verify that a known ground is in use or fan guard on back panel of the I-VSE 5000 is used as a ground point.
-
Page 9: Maintenance
Reinstall the bezel assembly onto the front of the ionizer with the word “POWER” on the right side as you face the bezel. Tighten the four cap screws until the bezel is snug against the front of the blower case. I-VSE 5000 5101153 Rev D... -
Page 10: Accessories And Parts
8. ACCESSORIES AND PARTS Item Part Number Emitter assembly ........10631-001 Filter Kit ........... 10790 Replacement Air Filters (pkg of 10) ..5050974 Portable Floor Stand (optional) ....5050975 I-VSE 5000 5101153 Rev D... -
Page 11: Warranty Statement
The equipment being returned under warranty should be shipped by the purchaser to Simco-Ion, 2257 North Penn Road, Hatfield PA 19440, transportation prepaid and insured for its replacement cost. Prior to returning any goods for any reason, contact Simco-Ion Customer Service at (215) 822-6401 for a Return Authorization Number. This number must accompany all returned items. - Page 12 Simco-Ion 2257 North Penn Road Hatfield, PA 19440 (215) 822-6401 (800) 203-3419 www.simco-ion.com customerservice@simco-ion.com © 2011 Simco-Ion. Printed in the U.S.A. I-VSE 5000 5101153 Rev D...
