- Page 1 66A5400H01 Instruction Booklet for the Installation, Operation and Maintenance of Type 5-15 kV VCP-WG Vacuum Circuit Breaker 4000A MiniMod Eaton Corporation Moon Twp, PA. U.S.A. 15108...
- Page 2 66A5400H01 INTRODUCTION READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE ATTEMPTING TO USE THIS DEVICE. IMPROPER USE CAN RESULT IN DEATH, BODILY INJURY AND/OR PROPERTY DAMAGE. SAFETY PRECAUTIONS: All safety codes, safety standards and/or regulations must be strictly observed in the installation, operation and maintenance of this device.
- Page 3 66A5400H01 DESCRIPTION The Eaton 4000A Mini-Mod is an integrated assembly for drawout vacuum circuit breakers, bus and control devices coordinated electrically and mechanically for medium voltage circuit protection and control. The metal-clad integrity provides maximum circuit separation and safety. All circuit breakers are equipped with self-aligning and self-coupling primary and secondary disconnecting devices, and arranged with a mechanism for moving it physically between connected and disconnected positions.
- Page 4 66A5400H01 Figure #1: View of the 4000A MiniMod with part descriptions.
- Page 5 66A5400H01 Figure #2: Outline drawing with reference dimensions.
- Page 6 66A5400H01 Figure #3 and #4: View of the breaker in the text and connected positions.
- Page 7 66A5400H01 Figure #5: View of the breaker on the rails getting ready to be racked in the MiniMod. Figure #6: View of the breaker racked in the MiniMod.

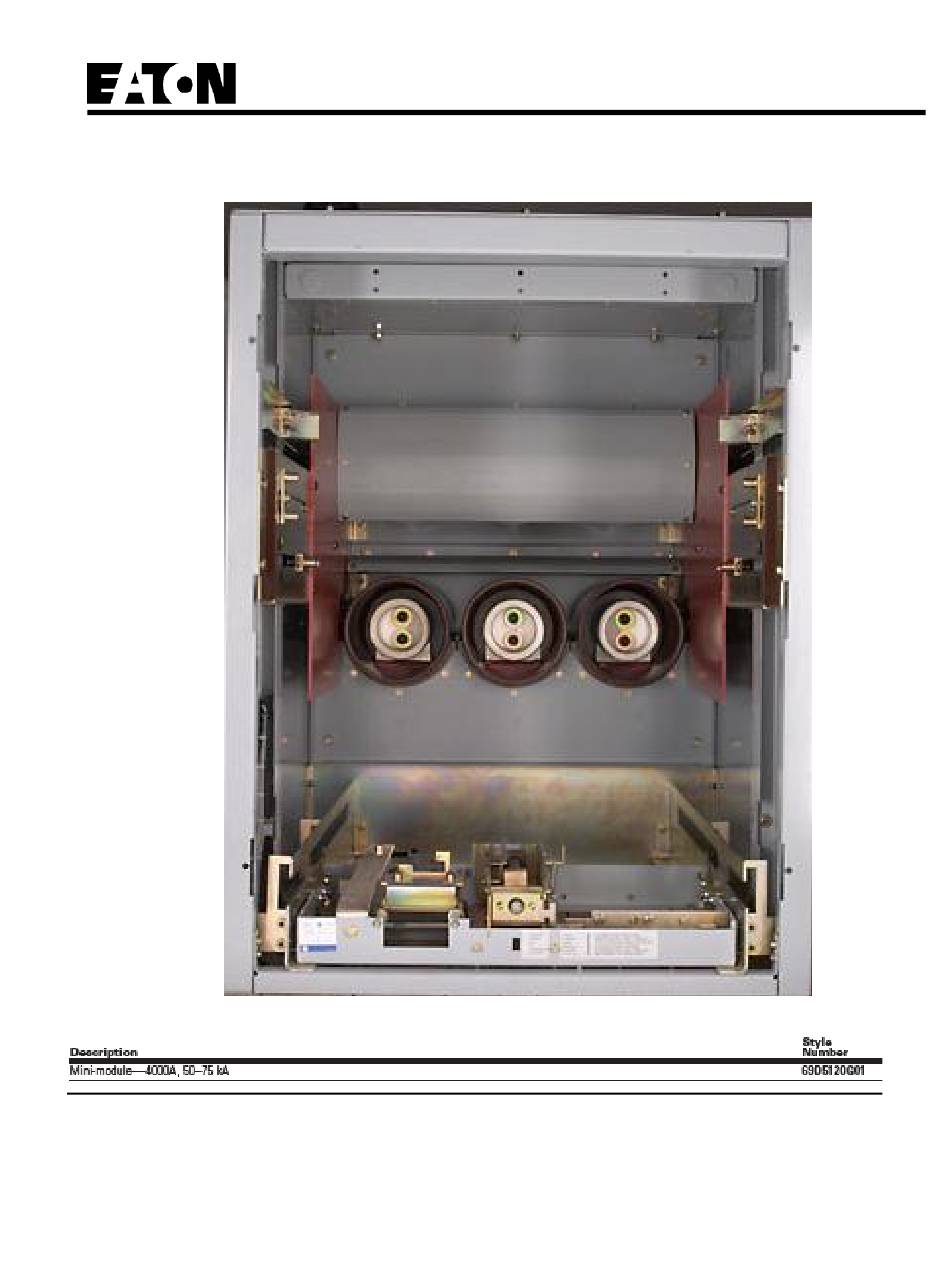

- Page 8 66A5400H01 Figure #7: View inside the MiniMod.
- Page 9 The unit can now be moved around via a pallet jack and or fork lift truck. Eaton suggests moving the unit around attached to the pallet. This is due to the large size of the unit and the unbalanced weight of the unit. Eaton suggests the wood crate be saved in storage as long as possible in case it is needed.
- Page 10 For assistance in establishing or updating a detailed Inspection and Maintenance schedule for a specific application, please contact your local Eaton representative. General Torque Guidelines: Bolts and screws must be properly torqued.
- Page 11 Check to make sure the breaker can successfully be racked in and out of the MiniMod without any of the components binding, rubbing, and or breaking. If problems are identified then contact your local Eaton Salesman or EESS for repair / replacement parts.
- Page 12 TRADE, ARE MADE REGARDING THE INFORMATION, RECOMMENDATIONS AND DESCRIPTIONS CONTAINED HEREIN. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss...
