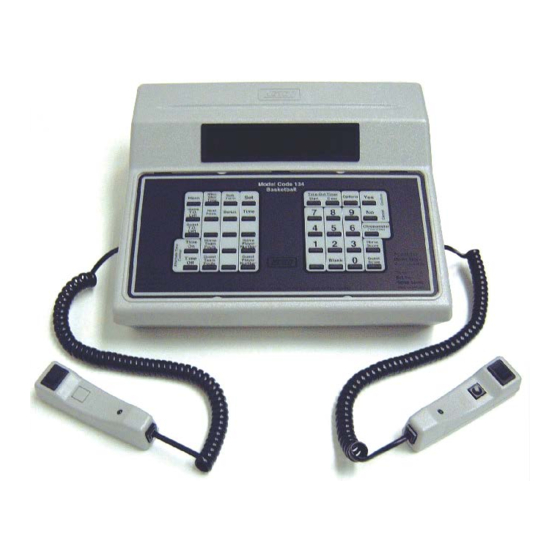

Nevco MPCW-6 Instructions Manual
System key management
Hide thumbs
Also See for MPCW-6:
- Control hookup and troubleshooting manual (13 pages) ,
- Quick stark manual (3 pages)
Table of Contents
Advertisement
Please Read This First!
Quick Start
Your system Data has been Preinstalled.
To light all scoreboards in your system turn on
the control. Press the "YES" key when
prompted, "Do you want to start where last
turned off?"
To change your system data refer to the
System Key Management Instructions
attached.
Nevco Scoreboard Company
1-800-851-4040
Advertisement
Table of Contents
Related Manuals for Nevco MPCW-6
Summary of Contents for Nevco MPCW-6
- Page 1 To light all scoreboards in your system turn on the control. Press the “YES” key when prompted, “Do you want to start where last turned off?” To change your system data refer to the System Key Management Instructions attached. Nevco Scoreboard Company 1-800-851-4040...
- Page 2 M P C W-6 System Key Management Instructions System Key Management Model Code 618 GROUP MANAGEMENT RECEIVER MANAGEMENT Show Select Create Select Rename Delete Group Group Group Rcvr Rcvr Rcvr Rcvrs Remove Rename Delete Rcvr Rcvr Group Group Save Changes A B C D E F G H I...
- Page 3 Groups are created (up to 40 scoreboards and other Nevco equipment that will be operated together). These Groups are given names. Names may be up to 16 characters.
- Page 4 Key to each Receiver once. Step 3 Connect the MPCW-6 to its power adapter and plug into any 120 volt 50/60 hertz outlet. Unplug any hand-held switches before continuing with the set up. Turn on the MPCW-6. On the MPCW-6 enter the 618-model code from the overlay.
- Page 5 confirm receiver by displaying “Name Accepted”. When choosing a name for the receiver you will want to select the equipment by a name that is easily recognizable by anyone who might operate the equipment. This procedure will need to be done for each Receiver until the display indicates “Ready”. Note: Once all Receivers are named you may press the “No”...
- Page 6 120 volt outlet. The data will be transferred to the System Key. Step 2: Turn the MPCW-6 on; enter 618 Model Code and follow prompts to Insert System Key to either hand-held switch socket. The Data will be downloaded to the control.
- Page 7 Delete a Receiver Step 1: Turn the control on, insert the System Key Management Overlay and follow the prompts to enter the “618” model code. Step 2: Insert the System Key in either hand-held switch socket. Step 3: Press “Select Rcvr” key, continue to press until desired receiver is displayed.
- Page 8 Step 3: At the “Ready” prompt press “Select Group” until the group to be deleted is displayed. Step 4: Press “Delete Group” key, Display will read “Delete this Group, Press Yes or No” Press “Yes” to delete, “No” to cancel. Step 5: Confirm that the new receiver(s) is/are now in the proper Group.
- Page 9 Step 5: Exit the system, Press “Quit” key, Press “Yes”, Turn control off and remove System Key. Programming Extra MPCW-6 Controls To program extra MPCW-6 controls follow these steps. Step 1: Turn control on and insert “System Key Management” Overlay Step 2: Enter Model Code 618 Step 3: Insert System Key in either hand-held switch socket.
- Page 10 As an operational feature this control is using bandwidth that could be used by other Nevco equipment. Either turn control off, if not needed, or turn the control off then on. Wait for model code prompt and enter the desired model code.
- Page 11 4. When the green system key LED lights disconnect the system key from the receiver. 5. Take the system key to your MPCW-6 control. 6. Install the 618 overlay onto the control. 7. Turn the control on and enter the 618 model code.
