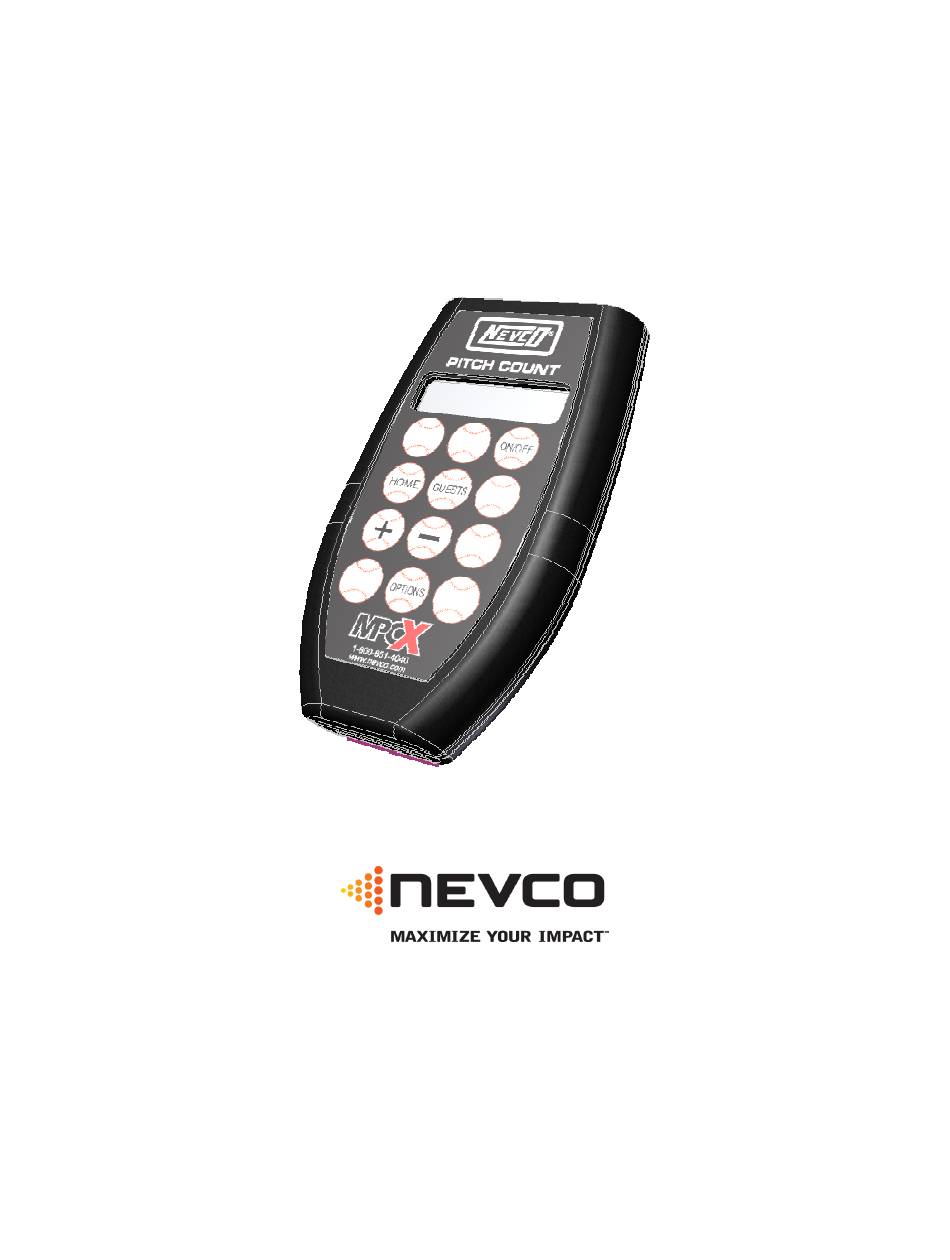

- Page 1 Scoreboard Operator’s Instructions MPCX Pitch Count Control Since 1934 Retain this manual in your permanent files Rev: 4/11/2011 135-0207...
- Page 2 PCD-16 PCD-18 Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.

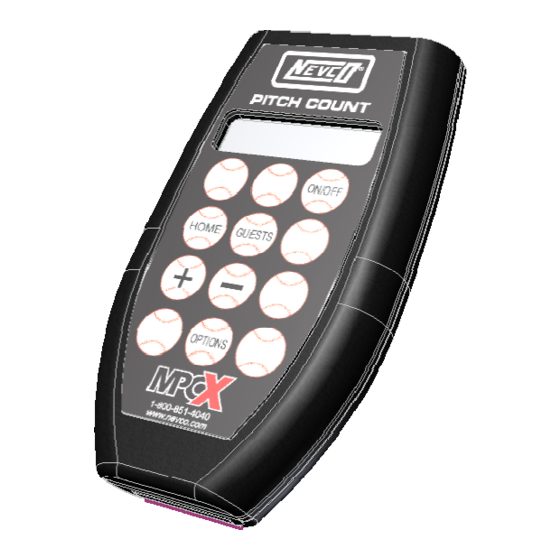

- Page 3 BNC Connector LED Status Indicator Belt Clip (On steady = Power) (Signal out to scoreboard) (Blinking = Signal I/O) Power Input (9 V DC) Not Used Battery Compartment Cover (2 x AA) MPCX CONTROL (rear view) MPCX Receiver LCD Display (16 characters x 2 lines) Power ON / OFF Switch Selects HOME or GUESTS Add to or Subtract from the selected...
-
Page 4: Table Of Contents
TABLE OF CONTENTS QUICK START GUIDE ........................ 1 ....................... 1 TART A ..................... 2 O ADD ITCH OUNT ........2 LEAR THE ITCH OUNT HEN A ITCHER NTERS KEYBOARD FUNCTIONS ......................3 GREETING ........................3 SCREEN MAIN ..........................4 SCREEN OPTIONS M ......................... -
Page 5: Quick Start Guide
QUICK START GUIDE Note: It is assumed here that the control has been linked to the desired receiver(s). This function is explained in the setup guide that comes with a new control. (See page 7 for detailed instructions). It is assumed that the receiver is powered ON. -
Page 6: To Add To The Pitch Count
To add To The Pitch Count MPCX Pitch Count Press Home:12 Guest:14 to select the team as necessary. HOME GUESTS Strikes:0 Then press to update the count. MPCX Pitch Count Home:12 Guest:15 Strikes:0 To Clear the Pitch Count When a New Pitcher Enters The Game Press OPTIONS Clear (Home) -
Page 7: Keyboard Functions
KEYBOARD FUNCTIONS GREETING screen Accessed GREETING MPCX Pitch Count When the control is Powered ON, the greeting showing the pressing »»» type of control and the sport is displayed. This greeting continues to be displayed while the control establishes communications with its receiver(s). (May take up to 30 ON/OFF seconds) When you are done using the control turn it OFF to conserve... -
Page 8: Main Screen
MAIN screen Accessed MAIN MPCX Pitch Count The main screen shows the number of pitches thrown by both pressing Home: 0 Guest: 0 pitchers that are currently in the game. The cursor indicates the Strikes:0 currently selected team. Use the HOME or GUESTS keys to select the team, then, use the “+”... -
Page 9: Options Menu
OPTIONS Menu Several option settings are available to properly set up and fine tune the scoreboard system to your needs. These settings are saved in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates. -
Page 10: Advanced Options
Generally, these settings need not be changed and Change Settings should only be changed by an experienced operator or under direction from the Nevco Service Department. Press the following key sequence to gain access to the following additional menu items HOME... -
Page 11: Procedure To Mate A Control And Receiver(S)
This menu option reports the number of receivers the control is Link Control 0/0 currently linked to (0/0), and the number of receivers on its Press (+) “Link To” list (0/0). The option also allows you to link a control to a scoreboard (receiver) or group of scoreboards (receivers). -
Page 12: Setting Scoreboard Model
Setting Scoreboard Model Note: The Pitch Count Control is compatible to the pitch count display in all three modes. These modes are to be compatible with a baseball scoreboard being used in conjunction with the Pitch Count display. The next press of the options key will display one of the following screens. It indicates which of the scoreboard types the control is currently configured to operate. -
Page 13: Troubleshooting Chart
Scoreboard is being controlled by more Set Security to “(+) ON”. (See scoreboard(s) assume the security level of than one control Options Menu) the control that turns it ON If the problem persists please contact the Nevco Service Department. 800-851-4040... - Page 14 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of Nevco could void the user’s authority to operate this equipment.
