Lift-Up Cooktop; Surface Burners - Whirlpool SF310PEA Use And Care Manual

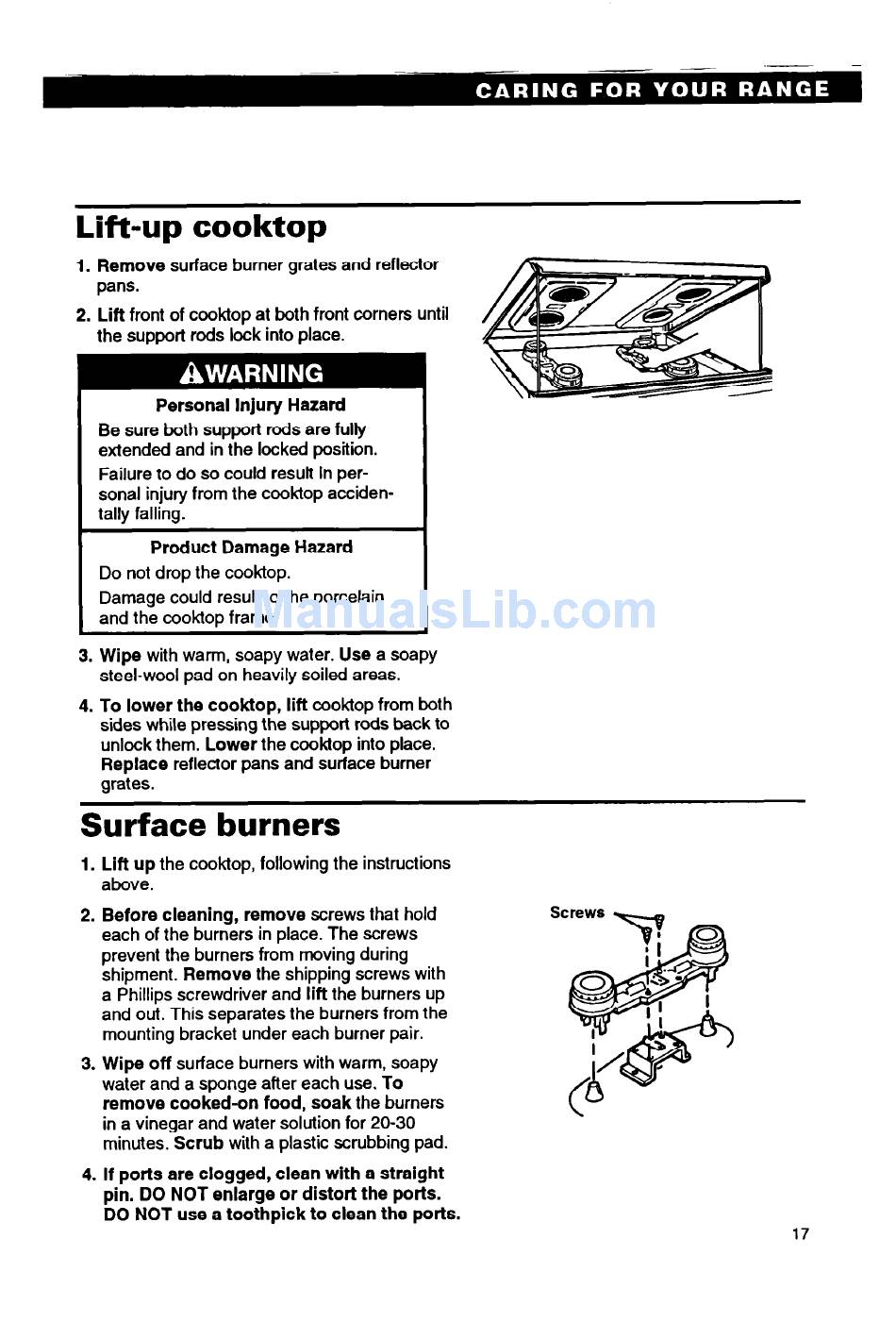

Lift-up cooktop
2.
Lift
front of cooktop at both front corners until
the support rods lock into place.
I
Personal Injury Hazard
Be sure both support rods are fully
extended and in the locked position.
Failure to do so could result in per-
sonal injury from the cooktop acciden-
tally falling.
1. Remove
surface burner grates and reflector
pans.
Product Damage Hazard
r
Do not drop the cook-top.
Damage could result to the porcelain
and the
cooklop
frame.
3.
Wipe
with warm, soapy water.
Use a
soapy
steel-wool pad on heavily soiled areas.
4.
To lower the cooktop, lift
cooktop from both
sides while pressing the support rods back to
unlock them. Lower the cooktop into place.
Replace
reflector pans and surface burner
grates.
Surface burners
1. Lift up
the cooktop, following the instructions
above.
2. Before cleaning, remove
screws that hold
each of the burners in place. The screws
prevent the burners from moving during
shipment. Remove the shipping screws with
a Phillips screwdriver and lift the burners up
and out. This separates the burners from the
mounting bracket under each burner pair.
3. Wipe
off surface burners with warm, soapy
water and a sponge after each use. To
remove cooked-on food, soak
the burners
in a vinegar and water solution for 20-30
minutes.
Scrub
with a plastic scrubbing pad.
4. If ports are clogged, clean with a straight
pin. DO NOT enlarge or distort the ports.
DO NOT use a toothpick to clean the ports.
17
