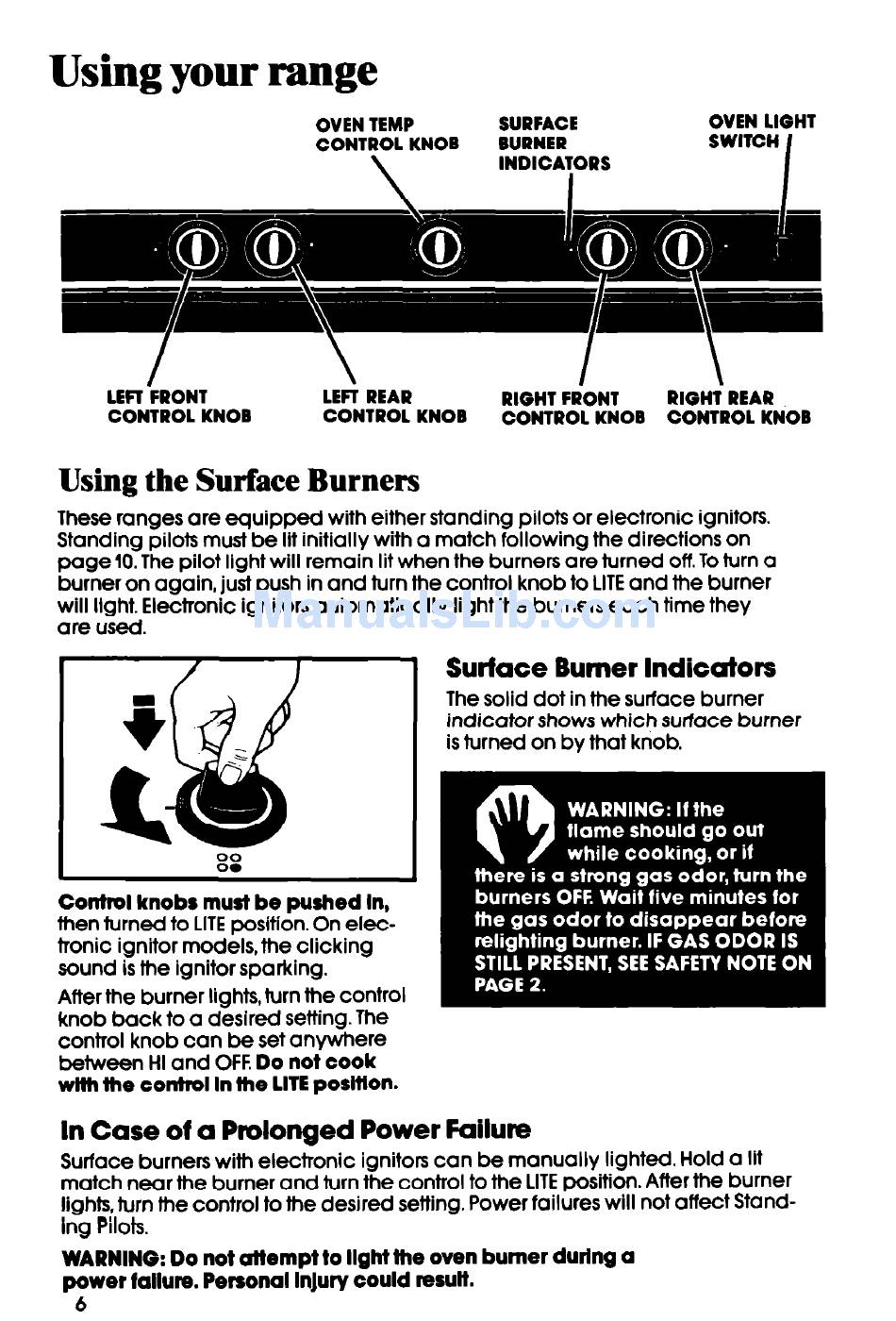

Using your range
OVEN TEMP
SURFACE
OVEN LIGHT
CONTROL KNOB
BURNER
SWITCH 1
INDICATORS
LEFT FRONT LEFT REAR
RIGHT FRONT RIGHT REAR
CONTROL KNOB CONTROL KNOB
CONTROL KNOB CONTROL KNOB
Using the Surface Burners
These ranges are equipped with either standing pilots or electronic ignitors.
Standing pilots must be lit initially with a match following the directions on
page 10. The pilot light will remain lit when the burners are turned off. To turn a
burner on again, just push in and turn the control knob to LITE and the burner
will Ilght. Electronic ignitors automatically light the burners each time they
are used.
Surface Burner Indicators
The solid dot in the surface burner
indicator shows which surface burner
is turned on by that knob.
Control knobs must be pushed in,
then turned to LITE position. On elec-
tronic ignitor models, the clicking
sound is the ignitor sparking.
After the burner lights, turn the Control
knob back to a desired setting. The
control knob can be set anywhere
between HI and OFF
Do not cook
witf~ the control in the LITE posiffon.
In Case of a Prolonged Power Failure
Surface burners with electronic ignitors can be manually lighted. Hold a lit
match near the burner and turn the control to the LITE position. After the burner
lights. turn the control to the desired setting. Power failures will not affect Stand-
ing Pilots.
WARNING: Do not aftempt to light the oven burner during a
power failure. Personal injury could result.
6
