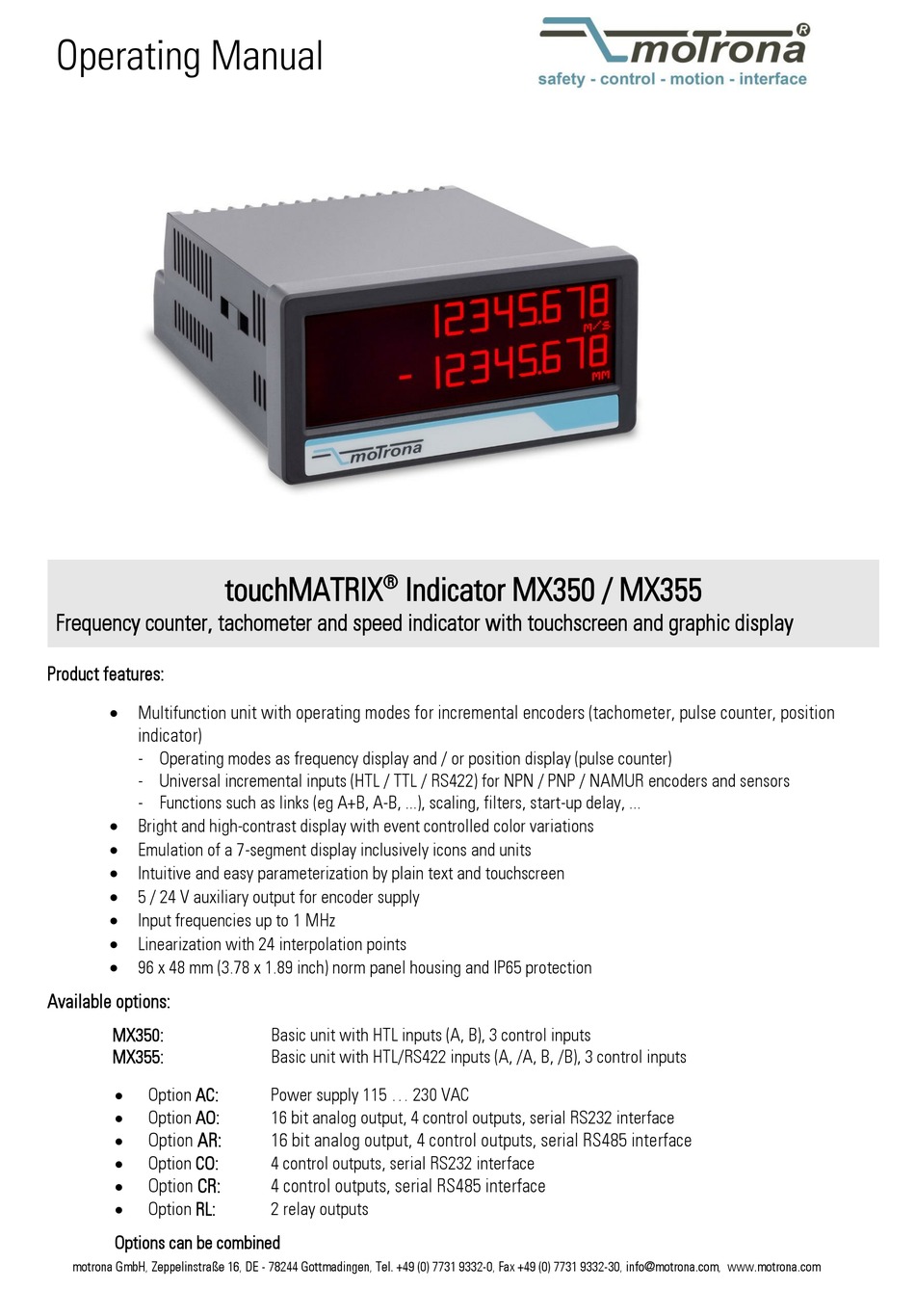

Operating Manual
Frequency counter, tachometer and speed indicator with touchscreen and graphic display
Product features:
 Multifunction unit with operating modes for incremental encoders (tachometer, pulse counter, position
indicator)
- Operating modes as frequency display and / or position display (pulse counter)
- Universal incremental inputs (HTL / TTL / RS422) for NPN / PNP / NAMUR encoders and sensors
- Functions such as links (eg A+B, A-B, ...), scaling, filters, start-up delay, ...
 Bright and high-contrast display with event controlled color variations
 Emulation of a 7-segment display inclusively icons and units
 Intuitive and easy parameterization by plain text and touchscreen
 5 / 24 V auxiliary output for encoder supply
 Input frequencies up to 1 MHz
 Linearization with 24 interpolation points
 96 x 48 mm (3.78 x 1.89 inch) norm panel housing and IP65 protection
Available options:
MX350:
MX355:
Option AC:
Option AO:
Option AR:
Option CO:
Option CR:
Option RL:
Options can be combined
motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com
touchMATRIX
®
Basic unit with HTL inputs (A, B), 3 control inputs
Basic unit with HTL/RS422 inputs (A, /A, B, /B), 3 control inputs
Power supply 115 ... 230 VAC
16 bit analog output, 4 control outputs, serial RS232 interface
16 bit analog output, 4 control outputs, serial RS485 interface
4 control outputs, serial RS232 interface
4 control outputs, serial RS485 interface
2 relay outputs
Indicator MX350 / MX355
