A-YO SERIES

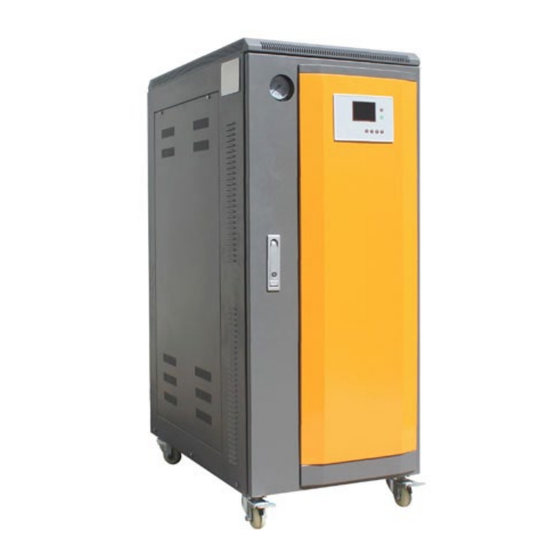

ELECTRIC STEAM BOILER
OPERATING & MAINTENANCE MANUAL
ALL MODELS
ATLANTIC 2000 - boilerplant sales ACM ATLANTIC - commissioning and maintenance ATLANTIC 4422 – spares
Atlantic 2000 Registered in England Company No: 1477687 Vat Reg No: 306 0653 89
PO BOX 11, ASHTON UNDER LYNE, OL6 7TR T: 0161 621 5960 E: technical@atlanticboilers.com www.atlanticboilers.com
Advertisement
Related Manuals for Atlantic Boilers A-YO Series
Summary of Contents for Atlantic Boilers A-YO Series
- Page 1 A-YO SERIES ELECTRIC STEAM BOILER OPERATING & MAINTENANCE MANUAL ALL MODELS ATLANTIC 2000 - boilerplant sales ACM ATLANTIC - commissioning and maintenance ATLANTIC 4422 – spares Atlantic 2000 Registered in England Company No: 1477687 Vat Reg No: 306 0653 89...
- Page 2 Index Performance ………………….. Boiler drawings ………….. Installation …………………… Operation …………………….. Setting the time control … Daily maintenance ………….. Fault finding ……………………. Typical installation …………. Typical electrical wiring …...
- Page 4 Boiler front elevation BARSg 7 to 10 415/240 7 to 10 415/240 7 to 10 415/240 7 to 10 7 to 10 7 to 10 7 to 10 7 to 10 7 to 10 7 to 10 7 to 10 7 to 10 8 to 10 8 to 10...
- Page 5 Boiler rear elevation Boiler front inner elevation Electric control panel Safety valve Live, neutral & earth terminals Output steam control valve Electric leakage protection Feed water tank overflow Feed water pump fuse Feed water tank ball valve Heating elements contactor Feed water tank drain Feed water pump air bleed Housing cover plate...
- Page 6 Boiler view from above Right side boiler elevation Product rating plate High/low levelling of feed water Feed water level sensor Low level limit stops heating Glass level tube with valves On/off pressure control Glass tube with flushing valve Pressure gauge Feed water levelling pipe Pressure sensing pipe Robust earth connection...
- Page 7 Connect water supply, insert an Connect isolating valve; ensure feed water is blow 50°C 3 x L’s to three live supply wires We recommend the installation of a water-softening plant. 1 x N to neutral supply 1 x PE to robust earth Connect the steam boiler output through Connect safety valve outlet and a non-return valve to a distribution system...
- Page 8 Check that the feed water tank is clean Open air screw on the feed water pump and free of all debris. and check all air is removed. Open valve and allow water into the Switch on pump for 60 seconds and repeat Feed Water tank.
- Page 9 Press the ‘POWER’ button Press ‘ON/OFF’ on controller Full screen lights up Boiler is in ‘RUN’ condition and everything will operate. Boiler indicates ‘lack of water’ Display ‘P-L’, boiler will commence heating – turn on steam valve and cycle of heat/water feed will proceed Press ‘ON/OFF’...
- Page 10 Setting the time control Open the steam valve slowly to encourage dry steam at stable pressure To stop the boiler Press ‘POWER’ button – controller display disappears Turn of main electrical power After 15seconds and pressure drops to 1BARg, open drain outlet WARNING Do not open the drain immediately after stopping the boiler...
- Page 11 Regular Maintenace Monthly Electrical Terminals Check Daily Maintenance After boiler is switched off, allowed to cool for 15minutes, and pressure falls to 1BARg Then drain valve is opened to release condensate do not open drain valve too soon – there will be damage to the boiler Turn off the main power supply –...
-
Page 12: Fault Finding
Fault Finding ERROR POSSIBLE FAULT LIKELY REPAIR LCD controller – no display Fuse failure Change fuse Low voltage Check voltage Wire(s) loose Check circuits LCD faulty Replace LCD LCD lights up – button F no go High or low voltage Check voltage Button F faulty Replace LCD... - Page 13 Fault Finding ERROR POSSIBLE FAULT LIKELY REPAIR Pressure gauge mis-reading Pressure gauge broken Replace gauge Brass housing blocked Clean or replace housing Water overspill from boiler Ball valve blocked in open tank Open tank lid and repair Ball valve broken Replace ball valve Open tank filled with hot water Back-feed from check valve...
- Page 14 voltage 240V/50Hz A-YO 3-9kW...
- Page 15 voltage 415V/50Hz voltage 415V/50Hz A-YO 18 – 50kW A-YO 3 – 15kW...
- Page 16 voltage 415V/50Hz A-YO 60 – 100kW...
