Multi-Elec

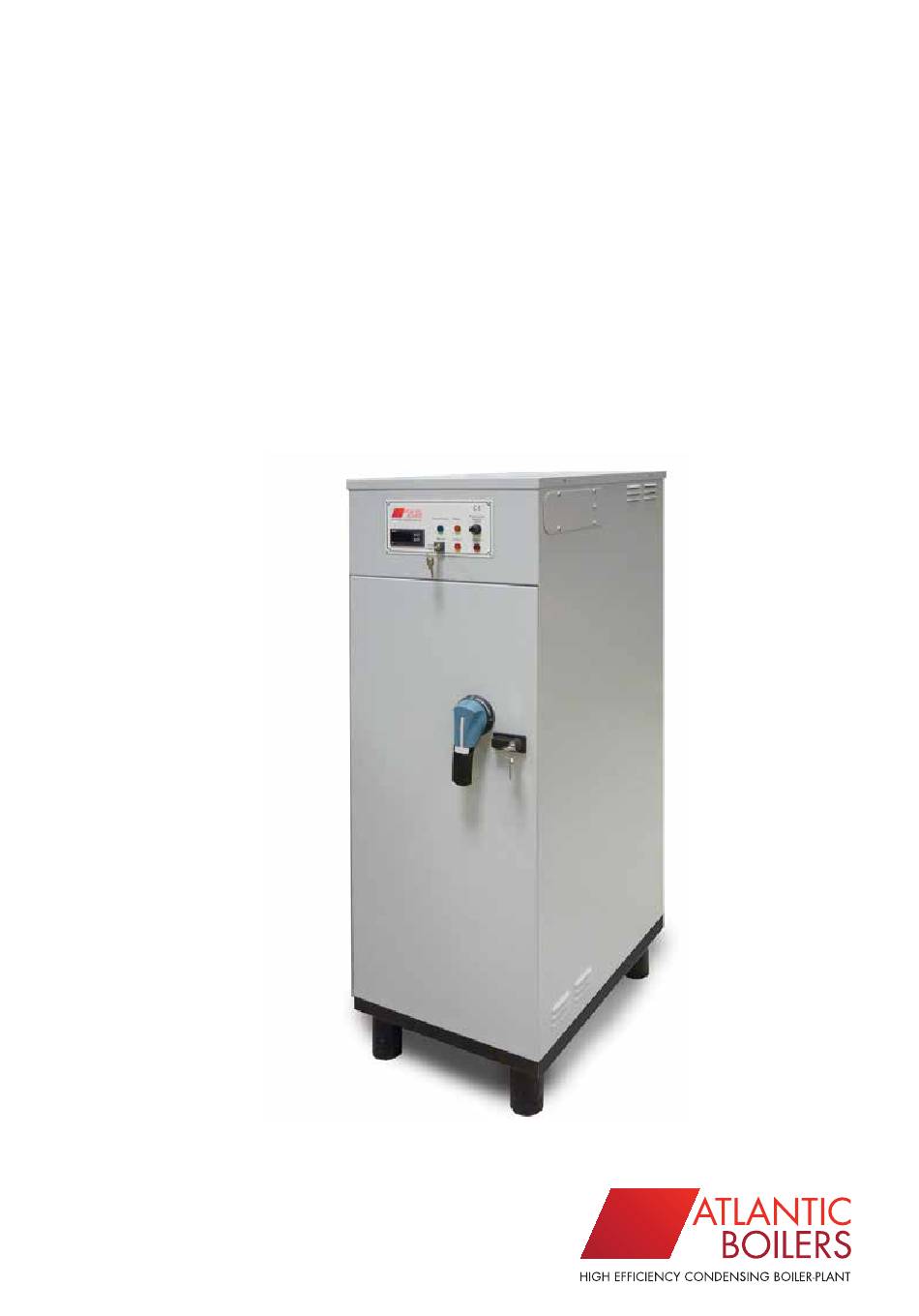

COMPACTE BOILER
TECHNICAL MANUAL
03/2013 CODE: 560956
CE Directive 2006/95/CEE British Standard EN 60335-1 (C 73800)
FOR TECHNICAL HELP/ADVICE Call 0161 621 5960
or email info@atlanticboilers.com
FOR FULL PRODUCT RANGE & LITERATURE
Visit www.atlanticboilers.com
ATLANTIC BOILERS, PO BOX 11, ASHTON UNDER LYNE, OL6 7TR T: 0161 621 5960 E: info@atlanticboilers.com www.atlanticboilers.com
Advertisement
Table of Contents
Related Manuals for Atlantic Boilers Multi-Elec Compacte Series
Summary of Contents for Atlantic Boilers Multi-Elec Compacte Series
- Page 1 CE Directive 2006/95/CEE British Standard EN 60335-1 (C 73800) FOR TECHNICAL HELP/ADVICE Call 0161 621 5960 or email info@atlanticboilers.com FOR FULL PRODUCT RANGE & LITERATURE Visit www.atlanticboilers.com ATLANTIC BOILERS, PO BOX 11, ASHTON UNDER LYNE, OL6 7TR T: 0161 621 5960 E: info@atlanticboilers.com www.atlanticboilers.com...
-
Page 2: Table Of Contents
CONTENTS 1) INTRODUCTION 1.1) Description 1.2) Dimensions & connections 2) INSTALLATION 2.1) Procedure 2.2) Arrangement 2.3) Essential accessories 2.4) Precautions 2.5) Boiler room arrangements 2.6) Commissioning ELECTRICAL ARRANGEMENTS 3.1) Control panel arrangement 3.2) Control circuitry 3.3) Electrical power circuitry 3.4) Fuse and overload protection 11-12 3.5) -
Page 3: Introduction 1.1) Description
INTRODUCTION 1.1) Description The COMPACTE electric boiler is suitable for a variety of types of space heating and indirect domestic hot water – covering sealed circuits from 0.5BARS to 7.0BARS working pressure. The COMPACTE electric boiler always requires earthing, under protection index IP21/1K 08. The COMPACTE electric boiler is designed and manufactured according to the following :- EN Decree 95-1081 –... -
Page 4: Dimensions & Connections
1.2) Dimensions and connections Model Maximum Amps Weight Footprint Depth mm Width mm Height Output phase 400 x 600 1240 400 x 600 1240 400 x 600 1240 400 x 600 1240 Access mm: One side: 500 Other side: 100 Front: 1000 Rear: 500 Height: 1240 + 700 Access to remove immersion heater elements The COMPACTE electric boiler range covers from 36kW to 72kW and is complete with pre-... -
Page 5: Procedure
2) INSTALLATION 2.1) Procedure Position the boiler squarely on the prepared base Fit the correct accessories to the boiler connections Connect the boiler to the pipework system Connect the boiler to the isolated electrical supply Fill the boiler with fresh, clean water Check that the immersion heaters are electrically isolated from the boiler. -
Page 6: Essential Accessories
2.3) Essential accessories The following items are required :- A. One 4-bar safety valve and one 7bar temperature and pressure relief valve B. One shunt pump – protected by overloads (0.37A to 1.4A adjustable) and run + fault lamps C. One water flow switch Recommended water flow settings in litres per second Pipeline sizes 32mm... -
Page 7: Precautions
2.4) Precautions The Multi-elec Compacte requires an installation conforming to 89.336/EEC Directive (electromagnetic compatibility) 73/23/EEC Directive (low voltage) 92/42/EEC Directive (performance) 2.5) Boiler room arrangements The Multi-elec Compacte must be installed In an adequately-ventilated boiler room with ambient temperature below 30degC ... -
Page 8: Electrical Arrangements
3) ELECTRICAL ARRANGEMENTS 3.1) Control panel arrangement Photograph of control panel with identification of components... -
Page 9: Control Circuitry
External Controls... -
Page 10: Electrical Power Circuitry
3.3) Electrical power circuitry... -
Page 11: Fuse And Overload Protection
3.4) Fuse and overload protection Fuse ratings and type Fuses F1 – F2 cartridge F1 – 1A type aM, cartridge F2 – 1A type Fuses F3 – F4 cartridge F3 & F4 type 10 x 38 to 22 x 58 Amperage requirement 415V 3ph 36kW... -
Page 13: Operation Of The Digital Controller
3.5) Operation of the digital controller Sous Tension – Alive Step 1 Limit thermostat 110degC Arret – stop Marche – run Step 2 Secure Factory settings – Step 1 – 80degC; Step 2 – 75degC 1 – digital numbers or message 2 –... -
Page 14: Alarm Signals
3.6) Alarm Signals On Alarm, light (7) shows and the following messages appear on (1) < PFO > Lock-out or power cut < HA > High temperature lock-out < LA > Low temperature alarm 4) DELIVERY and OFF-LOADING It is recommended that the COMPACTE electric boiler is transported and, if necessary, stored on the pallet on which it is delivered from the factory. -
Page 15: Maintenance
MAINTENANCE Effective maintenance must aim at preventing :- a). a reduction in the movement of water circulation through the boiler - this can result in the formation of sediment or limescale on the boiler immersion heater elements b). pockets of high temperature water across the boiler immersion heater elements –... -
Page 16: Guarantee
6). GUARANTEE... -
Page 17: Identification Of Spare Parts
7). IDENTIFICATION OF SPARE PARTS Controller XT120C (5 COPU) 583042 Flow sensor PTC 583024 240V lamp bulb 587215 12kW immersion heater 2412 Limit thermostat 581104 Water flow switch 480230 8). FAULT DETECTION Before making any physical check, switch off the power FAULT CHECK The ‘alive’...
