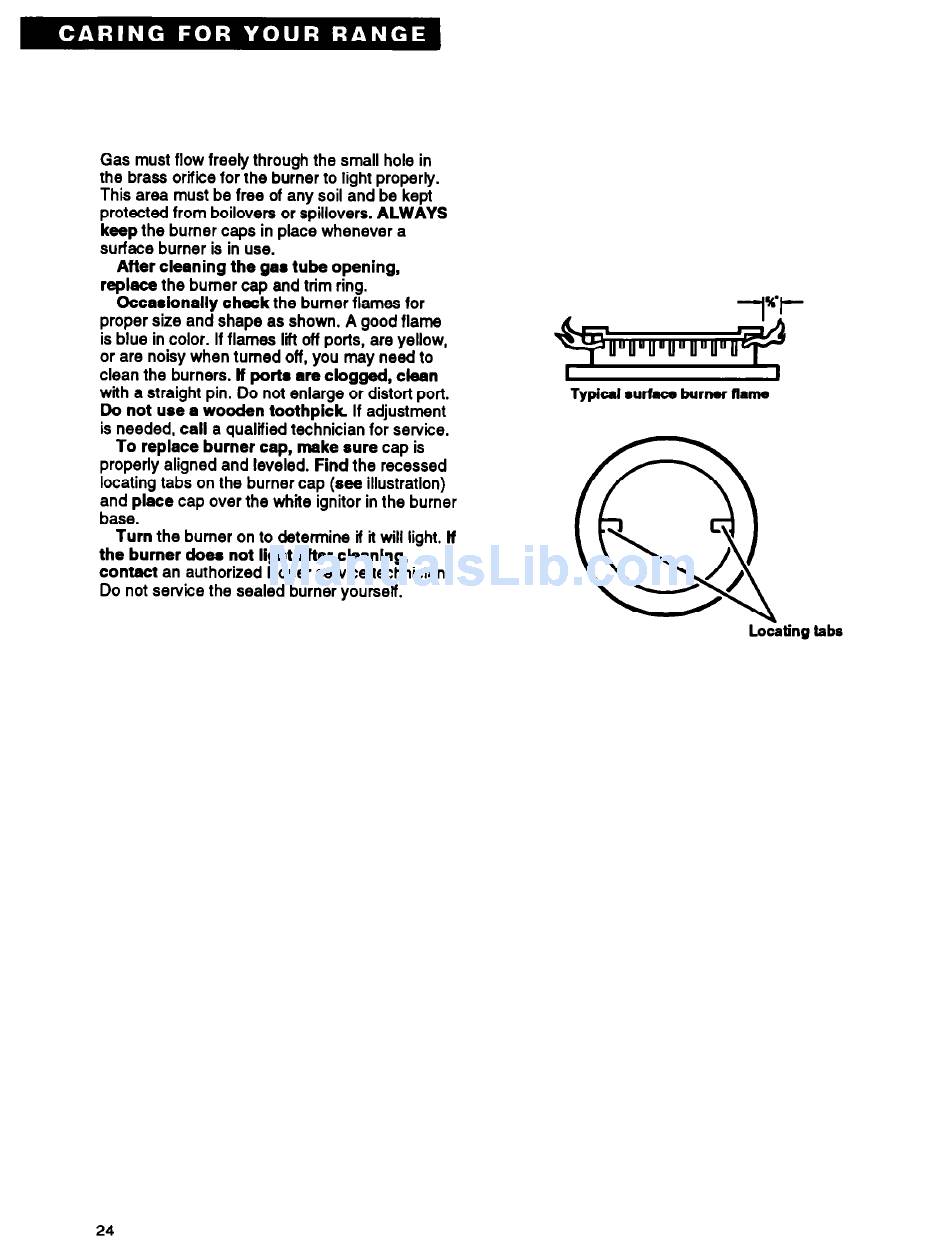

Gas must flow freely through the small hole in
the brass orifice for the burner to light properly.
This area must be free of any soil and be kept
protected from boilovers or spillovers. ALWAYS
keep the burner caps in place whenever a
surface burner is in use.
After cleaning the gas tube opening,
replace the burner cap and trim ring.
Occasionally check the burner flames for
proper size and shape as shown. A good flame
is blue in color. If flames lift off ports, are yellow,
or are noisy when turned off, you may need to
clean the burners. If ports are clogged, clean
with a straight pin. Do not enlarge or distort port.
Do not use a wooden toothpick If adjustment
is needed, call a qualified technician for service.
To replace burner cap, make sure cap is
properly aligned and leveled. Find the recessed
locating tabs on the burner cap (see illustration)
and place cap over the white ignitor in the burner
base.
Turn the burner on to determine if it will light. If
the burner does not light after cleaning,
contact an authorized Roper service technician.
Do not service the sealed burner yourself.
Typiul surface burnor flame
