GFI System SYNESTHESIA Manual page 24

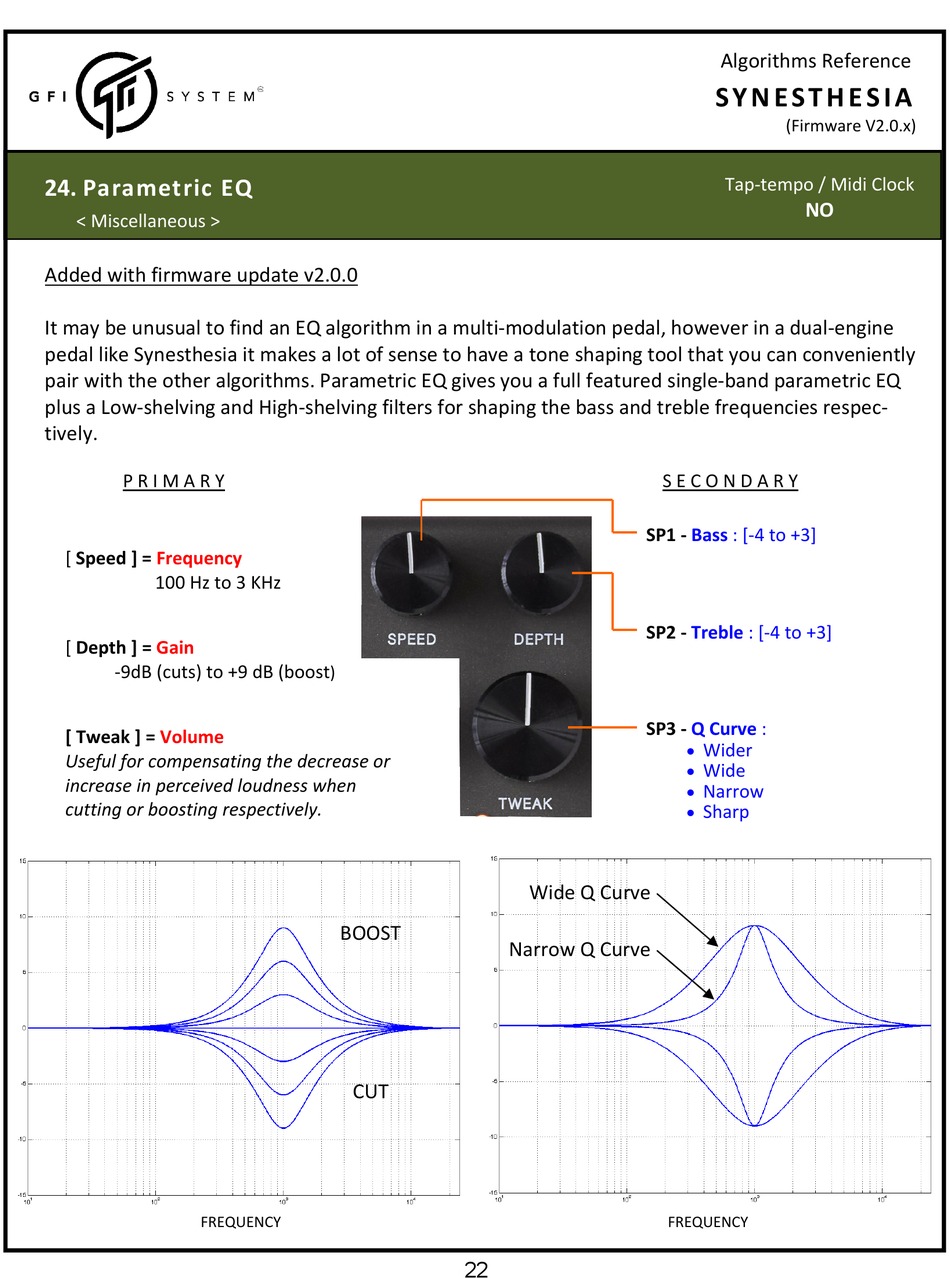

24. Parametric EQ
< Miscellaneous >
Added with firmware update v2.0.0
It may be unusual to find an EQ algorithm in a multi‐modulation pedal, however in a dual‐engine
pedal like Synesthesia it makes a lot of sense to have a tone shaping tool that you can conveniently
pair with the other algorithms. Parametric EQ gives you a full featured single‐band parametric EQ
plus a Low‐shelving and High‐shelving filters for shaping the bass and treble frequencies respec‐
tively.
P R I M A R Y
[ Speed ] = Frequency
100 Hz to 3 KHz
[ Depth ] = Gain
‐9dB (cuts) to +9 dB (boost
[ Tweak ] = Volume
Useful for compensating the decrease or
increase in perceived loudness when
cutting or boosting respectively.
FREQUENCY
)
BOOST
Narrow Q Curve
CUT
22
S E C O N D A R Y
SP1 ‐ Bass : [‐4 to +3]
SP2 ‐ Treble : [‐4 to +3]
SP3 ‐ Q Curve :

Wider

Wide

Narrow

Sharp
Wide Q Curve
FREQUENCY
Algorithms Reference
S Y N E S T H E S I A
(Firmware V2.0.x)
Tap‐tempo / Midi Clock
NO
