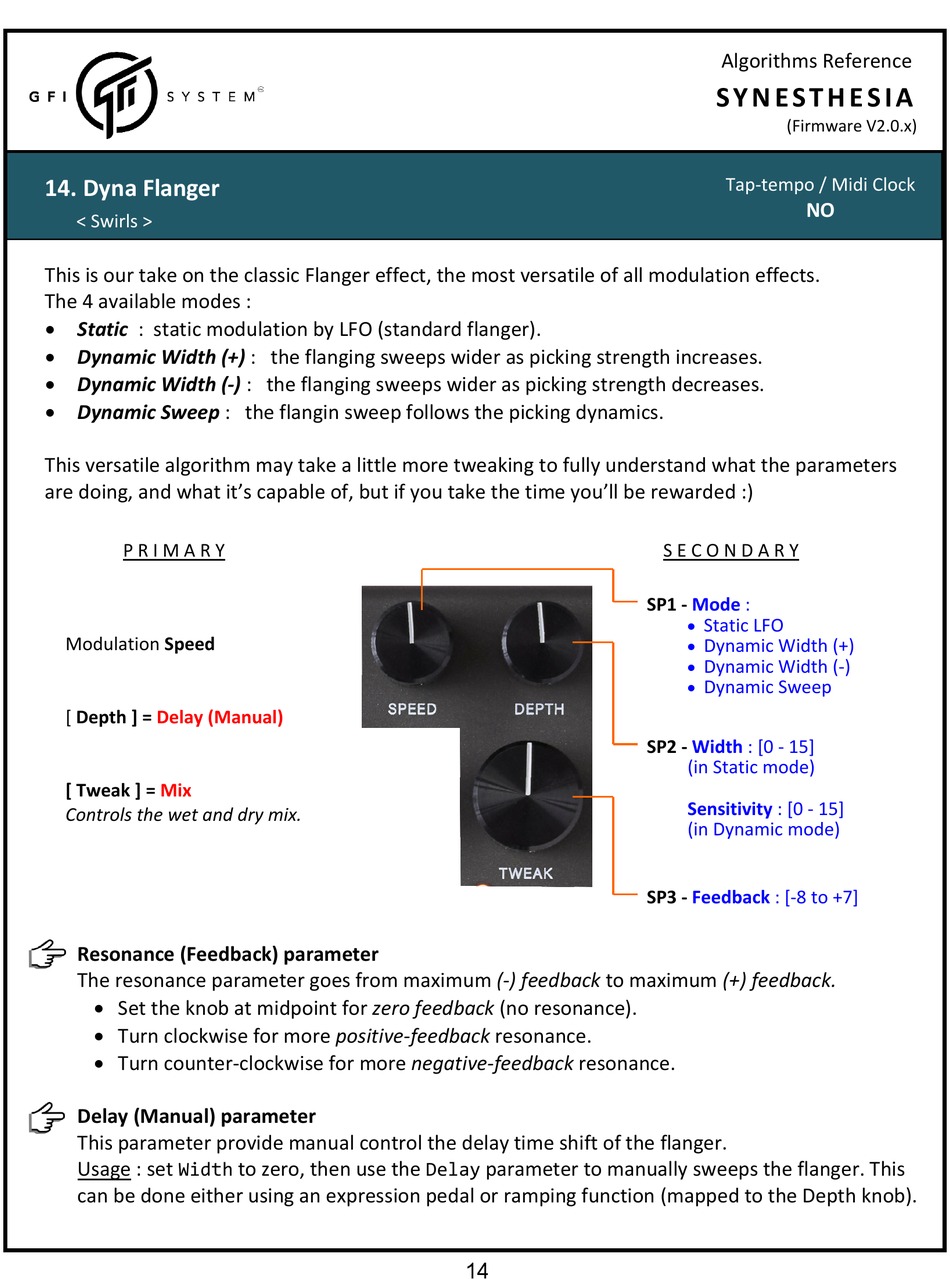

GFI System SYNESTHESIA Manual page 14

14. Dyna Flanger
< Swirls >
This is our take on the classic Flanger effect, the most versatile of all modulation effects.
The 4 available modes :
 Static : static modulation by LFO (standard flanger).
 Dynamic Width (+) : the flanging sweeps wider as picking strength increases.
 Dynamic Width (‐) : the flanging sweeps wider as picking strength decreases.
 Dynamic Sweep : the flangin sweep follows the picking dynamics.
This versatile algorithm may take a little more tweaking to fully understand what the parameters
are doing, and what it's capable of, but if you take the time you'll be rewarded :)
P R I M A R Y
Modulation Speed
[ Depth ] = Delay (Manual)
[ Tweak ] = Mix
Controls the wet and dry mix.
Resonance (Feedback) parameter
The resonance parameter goes from maximum (‐) feedback to maximum (+) feedback.
 Set the knob at midpoint for zero feedback (no resonance).
 Turn clockwise for more positive‐feedback resonance.
 Turn counter‐clockwise for more negative‐feedback resonance.
Delay (Manual) parameter
This parameter provide manual control the delay time shift of the flanger.
Usage : set
Width
can be done either using an expression pedal or ramping function (mapped to the Depth knob).
to zero, then use the parameter to manually sweeps the flanger. This
Delay
14
Algorithms Reference
S Y N E S T H E S I A
(Firmware V2.0.x)
Tap‐tempo / Midi Clock
NO
S E C O N D A R Y
SP1 ‐ Mode :

Static LFO

Dynamic Width (+)

Dynamic Width (‐)

Dynamic Sweep
SP2 ‐ Width : [0 ‐ 15]
(in Static mode)
Sensitivity : [0 ‐ 15]
(in Dynamic mode)
SP3 ‐ Feedback : [‐8 to +7]
