Gronomics REGB 18-34 Assembly Instruction

1
Parts Identification
Stack matching pieces in piles. Using the parts list, locate
and count the individual pieces and verify that you have
received the correct number of pieces.
If any pieces are missing or replacement parts are required,
contact Gronomics at 1-855-299-6727.
NOTE: It is recommended to place a protective layer
between the ground and the pieces during assembly. This
will help prevent damage to the pieces.
Western Red Cedar will turn a weathered grey if left unfinished. Although no finish is required for cedar when used out-
doors, a natural oil finish applied regularly will help maintain the beauty and minimize cracking and drying. It is recom-
mended to use Gronomics Garden Bed Oil (Item# GBO-1Q), a non-toxic, food safe finish that is very easy to apply.
Apply oil when air and wind temperatures are between 50-90 degrees. Avoid applying in direct sunlight.
ITEM QTY.
1 4
2 2
3 2 R3100, R3100L
4 4
5 2
4
6
7 4
8 1
2
Side Rail Assembly
Stand two 4" x 4" x 32" corner posts (Item 1) upright with slots
facing you and slots facing each corner post.
Locate a 31" x 5 1/2" side rail w/cleat (Item 2). With cleat located
at the bottom and facing you, install side rail w/cleat into the slots
and slide down to the bottom of the slots.
Repeat procedure for the two remaining 4" x 4" x 32" corner posts
and 31" x 5-1/2" side rail w/cleat.
(Soil depth option: Cleats located as shown will provide a soil
depth of approximately 9". Reverse side rail w/cleat installation,
cleats located at top, if a soil depth of approximately 6" is
desired).
Packaged & Inspected by:
WWW.gronomics.com
Product Care & Maintenance
Parts List
PART # DESCRIPTION
3200E Corner Post, 4" x 4" x 32" w/2 Dovetailed Sides 12-3/4" long
R3102 Side Rail w/Cleat, 31" x 5-1/2" x 7/8"
Side Rail (one w/Logo), 31" x 5-1/2" x 7/8"
R1450 Side Rail, 14-1/2" x 5-1/2" x 7/8"
Corner Notched & Ripped Bottom Board, 15-3/8" x 4-1/2" x 1"
1538NR
1538 Bottom Board, 15-3/8" x 5-1/2" x 1"
4545 Post Cap, 4-5/8" x 4-5/8" x 1-1/2"
FL3652 Fabric Liner 36" x 52"
East Bethel, MN USA

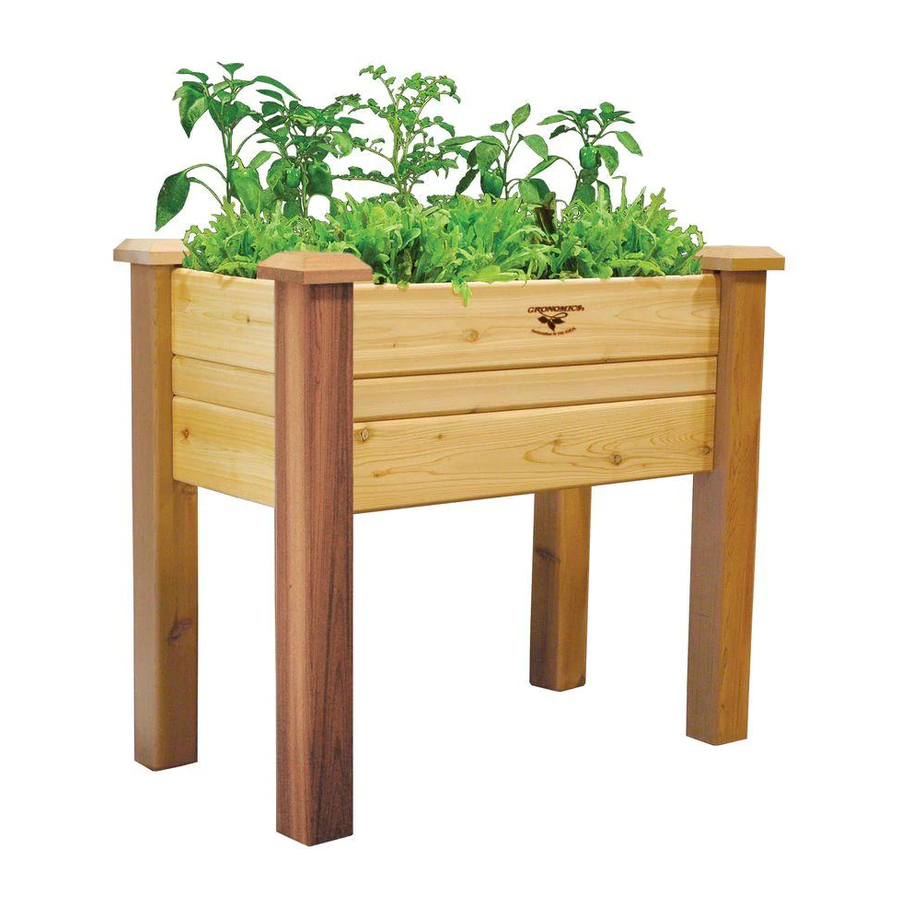

Rustic Elevated Garden Bed
(18" x 34") Assembly Instruction
1
3
2
1
Date:
Item #: REGB 18-34
6
4
5
7
2
1
Cleat
Continued
763-753-7374
8
