Gronomics Rustic Elevated Garden Bed Assembly Instructions

1
Parts Identifi cation
Stack matching pieces in piles. Using the parts
list, locate and count the individual pieces and
verify that you have received the correct number
of pieces.
If any pieces are missing or replacement parts are
required, contact Gronomics at 1-855-299-6727.
NOTE:Ground preparation is optional, however
we recommend leveling area under frame of
product, or place product directly on a flat level
surface before filling with soil.
ITEM QTY.
1 4
2 2
3 2
4 4
5 2
6 6
7 4
8 1
2

Side Rail Assembly

Stand two 4" x 4" X 30" corner posts (Item 1) upright with slots facing
you and slots facing each corner post.
Locate a 45" x 5-1/2" side rail w/cleat (Item 2). With cleat located at the
bottom and facing you, install side rail w/cleat into the slots and slide
down to the bottom of the slots.
Repeat procedure for the two remaining corner posts and 45" x 5-1/2"
side rail w/cleat.
(Soil depth option: Cleats located as shown will provide
a soil depth of approximately 9". Reverse side rail w/
cleat installation, cleats located at top, if a soil depth of
approximately 6" is desired).
Packaged & Inspected by:
1
Parts List
DESCRIPTION
PART #
3200E Corner Post, 4" x 4" x 32" w/12-3/4" Dovetail Depth
Side Rail w/Cleat, 45" x 5-1/2" x 1"
R4502
Side Rail (one w/Logo), 45" x 5-1/2" x 1"
R4500, R4500L
Side Rail, 31" x 5-1/2" x 1"
R3100
3178N Corner Notched Bottom Board, 31-7/8" x 5-1/2" x 1
Bottom Board, 31-7/8" x 5-1/2" x 1"
3178
4545 Post Cap, 4" x 4" x 1-1/2"
FL3652
Fabric Liner, 36" x 52"
East Bethel, MN USA

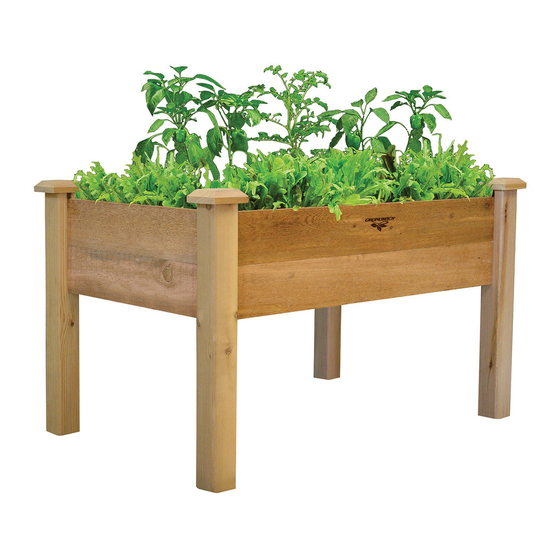

Rustic Elevated Garden Bed
(34" x 48") Assembly Instruction
2
3
4
"
2
1
Date:
Item #: REGB 34-48
6
7
5

Product Care and Maintenance

Western Red Cedar will turn a weathered
grey if left unfinished. Although no finish is
required for cedar when used outdoors, a
natural oil finish applied regularly will help
maintain the beauty aned minimize
cracking and drying. It is recommended to
use Gronomics Garden Bed Oil (Item#
GBO-1Q), a non-toxic, food safe finish that
is very easy to apply.
Apply oil when air and wind temperatures
are between 50-90 degrees. Avoid applying
in direct sunlight.
1
Cleat
Continued
763-753-7374
8
