Gronomics PB 18-48 Assembly Instruction

1
Parts Identifi cation
Stack matching pieces in piles. Using the parts list, locate and
count the individual pieces and verify that you have received
the correct number of pieces.
If any pieces are missing or replacement parts are
required, contact Gronomics at 1-855-299-6727.
NOTE: Ground preparation is optional, however we
recommend leveling area under frame of product, or place
product directly on a flat level surface before filling with soil.
ITEM QTY.
1 4
2 2
3 1
4 1
5 2
6 2
7 4
8 2
9 6
10 4
11 1
2
Side Rail Assembly
Stand two 4" x 4" x 19" corner posts (Item 1) upright with slots facing each post and slots
facing you.
Locate a 14-1/2" x 5-1/2" side rail w/cleat (Item 2). With cleat located at the bottom and
facing you, install side rail w/cleat into the slots and slide down to the bottom of the slots.
Repeat procedure for the two remaining 4" x 4" x 19" corner posts and 14-1/2" x 5-1/2"
side rail w/cleat.
(Soil depth option: Cleats located as shown will provide a soil depth of
approximately 10". Reverse side rail w/cleat installation, cleats located at
top, if a soil depth of approximately 6" is desired).
Packaged & Inspected by:
www.gronomics.com
Parts List
Description
PART #
1900P
Corner Post, 4" x 4" x 19"W/ 2 DOVETAILED SIDES12-3/4"
4502T
Side Rail w/Cleat, 45" x 5-1/2" x 7/8"
4500TL
Side Rail w/Logo, 45" x 5-1/2" x 7/8"
4500T
Side Rail, 45" x 5-1/2" x 7/8"
4501T
Narrow Center Side Rail, 45-1/2" x 2-1/2" x 7/8"
1451T
Narrow Center Side Rail, 14-1/2" x 2-1/2" x 7/8"
1450T
Side Rail, 14-1/2" x 5-1/2" x 7/8"
1538N
Corner Notched Bottom Board, 15" x 5-3/8" x 1"
1538
Bottom Board, 15-3/8" x 5-1/2" x 1"
4545 Post Cap, 4-5/8" x 4-5/8" x 1-1/2"
FL3652 Fabric Liner, 36"x 52"

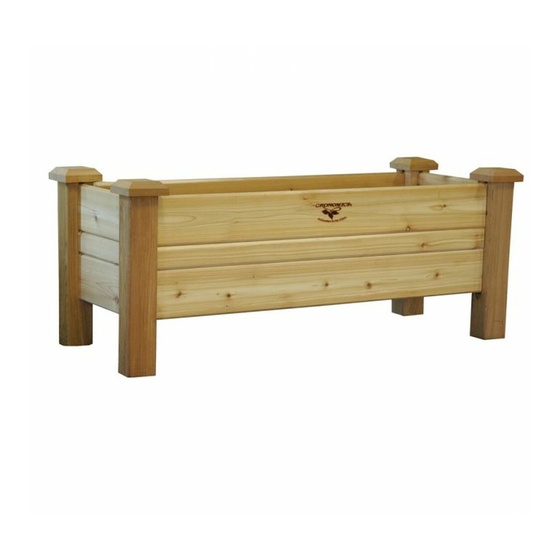

Planter Box
Assembly Instruction
2
1
East Bethel, MN USA
(18" x 48")
3
4 5
7
6 8
Product Care and Maintenance
Western Red Cedar will turn a
weathered grey if left unfinished.
Although no finish is required for
cedar when used outdoors, a
natural oil finish applied regularly
will help maintain the beauty and
minimize cracking and drying. It is
recommended to use Gronomics
Garden Bed Oil
non-toxic, food safe finish that is
very easy to apply. Apply Oil when
air and wind temperatures are
between 50-90degrees. Avoid
applying in direct sunlight.
1
2
Cleat
Date:
Item #: PB 18-48
Item #: PB 18-48S
9
10 10
11 11
, a
(Item # GBO-1Q)
1
Continued
763-753-7374
