Gronomics EGB 24-48 Assembly Instruction

1
Parts Identifi cation
Stack matching pieces in piles. Using the parts list, locate
and count the individual pieces and verify that you have
received the correct number of pieces.
If any pieces are missing or replacement parts
are required, contact Gronomics at
1-855-299-6727.
NOTE: Ground preparation is optional, however we
recommend leveling area under frame of product, or
place product directly on a flat level surface before
filling with soil.
ITEM QTY.
1 1
2 4
3 2
4 6
5 4
6 2
7 2
8 4
2
Side Rail Assembly
Stand two 4" x 4" x 30" corner posts (Item 8) upright with slots facing you
and slots facing each corner post.
Locate a 45" x 5 1/2 " side rail w/cleat (Item 7). With cleat located at the
bottom and facing you, install side rail w/cleat into the slots and slide down
to the bottom of the slots.
Repeat procedure for the two remaining corner posts and 45" x 5-1/2 " side
rail w/cleat.
(Soil depth option: Cleats located as shown will provide a soil depth of
approximately 8". Reverse side rail w/cleat installation, cleats located at top,
if a soil depth of approximately 6" is desired).
Packaged & Inspected by:
www.gronomics.com
Parts List
DESCRIPTION
PART #
FL3652
Fabric Liner, 36" x 52"
4545
Post Cap, 4-5/8" x 4-5/8" x 1-1/2"
2178N Corner Notched Bottom Board, 21-7/8" x 5-1/2" x 1"
2178
Bottom Board, 21-7/8" x 5-1/2" x 1"
2100T Side Rail, 21" x 5-1/2" x 7/8"
4500T 4500TL Side Rail (one w/Logo), 45" x 5-1/2" x 7/8"
4502T Side Rail w/Cleat, 45" x 5-1/2" x 7/8"
3200E Corner Post, 4" x 4" x 32" w/2 Dovetail sides 12-3/4"

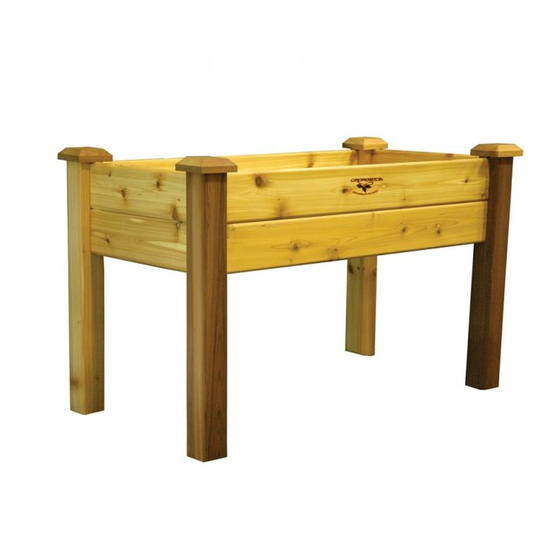

Elevated Garden Bed
Assembly Instruction
1
3
2
East Bethel, MN USA
Item #: EGB 24-48
Item #: EGB 24-48S
6
4
5
Product Care and Maintenance
Western Red Cedar will turn a
weathered grey if left unfinished.
Although no finish is required for
cedar when used outdoors, a natural
oil finish applied regularly will help
maintain the beauty and minimize
cracking and drying. It is
recommended to use Gronomics
Garden Bed Oil (Item # GBO-1Q), a
non-toxic, food safe finish that is very
easy to apply. Apply Oil when air and
wind temperatures are between
50-90degrees. Avoid applying in
direct sunlight.
7
8
Cleat
Date:
(24" x 48")
8
7
8
Continued
763-753-7374
