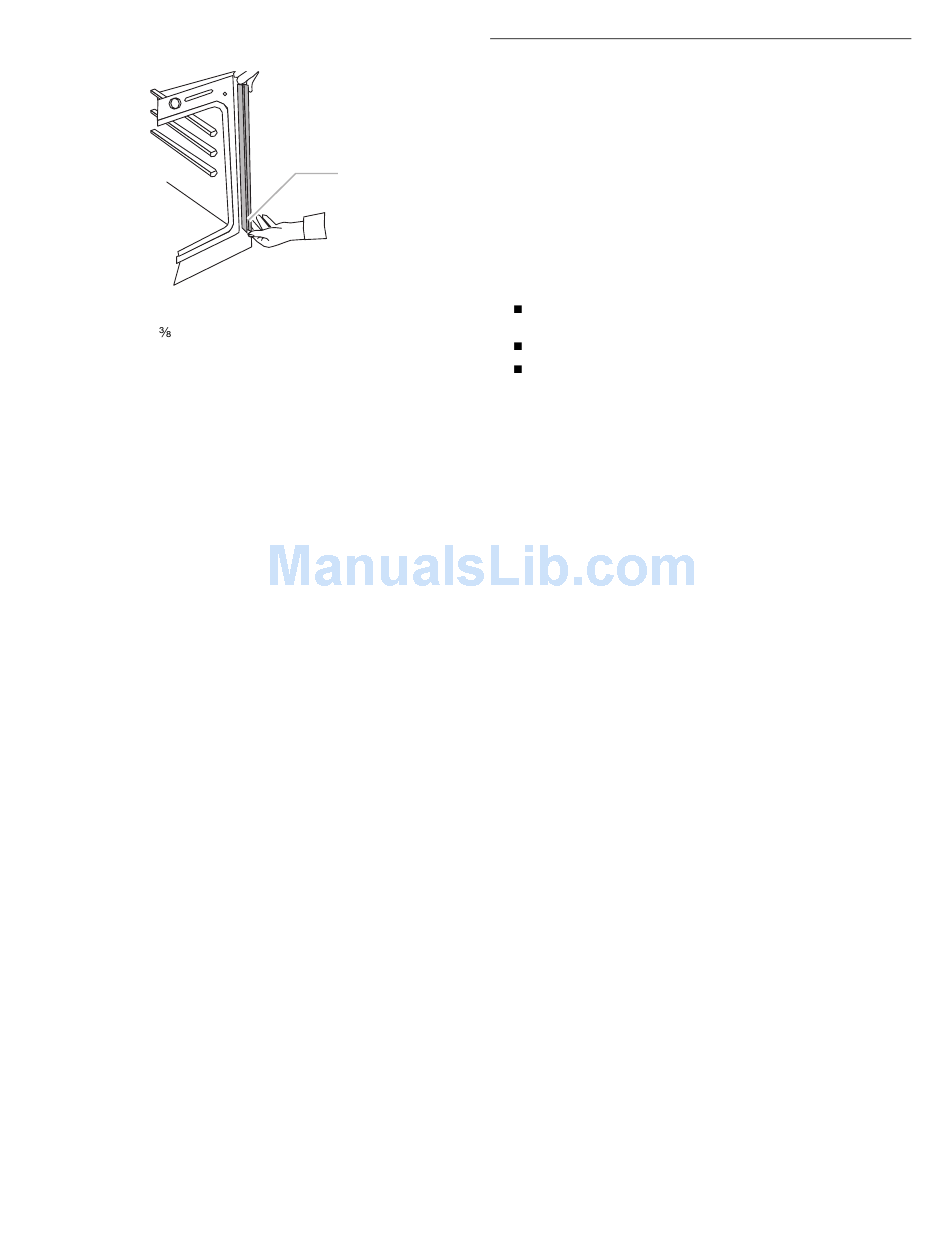

8. Push each trim piece into place at bottom of trim.
A. Push trim into place and replace screw.
9. Use the 8-18 x
" screws, located in the screw bag assembly,
to attach each trim piece to oven.
10. Replace oven racks.
11. Replace oven door by inserting ends of hinges into hinge slots
in the oven frame.
12. Push hinges in as far as they will go and open the oven door.
You should feel the oven door drop into place.
13. Rotate both hinge latches back to the locked position.
14. Check that door is free to open and close. If it is not, repeat
the removal and installation procedures. See "Prepare Built-In
Oven" section.
15. Repeat for lower oven door.
16. Reconnect power.
17. Display panel will light briefly, and "PF" should appear in the
display.
18. If display panel does not light, please reference the
"Assistance or Service" section of the Use and Care Guide or
contact the dealer from whom you purchased your oven.
8
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven use and cleaning, read the Use and Care Guide.
A
Check Operation of Single Oven
1. Turn power on. "PF" should appear in the display.
2. Press CUSTOM BROIL. "BROIL" will appear in the display.
3. Press START. Make sure the oven door is closed and the "ON"
light is shown in the display.
If oven(s) does not operate, check the following:
4. When oven has been on for 5 minutes, feel for heat.
If you do not feel heat or if an "F" followed by a number
appears in the display, turn off the oven and contact a
qualified technician.
5. Press OFF/CANCEL.
Check Operation of Double Oven
1. Turn power on. "PF" should appear in the display.
2. Press UPPER OVEN or LOWER OVEN, to select the oven you
are testing.
3. Repeat "Check Operation of Single Oven" steps 2-5.
To set the clock and other oven functions, refer to the Use and
Care Guide.
If you need Assistance or Service:
Please reference the "Assistance or Service" section of the Use
and Care Guide or contact the dealer from whom you purchased
your built-in oven.

Complete Installation

Household fuse is intact and tight; or circuit breaker has
not tripped.
Electrical supply is connected.
See "Troubleshooting" section in the Use and Care Guide.
