Summary of Contents for BMR Power Baby 1

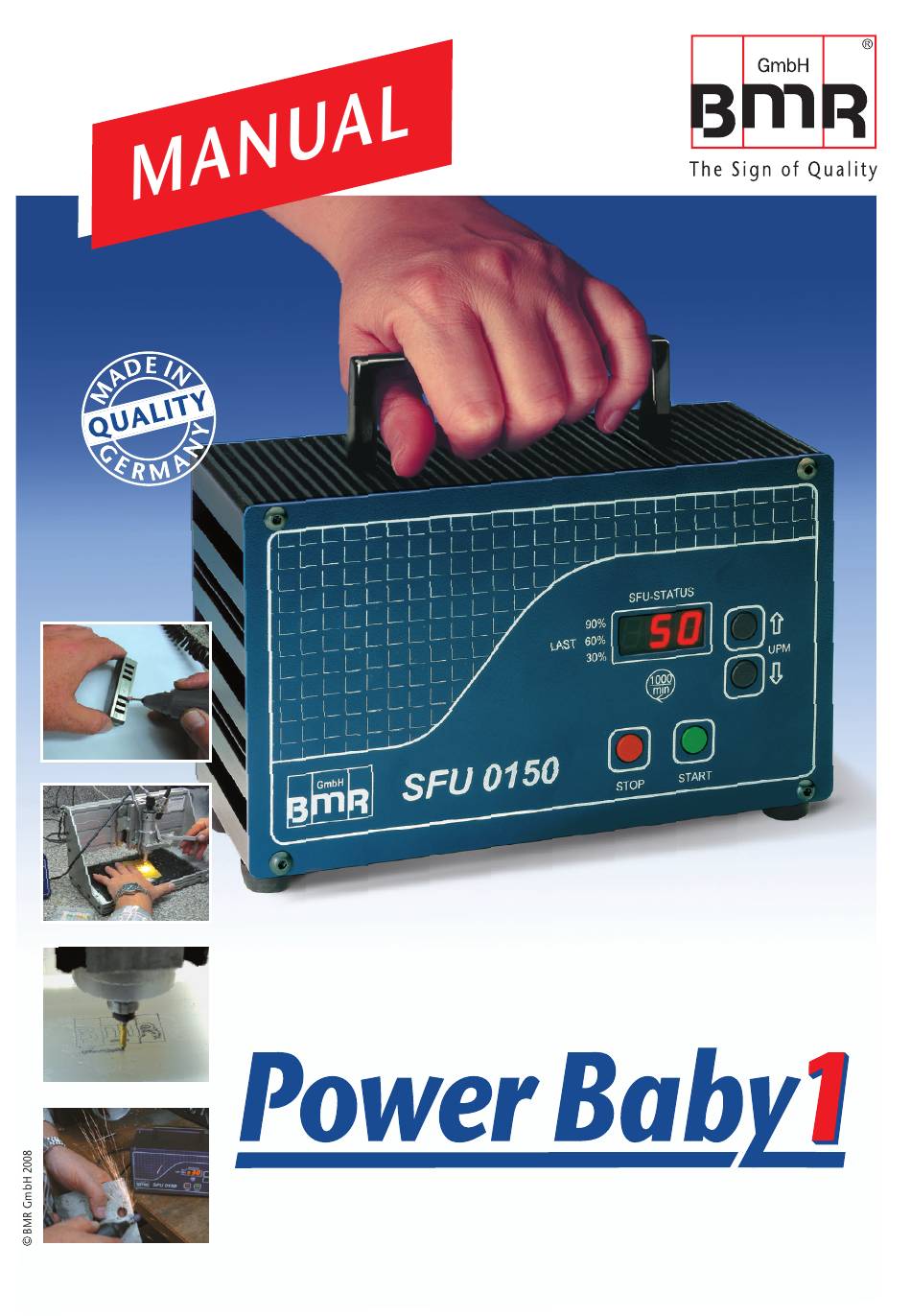

- Page 1 Power Packet in a small Size: Handheld High Frequency Converter SFU 0150...
- Page 2 SFU 0150 ongratulation for purchasing a BMR-GmbH product. We thank you for the decision for choosing a BMR-GmbH device and wish you much success. Please read this manual carefully before the first use Version 06.April.2009...
-
Page 3: Table Of Contents
Content Introduction Description and Features Technical Data Safety Precautions and Warnings Connections, Plugs and Pinouts 5.1 Remote Control Connector 5.2 Spindle Connector 5.3 Mains 5.4 Mains Switch and Fuse Functions, Setup, Operation 6.1 Front Panel 6.2 Setup of Rotational Speed 6.3 Starting and Stopping the Frequency Converter 6.4 Setup of Direction of Rotation 6.5 Operation... -
Page 4: Introduction
SFU 0150 Introduction epending on its construction, the speed of a three-phase A.C. motor is directly dependent on the number of poles and the frequency of the network. In a 3ph 380V/50Hz network, with a 2-pole motor, the rated speed would be 50 U/s * 60 = 3000 Upm. With D.C. -
Page 5: Description And Features
Description and Features For the operation of A.C. spindles. The high frequency converter SFU 0150 allows speed frequencies up to 50,000rpm with 2-pole A.C. spindles. Maximum High output power is (150VA) in a compact design. The core of the SFU 0150 is the Digital Signal Processor (DSP) which generates all output signals and captures all input signals. -
Page 6: Technical Data
SFU 0150 Technical Data Mains connection 230V, 50Hz, 1PH / 115V, 60Hz, 1PH as option Mains Switch ON/OFF Switch in combination with a resettable thermo protection switch as mains fuse 1A/250V Fuse Output Power 150 VA (max 5 min) Spindle Connection 3 prong U, V;... -
Page 7: Safety Precautions And Warnings
Safety Precautions and Warnings This device produces dangerous electrical voltages and is used for the operation of dangerous moving mechanical parts. For this reason, only professionally trained and qualified personnel should be allowed to install and work with this device! Any maintenance or repair work on the device must only be carried out when the mains supply plug has been disconnected! Before the first activation can be carried out, it should be established... -
Page 8: Connections, Plugs And Pinouts
SFU 0150 Connections, Plugs and Pinouts Remote Control On/Off Switch in combination Connector with a resettable fuse Spindle Connector ATTENTION: Please do not connect any external voltages to the remote control pins! -
Page 9: Remote Control Connector
Pin 3 = Pin 4 = Pin 5 = to FSW, B.M.R Footcontroler or contact Operation with footswitch = ON/OFF. BMR vario footcontroler = ON-OFF- Variable rotational Speed. Galvanically isolated contact = Remote Control by a external PLC Spindle Connector... -
Page 10: Functions, Setup, Operation
Functions, Setup and Operation 4 Possibilities for Operation: Manually with the buttons on the front panel Operation with footswitch = ON/OFF BMR Vario foot controler = ON / variable rot. speed / OFF Galvanically isolated contact = remote control ATTENTION:... -
Page 11: Setup Of Rotational Speed
Setup of Rotational Speed The rotational speed of a connected spindle or the frequency of the output voltage at the spindle terminals can be set up in several ways. Preselection manually via rpm buttons on the front panel The needed speed of rotation can be adjusted with the buttons on the front panel and is displayed on 3 digits on the LED-Display. -
Page 12: Setup Of Direction Of Rotation
SFU 0150 Setup of direction of rotation The direction of rotation may be changed before the start. To achieve this, the push buttons STOP and START have to be actuated simultaneously for about 5 sec (press Stop first, then Start) In this configuration mode it is possible to change the direction between clockwise (displayed: rE) and counterclockwise (displayed: Li) with the help of the RPM push buttons. -
Page 13: Safety Functions
Safety Functions A controlled spindle stop according to the preset acceleration data is carried out because of the events listed below. Converter switch-off, if maximum power consumption is exceeded constantly. In this case the thermofuse with the ON-OFF switch is triggered. Stop because of exceeding the max. -
Page 14: Dimensions Sfu0150
SFU 0150 Dimensions SFU 0150 Subject to technical changes. Edition: April 12, 2008 ATTENTION: Old electric and electronic devices must not be placed into the domestic waste but have to be disposed separately! -
Page 15: Eg-Declaration Of Conformity
EG Declaration of Conformity Manufacturer: BMR GmbH Unterreichenbacher Str. 1 90455 Nuernberg SFU 0150 Product: The above mentioned products comply with the regulations of the following European guidelines: 89/336/EWG approximation of legal regulations on EMC" The adherence to the above mentioned guidelines requires an installation into the total unit according to the EMC. -
Page 16: General Hints
Our common hints can give only a rough guideline because it is not possible for BMR to deal with every specific situation. The compliance with the limits of EMC demanded by law is the responsibility of the manufacturer of the unit or machine. -
Page 17: Warranty
Warranty claims have to be sent to us in written form. The customer has to pay the costs to send the defective device back to BMR within the time of warranty. If this is not complied with or if we detect an external intrusion into our control unit, we withdraw our duty of warranty. - Page 18 BMR GmbH was founded in 1978. We develop, construct and manufacture electronic devices and electronic drive units. Nearly all the steps of the manufacturing process are carried out within our company. The development department designs all our printed circuit boards first in a schematic form and then as a layout.
- Page 19 Our present product profile: High frequency converters for industrial use Drive units for Electroluminescence displays Intelligent lighting controls Control units for domestic appliances Acoustic test units Motor controls Accumulator charger Time controls, for example grease controls used in automotive applications Development of oem controls Manufacturing of electronic devices using wire-through and surface mount technique...
- Page 20 "Made in Germany" is the synonym for precision, reliability and innovation. BMR GmbH feels commited to these values. With two decades of experience in the sector of developing, constructing and manufacturing electronic devices and controls this was and still is the prescription for our success.
