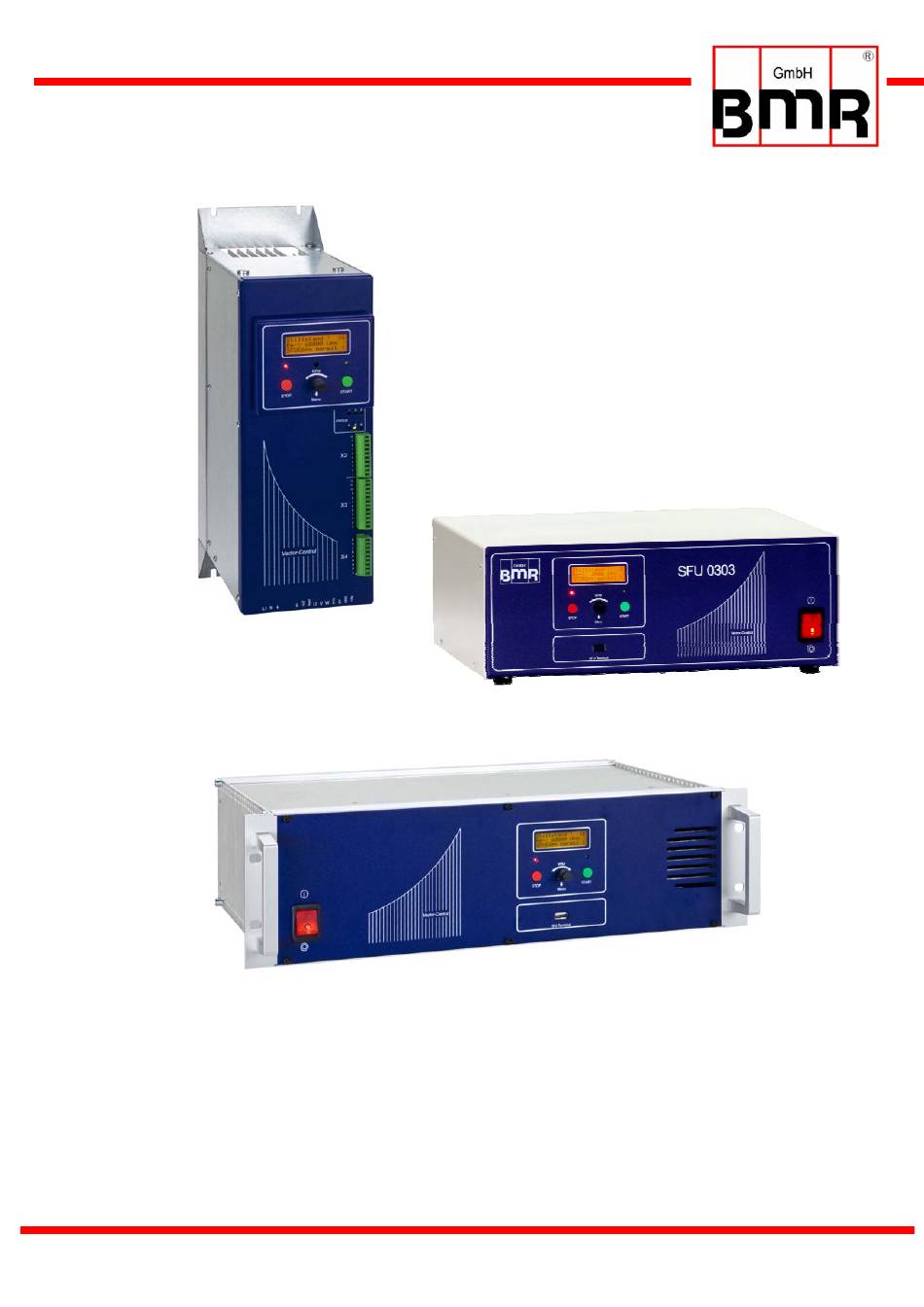

- Page 1 Version Desktop Version 19" Version Frequency Converter SFU-0303...
-
Page 2: Table Of Contents
SFU-0303 M a n u a l Content Introduction Description and Features Block Diagram Technical Data Version SSE Version 19" and Desktop Safety Precautions and Warnings Connections, Interfaces and Pinout Version SSE: Digital and Analogue Inputs X2 Version SSE: Digital und Analogue Outputs X3 Version SSE: Spindel Interface X4 Version SSE: Mains Connector, Spindle Connector Version 19"... -
Page 3: Introduction
SFU-0303 M a n u a l Introduction Due to its construction, the rotational speed of a 3-phase AC motor is directly dependent on the number of poles and the frequency of the network. In case of a 3PH 50Hz network and a 2-pole motor, the nominal speed would be 50 rps * 60 = 3000 rpm. - Page 4 SFU-0303 M a n u a l Several case options for cabinet mounting (SSE) , 19" rack style and desktop, or special designs on request User friendly Screw-plug connector system for power-, spindle- and I/O connectors. Wide range of operating voltage 115V-230V Automatic deceleration of the spindle down to standstill in case of mains failiure by "Back Energy"...
-
Page 5: Description And Features
SFU-0303 M a n u a l Description and Features • Operation of Asynchronous AC und BLDC Motors • The high frequency converter SFU-0303 makes possible rotational speeds with 2pole AC-Motors up to 500.000rpm and with BLDC-Motors up to 100.000rpm •... -
Page 6: Block Diagram
SFU-0303 M a n u a l 3. Block diagram picture 1 - 6 -... -
Page 7: Technical Data
SFU-0303 M a n u a l 4. Technical data 4.1 Version SSE Mains connection 115V, 60Hz, 1PH 230V, 50Hz, 1PH Output power Max 2 kVA Max 3,6 kVA 10-polig: PE,U,V,W, PTC, FP, SGND Motor connection pluggable screw clamps 4mm Output voltage 3* 110V 3* 220V... -
Page 8: Version 19" And Desktop
SFU-0303 M a n u a l 4.2 Version 19" und Desktop Mains connection 115V, 60Hz, 1PH 230V, 50Hz, 1PH Output power Max 2 kVA Max 3,6 kVA 9-polig: U,V,W, PTC, FP, SGND 2xPE, Motor connection screw clamps 4mm Output voltage 3* 110V 3* 220V Output current / power... -
Page 9: Safety Precautions And Warnings
SFU-0303 M a n u a l 5. Safety-Precautions and Warnings • This device produces dangerous electrical voltages and is used for the operation of dangerous moving mechanical parts. For this reason, only professionally trained and qualified personnel should be allowed to install and repair this device! •... -
Page 10: Version Sse: Digital And Analogue Inputs X2
SFU-0303 M a n u a l (10 pin Pluggable screw terminal) 6.1 Version SSE: Digital and Analogue Input X2 Picture 2 Description Direction Function / default Setting switching state Digital In 1 Input "0" Stop / "1" Start Start - Stop Digital In 2 Input "0"... -
Page 11: Version Sse: Digital Und Analogue Outputs X3
SFU-0303 M a n u a l (12 pin Pluggable screw terminal ) 6.2 Version SSE: Digital and Analogue Outputs X3 Picture 3 Description Direction Function / Message / default Setting RelayCommon Common Rail Relay 1..5 Relay6 Normally closed Output Feedback signal for Power Stage Pulse Lock state Relay5 Normally closed Output Excess temperature Converter or Spindle... - Page 12 SFU-0303 M a n u a l (9 pin Pluggable screw terminal) 6.3 Spindle Interface X4 Picture 4 Description Direction Function / default Setting +12V/50mA Output Auxiliary voltage supply Spindle GND Ground reference Not connected Speed sensor input Input Input for 2/3-wire speed sensors / Hall sensor from spindle Input Temperature signal from Spindle / KTY as Option...
- Page 13 SFU-0303 M a n u a l 6.4 Mains and Spindle connection at SSE +VFP Name Direction Function +VFP Output Auxiliary voltage supply for active speed sensor 12V/50mA SGND Ground reference for signals FP, PTC Input Input for 2/3-wire speed sensors / Hall sensor Input PTC Temperature signal from Spindle / on option KTY Output...
- Page 14 SFU-0303 M a n u a l 6.5 Version 19" und Desktop: (D-Sub 25pin female) I/O Interface - Digital and Analogue In- and Outputs Description Direction Function / Message / default Setting Relay Common Common Rail for Relay contacts 14 Relay Common Relay 1 Output Normally Closed...
-
Page 15: Version Sse: Spindel Interface X4
SFU-0303 M a n u a l (D-Sub 25pin female) 6.6 Version 19" und Desktop: Spindel Interface Name Direction Function / default Setting 9 +12V/50mA Auxiliary voltage supply 10 GND Bit 0 Input automatic Spindle detection 11 Bit 0 Input automatic Spindle detection Bit 1 Input... - Page 16 SFU-0303 M a n u a l 6.7 19" Version: Mains and Spindle connection Spindle Interface I/O Interface Spindle connection Mains Connection Sicherungsautoma Automatic Fuses Back side SFU0303-19" with spindle connector clamp terminal Picture 7 Spindle Connector - 9pin clamp terminal Name Direction Function +VFP...
- Page 17 SFU-0303 M a n u a l 6.8 Desktop Version: Mains and Spindle connection The connection with mains network is carried out with an IEC connector The device is equipped with a Thermo-Automatic Fuse for each prong. They can be reset after tripping by pressing down the button The spindle connection is realized on custom order and can be realized accordingly IEC Mains connection...
-
Page 18: Usb Connection
With disconnected operating panel a connection to a PC or any control can be established with a specific BMR cable. A standard cable wont work or may harm the device. The operating panel is fixed with 2,5mm Allen screw to the SFU0303. After unfixing the operating panel can be removed. -
Page 19: Front Panel Of Sse, Desktop And 19"Version
SFU-0303 M a n u a l 7. Functions, Commissioning, Operation 7.1 Front panel SSE, Desktop and 19" Version picture 11 front panel SSE picture 12 front panel Desktop picture 13 front panel 19" version - 19 -... - Page 20 7.2 Starting of the Converter and Power Stage Pulse Lock Spindle Characteristics All converters of BMR need an information about the basic data of the spindle, such as maximum voltage, current, rotational speed, and many more. These are stored in so called "spindle characteristics".
-
Page 21: Status Led Display
SFU-0303 M a n u a l 7.3 Status LED Display Emergency Stop Run / SFU is running Overload Intermediate voltage lock Excess temperature spindle Spindle not ready SFU Ready Picture 14 Typical displays. Other combinations are possible due to status. Ready + Standstill Converter OK, Converter and Spindle... -
Page 22: Lcd-Operating Panel
SFU-0303 M a n u a l 7.4 LCD-Operating Panel Line1: - Info - Nr. of the selected characteristic Line 2: - Display of direction of rotation - Current rotational speed of SFU or duty value preset "rpm" - Current Real-Speed "rpmSP"... - Page 23 SFU-0303 M a n u a l Start and Stop In the simplest case, a connected and appropriately set up spindle can be started by pressing the Start-Button. The desired speed can be adjusted by dialing with the rotary encoder either as preset value during standstill or in Run mode.
- Page 24 SFU-0303 M a n u a l Setup-Menu: To enter the menu, the Menu-Button in the rotary encoder should be kept pressed for more than 1sec. After that and releasing the button the following menu items can be selected by dialing. •...
- Page 25 SFU-0303 M a n u a l Adjustments: Rotational speed: dialing right or left with rotary encoder pot. Current value is displayed steadily. This can be the setup value before start or the current value during run. Start/Stop: with Start/Stop button. If the operating unit is removed during the start process the converter automatically turns into stop condition.
- Page 26 SFU-0303 M a n u a l The following error displays are possible: Display Error • Pu lse block ing ! Power stage lock active • O v e r l o a d S t o p Overload stop! •...
-
Page 27: Safety Functions
SFU-0303 M a n u a l 7.6 Safety functions The below mentioned adjustments refer to settings made in SFU-Terminal The following incidents lead to a controlled braking and decelerating to standstill of the spindle according to its acceleration times defined in the spindle characteristic. •... -
Page 28: Safe Power Stage Pulse Lock According En 954-1 K3
SFU-0303 M a n u a l 7.7 Safe Power Stage Pulse Lock according EN 954-1 K3 The SFU0303 is equipped with a safe power stage pulse inhibitor circuit according Category 3. This requires that an independent circuit besides the microprocessor circuit grants that the power stage can be activated with an external signal, only. -
Page 29: Profibus
The setup of the address is carried out with RS232, a specific connection cable and SFU- Terminal. The require files including the description of the commands and gsd-files are available on the BMR website. It has the same basic setup possibilities as with the standard operating panel. - 29 -... - Page 30 M a n u a l 9. Setup, Parameterization and Configuration with SFU-Terminal The software SFU-Terminal is a tool for the configuration of BMR frequency converters of the series SFU0102….SFU0601. Moreover it offers the possibility to read out system data and to modify them.
-
Page 31: Automatic Spindle Tuning
SFU-0303 M a n u a l 10. Automatic Spindle Tuning and Calibration (Autotuning) If a motor without having a spindle characteristic has to operated with SFU0303, it can be created very simple with the help of this tool in SFU-Terminal. The spindle is connected with the converter and the converter is connected with a PC and in the menu "Tools"... - Page 32 SFU-0303 M a n u a l Example 1, normal adjustment: A 2-pole motor with a maximum rotational speed of 30.000rpm needs at this point a nominal voltage of 220V at a current of 5A . Picture 21 Example 2, weakened field, field suppression: A 2-pole motor with a maximum rotational speed of 30.000rpm needs at 20.000rpm a nominal voltage of 220V at a current of 5A .
-
Page 33: Examples For Connection
SFU-0303 M a n u a l 11. Examples of Connection 11.1 Mains and Spindle connection Mains PE +ZU Rext PTC Fp SGND +VFp Picture 23 - 33 -... - Page 34 This interface in combination with an automatic spindle detection should be used only after consultation with BMR. By assigning the four address lines the spindle characteristic can be selected by an PLC or...
-
Page 35: Emc
SFU-0303 M a n u a l The digital wiring can even be achieved with outputs of logic circuits, with a High Out level > 20V. The picture shows a configuration with passive switches in combination with the auxiliary voltage of the converter. -
Page 36: Troubleshooting
SFU-0303 M a n u a l 13. Troubleshooting Error Description Cause Fixing After power on the Input "Emergency Stop" is not +24V Signal at this input converter indicates properly or not wired at all. Not Ready and Error The converter is at excess >... - Page 37 > Verify at USB cables that it's length is not SFU-Terminal the longer than 2m Converter is not > Try to use original BMR cables, only. detected and not recognized In case of using RS232 > Use the USB-Interface at the PC together with a USB-RS232 converter.
- Page 38 > In the spindle characteristic the value of > Spindle cable is too long the start voltage has to be increased. -> contact BMR With activated spindle test, a test current is send via spindle cable to the spindle by applying a voltage at output lines.
- Page 39 > Increase value for start voltage in the spindle by applying a voltage at output spindle characteristic lines. In case that this current is too -> contact BMR low, or a wrong spindle characteristic selected, it does not match to the > Deactivate function "Spindle test"...
-
Page 40: General Hints
Our common hints can give only a rough guideline because it is not possible for BMR GmbH to cover all specific situations. The compliance with limits of EMC demanded by law is the responsibility of the manufacturer of the unit or the machine. -
Page 41: Warranty
Warranty claims have to be sent to us in written form. The customer has to pay the costs to send the defective device back to BMR within the time of warranty. If this is not complied with or if we detect an external intrusion into our device, we feel free to withdraw our duty of warranty. -
Page 42: Accessories
SFU-0303 M a n u a l 16. Accessories RS232 Cable P 2001.100012 USB Cable P 2001.100013 RS485 Cable P 2001.100014 LCD Operating Panel P 1203.100003 Mounting Bracket for the Housing P 1700.504133 Kit of pluggable Connection Clamps P 1001.100005 for X2,X3,X4, Mains and spindle connector Mounting Bracket and 2 Clamps for fixing P 1001.100006... -
Page 43: Mechanics And Dimension
SFU-0303 M a n u a l 17. Mechanic, Views and Dimension 17.1 SSE Version for cabinet mounting - 43 -... -
Page 44: 19" Version
SFU-0303 M a n u a l 17.2 19" Version - 44 -... - Page 45 SFU-0303 M a n u a l 17.3 Version Desktop - 45 -...
- Page 46 SFU-0303 M a n u a l this page is left intentionally left blank - 46 -...
- Page 47 SFU-0303 M a n u a l this page is left intentionally left blank - 47 -...
- Page 48 SFU-0303 M a n u a l Walpersdorfer Straße 38 D 91126 Schwabach Tel.: +49 (0)9122 63148-0 Fax.: +49 (0)9122 63148-29 e-mail: Info@bmr-gmbh.de Internet: www.bmr-gmbh.de Subject to technical alterations. Issue :2014-10-09 - 48 -...
