BMR SFU 0303/4 Manual

High frequency converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

1
...when it comes to quality!
BMR GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFU 0303/4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMR SFU 0303/4

Summary of Contents for BMR SFU 0303/4

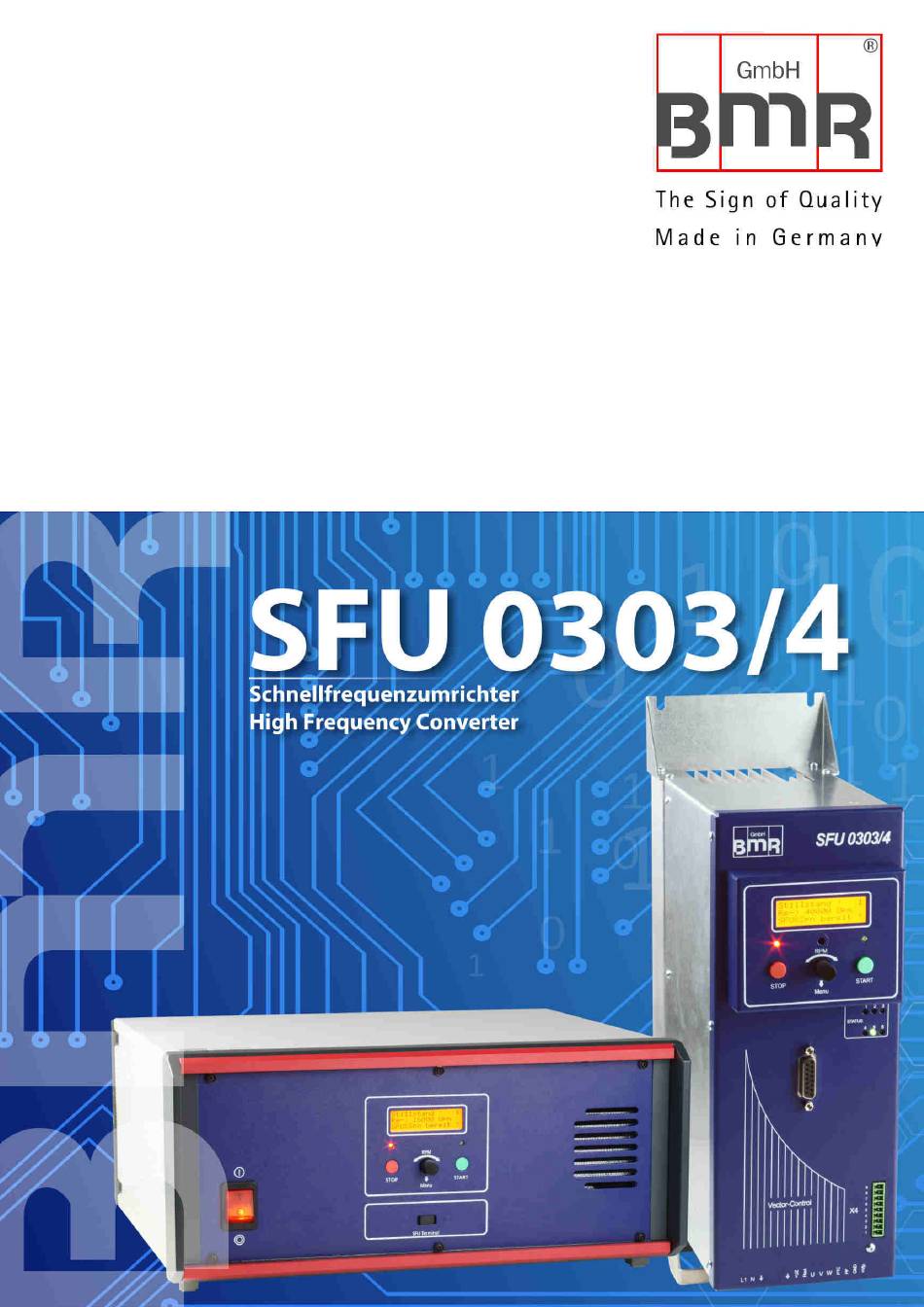

  • Page 1 …when it comes to quality! BMR GmbH...
  • Page 2 SFU 0303 Frequency Converter...

  • Page 3: Table Of Contents

    14 Warranty 15 Accessories 16 Mechanics and Dimension 16.1 SEE Version for cabinet mounting 16.2 19" Version 16.3 Desktop Version 16.4 Desktop 63TE Version 17 Other products of BMR GmbH 18 Our Quality Commitment …when it comes to quality! BMR GmbH...

  • Page 4: Introduction

    1. Introduction Due to its construction, the rotational speed of a 3-phase AC motor is directly dependent on the frequency of the voltage and the number of poles. In case of a 3PH 50Hz voltage and a 2-pole motor, the nominal speed would be 50 rps * 60 = 3000 rpm. In case of BLDC motors (brushless dc), the speed is directly dependent on the voltage applied.
  • Page 5 Remote control hand-terminal available Controlled fan Datalogger-Function on option available in combination with PC software SFU-Terminal. Records of all relevant parameters of the converter in nearly infinite lengths are possible down onto the PC- hard disc. …when it comes to quality! BMR GmbH...

  • Page 6: Description And Features

    Description and Features Operation of Asynchronous AC und BLDC Motors The high frequency converter SFU-0303 makes possible output frequencies 3.3 kHz / 200.000 Upm with 2pole AC-Motors and with BLDC-Motors up to 100.000rpm High output power ( 3,6kV @ 230V / 2kVA @ 115V ) in compact style The core of SFU-0303 is a Digital Signal Processor (DSP) which produces all output signals and collects all input signals All parameters like current, voltage and frequency are collected in real time and are regulated by the...

  • Page 7: Block Diagram

    Block Diagram …when it comes to quality! BMR GmbH...

  • Page 8: Technical Data

    4. Technical Data 4.1 Version SSE Mains connection 115V, 60Hz 230V, 50Hz Continuous output power 2 kVA 3,6 kVA Motor connection 10-polig: PE, U, V, W, PTC, FP, SGND pluggable screw terminals 4mm² Output voltage 110V 220V Output current / power limited electronically Output-current maximal duration adjustable 0 …...
  • Page 9 5 - 40°C / rel. Humidity of air max. 85% ATTENTION The operation of a spindle with a wrong characteristic may harm the spindle severely! Please ensure to have the proper characteristic selected always! …when it comes to quality! BMR GmbH...

  • Page 10: Safety Precautions And Warnings

    5. Safety- Precautions and Warnings This device produces dangerous electrical voltages and is used for the operation of fast spinning tools. Because of their high rotational speed, it may be dangerous in case of improper handling. For this reason, only professionally trained and qualified personnel should be allowed to work with and setup this device! Before the first commissioning can be carried out, it should be ensured that the spindle and the tool are fixed properly, to eliminate all dangers because of uncontrolled movement of...

  • Page 11: Connections, Interfaces And Pinout

    The same assignment is also possible for the analogue measured data and control data at the analogue I/O pin. The standard allocations of operational parameters, their outputs, control signals and inputs, are listed in the following tables. …when it comes to quality! BMR GmbH...

  • Page 12: Digital And Analogue Inputs And Outputs

    6.1 Digital and Analog Inputs and Outputs (25 pin D-Sub female) Version SSE on front panel 19", Desktop, Desktop 63TE on back panel Description Direction Function / Default Relay Common Common Rail relay 1-5 Relay 5 normally closed Output Standstill Converter + Spindle Relay 2 normally open Output Duty Speed Reached...
  • Page 13 Please ensure, that PE protective earth is connected at the spindle side as well as at the mains side. Control wires, Mains cables and spindle cables should be installed separately. For wiring, the use of shielded cables is recommended. …when it comes to quality! BMR GmbH...

  • Page 14: Spindle Interface X4

    6.3 19" Version: Mains and Spindle connection Spindle Interface I/O Interface Spindle connection Mains Connection automatic thermal fuse Automatic Fuses Back side SFU0303-19" with spindle connector clamp terminal Spindle Connector - 9pin clamp terminal Name Direction Function +VFP Output Auxiliary voltage supply for active speed sensor 12V/50mA SGND Ground for signals FP, PTC Input...
  • Page 15 The spindle connection is realized on custom order and can be realized accordingly IEC Mains connection Spindle connection Automatic Fuse Sicherungsa I/O Interface Spindle Interface Backside SFU0303-Desktop equipped with a 7pin circular spindle connection …when it comes to quality! BMR GmbH...
  • Page 16 Spindle Connection 7pin female Binder Series 693 or Amphenol C16-1 Name Description SGND Signal GND for PTC-and FP Signal Spindle Phase 3 speed sensor of the spindle Protective Earth Spindle Phase 2 temperature sensor of the spindle Spindle Phase 1 Spindle Connection 13pin female Binder Series 694 Name...

  • Page 17: Usb-Connector

    SSE it is located at the bottom side as USB Mini AB. At the 19" and Desktop devices, it is found at the front panel directly below the display. This interface shares the functionality with the USB Interface. For that reason it can be used alternatively, only …when it comes to quality! BMR GmbH...

  • Page 18: Front Panel Of Sse, Desktop Und 19" Version

    7. Functions, Commissioning, Operation 7.1 Front panel SSE, Desktop and 19" Version front panel Desktop front panel SSE front panel Desktop 63TE front panel 19" version SFU 0303 Frequency Converter...
  • Page 19 ( 6.3 / 6.6 ) a control via the digital inputs Bit1 ... Bit4 to X4 possible. The setting in the project file or via the operator panel is then ineffective, however. Spindle characteristics are created by BMR and can be loaded and managed using the SFU - Terminal . Start and Stop...

  • Page 20: Status Led Display

    7.3 Status LED Display at SSE Run / SFU is running Emergency Stop Overload Power Stage Pulse Locking Excess temperature spindle Spindle not ready Picure 14 SFU Ready Typical displays. Other combinations are possible due to status. Converter OK, Ready + Standstill and Spindle is running Converter and Spindle ready Overload...

  • Page 21: Lcd-Operating Panel

    Stop-Button LED green for indication of Ready for Operation or of Run mode und Spindle is spinning LED red for indication of Standstill or of Stop mode or Error …when it comes to quality! BMR GmbH...
  • Page 22 Start and Stop at the operating panel In the simplest case, a connected and appropriately set up spindle can be started by pressing the Start-Button. The desired speed can be adjusted by dialing with the rotary encoder either as preset value during standstill or in Run mode. The preconditions for a correct Start can be looked up under 7.1 and 7.5 .
  • Page 23 Any error is displayed in plaintext in line 1 O u t p . 2 5 0 0 0 r p m C o n v. n o t r e a d y ! …when it comes to quality! BMR GmbH...
  • Page 24 Error Messages: The following error displays are possible: Display Error Pulse blocking ! Power stage lock active Overload Stop Overload stop! Overtemp. Conv. Excess Temperature Converter Overtemp. Spindle Excess Temperature Spindle Overvoltage trip Mains voltage too high Undervoltage trip Mains voltage too low Undervoltage stop Mains voltage too low Pwr stage off!

  • Page 25: Setup Of Rotational Speed

    Once this value is reached, the relay is switched. This makes it possible , when it exceeds the value e.g. perform a broken tool detection or detect an obtuse nascent tool for shorter stays . …when it comes to quality! BMR GmbH...
  • Page 26 7.5 Start / Stop There are several possibilities to start the spindle: digitally with a digital control signal at digital input1 Start/Stop The switching levels for "OFF=0" are 0...7V and for "ON=1" 18...24V, voltages between 7V and 18V are undefined. As soon as this is initiated, the spindle will be accelerated up to the set value of the rotational speed.

  • Page 27: Safety Functions

    A restart can only be achieved with a systematic Stop/Start-Sequence or with a valid signal at the input "Error Reset". This can be setup in the menu "digital inputs" the power stage will be activated again after 4 sec. …when it comes to quality! BMR GmbH...
  • Page 28 8. Setup, Parameterization and Configuration with SFU-Terminal The software SFU-Terminal is a tool for the configuration of BMR frequency converters of the series SFU0102….SFU0601. Moreover it offers the possibility to read out system data and to modify them. To achieve this, the following steps should be taken: 1.

  • Page 29: Automatic Spindle Tuning

    The reason for this is, that AC-motors can be operated in a weakened field mode, also, which makes possible a higher rotational speed but with reduced power. …when it comes to quality! BMR GmbH...
  • Page 30 Example 1, normal adjustment: A 2-pole motor with a maximum rotational speed of 30.000rpm needs at this point a nominal voltage of 220V at a current of 5A . Example 2, weakened field, field suppression: A 2-pole motor with a maximum rotational speed of 30.000rpm needs at 20.000rpm a nominal voltage of 220V at a current of 5A .

  • Page 31: Examples For Connection

    10. Examples of Connection 10.1 Mains and Spindle connection PE +ZU Rext PTC Fp SGND +VFp …when it comes to quality! BMR GmbH...
  • Page 32 This interface in combination with an automatic spindle detection should be used only after consultation with BMR. By assigning the four address lines the spindle characteristic can be selected by a PLC or external switches, in case it has been enabled The digital wiring can even be achieved with outputs of logic circuits, with a High Out level >...

  • Page 33: Emc

    Supply cables, motor cables and control cables must be completely isolated from each other. Where crossing cannot be avoided, cables should be laid at 90° to each other. The control cable should be laid as far away as possible from the load cable. …when it comes to quality! BMR GmbH...

  • Page 34: Troubleshooting

    12. Troubleshooting Error Description Cause Fixing After power on the Input "Emergency Stop" is not +24Signal at this input converter indicates properly or not wired at all. Not Ready and Error > Let the converter cool down > Check, if the fan is working properly or maintain that air flow The converter is at excess around the heatsink is sufficient...
  • Page 35 Incorrect connection cable SFU-Terminal the length is not longer than 2m or wiring fault Converter is not detected > Try to use original BMR and not recognized cables, only > Use the USB-Interface at the PC together with a USB-RS232 converter.
  • Page 36 In case that this increased. current is too low, or a wrong -> contact BMR spindle characteristic selected, it does not match to the reference values and the spindle test fails.
  • Page 37 > Increase value for start voltage in output lines. In case that this the spindle characteristic current is too low, or a wrong -> contact BMR spindle characteristic > Deactivate function "Spindle test" selected, it does not match to the reference values and the spindle test fails.

  • Page 38: General Hints

    Our common hints can give only a rough guideline because it is not possible for BMR GmbH to cover all specific situations. The compliance with limits of EMC demanded by law is the responsibility of the manufacturer of the unit or the machine.

  • Page 39: Warranty

    Warranty claims have to be sent to us in written form. The customer has to pay the costs to send the defective device back to BMR within the time of warranty. If this is not complied with or if we detect an external intrusion into our device, we feel free to withdraw our duty of warranty.

  • Page 40: Accessories

    Accessories Name Order code RS232 Cable P 2001.100012 USB Cable P 2001.100013 RS485 Cable P 2001.100014 LCD Operating Panel P 1203.100003 Mounting Bracket for the Housing P 1700.504133 Kit of pluggable Connection Clamps for P 1001.100005 X2, X3, X4, Mains and spindle connector Mounting Bracket and 2 Clamps for fixing the cables and for establishing P 1001.100006...

  • Page 41: Mechanics And Dimension

    Mechanic, Views and Dimension 16.1 SSE Version for cabinet mounting …when it comes to quality! BMR GmbH...

  • Page 42: 19" Version

    16.2 19" Version SFU 0303 Frequency Converter...
  • Page 43 16.3 Version Desktop …when it comes to quality! BMR GmbH...
  • Page 44 16.4 Version Desktop 63TE SFU 0303 Frequency Converter...
  • Page 45 Each application requires a specific solution. Optionales Zubehör: With the new spindle illumination ring of BMR GmbH this problem belongs to the past! ….and many more! …when it comes to quality!

  • Page 46: Our Quality Commitment

    OUR QUALITY COMMITMENT 100% „Made in Germany“ 100% precision 100% reliability 100% support 100% flexibility Subject to technical alterations. May 2017 SFU 0303 Frequency Converter...
  • Page 47 …when it comes to quality! BMR GmbH...
  • Page 48 SFU 0303 Frequency Converter...
