- Page 1 …when it comes to quality! BMR GmbH...
- Page 2 SFU 0156 Frequency Converter...
-
Page 3: Table Of Contents
LED‘s 6 Example for I/O Wiring 7 Safety Functions 8 EMC 9 Power Supply Set (as option) 10 Remote Control 11 Drawing and Mounting 12 Other products of BMR GmbH 13 Quality Commitment …when it comes to quality! BMR GmbH... -
Page 4: Description And Features

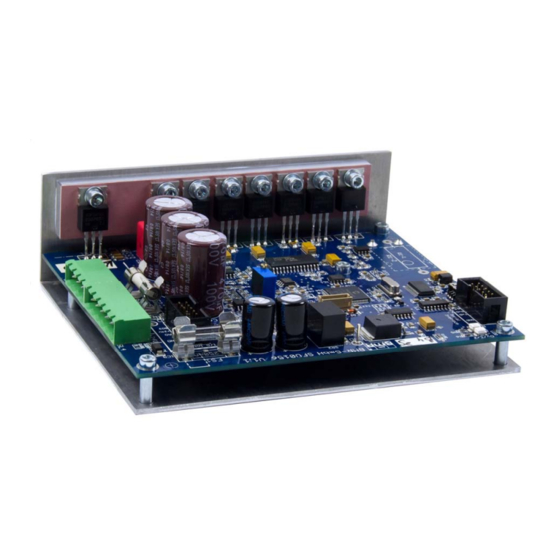

1. Description and Features Operation of AC spindles and BLDC spindles The frequency converter SFU 0156 allows speed frequencies up to 2000Hz/120.000 rpm with 2-pole spindles. The core of SFU-0156 is a digital signal processor (DSP) which produces all output parameters and collects signals. -
Page 5: Safety And Caution Instructions
The operation of a spindle with a wrong characteristic may harm the spindle severely! Attention: In case of replacing the fuses, please ensure to use types only, which are mentioned in ‘Technical Data’! …when it comes to quality! BMR GmbH... -
Page 6: Connections, Plugs And Pin Assignments
+ Supply voltage for control logic -> Fuse FS1 250mAT +24V (max 30V) protected against voltage reversal with Diode D8 Version SFU 0156 with onboard +24V logic supply. In this version the logic supply voltage is directly generated from the spindle supply voltage (-> 9.) -
Page 7: Spindle Connection Sl3
4.4 USB Interface (alternative with RS232 4.5) The SFU 0156 has an USB Mini connector for easy access to "SFU-Terminal" configuration program. You have the options to setup and configure the converter. The USB interface is using the same interface channel as the RS232 interface (4.5) so that either one of both can be used, only. -
Page 8: Adapter Cable
DSP and all other ICs. So, potential errors at the wiring may harm the board severely! Attention, on requenst a non standard cable is available with a spexial wiring makes OC3 accessibles at PIN7 of the 9PIN D-Sub. SFU 0156 Frequency Converter... -
Page 9: Description Of Functions And Operation
As a default function the output load condition is output as a voltage between 0..10V at the analogue output AO / SL2.6. with a scaling of 1V/10% . Other function values are available and can be setup with SFU-Terminal. …when it comes to quality! BMR GmbH... -
Page 10: Led's
( 5.2). With using a potentiometer for dialing the rotational speed it should be wired to 10V, so that the required range from 0…10V can be covered, representing the speed range. SFU 0156 Frequency Converter... -
Page 11: Safety Functions
Supply cables, motor cables and control cables must be completely isolated from each other. Where crossing cannot be avoided, cables should be laid at 90° to each other. The control cable should be laid as far away as possible from the load cable. …when it comes to quality! BMR GmbH... -
Page 12: Power Supply Set (As Option)
This DC-DC voltage converter generates the voltage for the 24V logic supply directly from the spindle voltage. It has a wide band input range and a regulated 24V output. Vin: 28-95VDC Blue 0V / GND Green Vout: 24VDC/120mA Dimensions (WxHxD mm): 20x15x30 Cable length: 160 mm SFU 0156 Frequency Converter... - Page 13 +24V logic- supply module Achtung: All these works handle with dangerous voltage and have to be carried out by skilled persons only. Please verify before connecting that the supply voltage is switched off! …when it comes to quality! BMR GmbH...
-
Page 14: Remote Control
10. SFU 0156 with Remote Controller On option a remote controller is available which can directly be connected with the I/O interface at SL2. By this, the required duty speed can be adjusted with a potentiometer and the converter can be started and stopped with a rocker switch. -
Page 15: Drawing And Mounting
11. Drawing and Mounting For mounting purpose there are 6 nuts with a 3mm thread provided, being pressed into the at the bottom side of mounting bracket. view from top sideview …when it comes to quality! BMR GmbH... -
Page 16: Other Products Of Bmr Gmbh
Each application requires a specific solution. Optionales Zubehör: With the new spindle illumination ring of BMR GmbH this problem belongs to the past! ….and many more! SFU 0156 Frequency Converter... -
Page 17: Quality Commitment
OUR QUALITY COMMITMENT 100% „Made in Germany“ 100% precision 100% reliability 100% support 100% flexibility Subject to technical alterations. January 2017 …when it comes to quality! BMR GmbH... - Page 18 SFU 0156 Frequency Converter...
- Page 19 …when it comes to quality! BMR GmbH...
- Page 20 SFU 0156 Frequency Converter...
