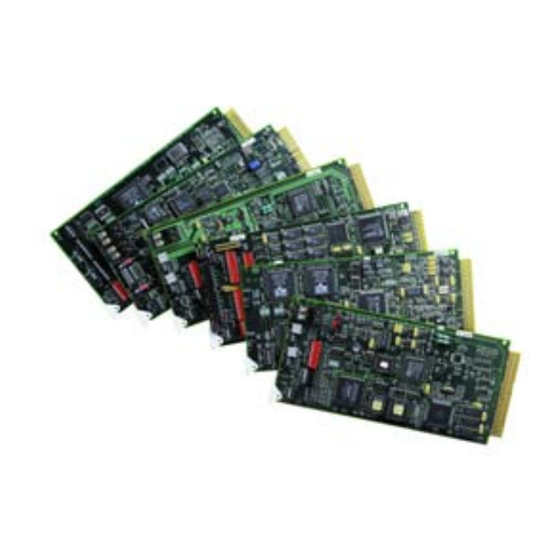

GatesAir Intraplex DS-64NC Installation And Operation Manual

Wideband synchronous data module, module adapters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Operation Manual
Intraplex®
DS-64NC Wideband
Synchronous Data Module
DS-64NC Data Module
MA-412, MA-412A, MA-413, MA-413B, MA-414, MA-415,
MA-420, MA-421, MA-427, and MA-428 Module Adapters
Version 9.1
GatesAir.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intraplex DS-64NC and is the answer not in the manual?

Questions and answers

Related Manuals for GatesAir Intraplex DS-64NC

Summary of Contents for GatesAir Intraplex DS-64NC

  • Page 1 Installation and Operation Manual Intraplex® DS-64NC Wideband Synchronous Data Module DS-64NC Data Module MA-412, MA-412A, MA-413, MA-413B, MA-414, MA-415, MA-420, MA-421, MA-427, and MA-428 Module Adapters Version 9.1 GatesAir.com...
  • Page 3 ©2014 GatesAir, Inc. . Proprietary and Confidential. GatesAir considers this document and its contents to be proprietary and confidential. Except for making a reasonable number of copies for your own internal use, you may not reproduce this publication, or any part thereof, in any form, by any method, for any purpose, or in any language other than English without the written consent of GatesAir.
  • Page 4 *Version numbers usually correspond to software releases. If the manual versions differ in number from the release, the front page shows both the manual version and the release version.

  • Page 5: Table Of Contents

    3.4 Mounting ..................3-3 Section 4 – Testing & Troubleshooting .......... 4-1 4.1 Troubleshooting with the Internal Test Pattern Generator ..... 4-1 4.2 Troubleshooting with an External Data Test Set ........4-1 Section 5 – Specifications .............. 5-1 GatesAir Intraplex Products...
  • Page 6 Figure A-11. Pins 1 and 8 on RJ-45 Connector and MA-427 Module Adapter ....... A-12 Figure A-12. MA-428 Module Adapter ................... A-14 Figure A-13. Pins 1 and 8 on RJ-45 Connector and MA-428 Module Adapter ....... A-14 GatesAir Intraplex Products...
  • Page 7 Table A-11. MA-428 Indicator Light Descriptions ..............A-16 Table A-12. MA-428 Alarm Conditions .................. A-17 Table A-13. Troubleshooting Possible Problems and Solutions ..........A-17 Table A-14. Auto-Negotiation/Forced Mode Combinations ............A-18 Table B-1. DS-64NC Module Data Rate Selection ..............B-1 GatesAir Intraplex Products...
  • Page 8 No header here This page is left blank intentionally. GatesAir Intraplex Products...

  • Page 9: Section 1 - Introduction

    Section 1 – Introduction This manual describes the setup and installation procedures for the Intraplex DS-64NC wideband synchronous data module. Experienced users may go directly to the tables in Section 2 for configuration data. The specific multiplexer operation manuals contain additional information about using channel modules in Intraplex multiplexers.
  • Page 11 This page is left blank intentionally. GatesAir Intraplex Products...

  • Page 13: Section 2 - Functional Description

    (Section 2.5.2). This register may be used to implement “intelligent” reset algorithms; for example, “reset at midnight unless already within 1/8 of center.” This status information is available via the multiplexer’s remote port. GatesAir Intraplex Products...

  • Page 14: Figure 2-1. Ds-64Nc Module, Functional Diagram

    Timing Out Timing Out TEST (S3/pos 3-5) Data Out Timing E1 (S6/pos 2) Connector SCB ADDR (S1/pos 1-6) Timing In Reference Clock RS-449 or V.35 Connector to Common Module Data In Figure 2-1. DS-64NC Module, Functional Diagram GatesAir Intraplex Products...

  • Page 15: Time Slot Assignment

    An equipment loopback turns receive-side data around to the transmit side at the line interface from the near end (Figure 2-2). If the backplane buses in the shelf are not frequency-locked when the equipment loopback is in effect, the transmit-side FIFO spills periodically. GatesAir Intraplex Products...

  • Page 16: Remote Loopback

    This error indicates that you have selected a combination of data rate and starting time slot that does not permit all data to fit into the time slots available, given the current settings for system usage (T1 or 2 MB) and payload bits per time slot (56 or 64). GatesAir Intraplex Products...

  • Page 17: Alarms

    BUFF FAIL Light FE ERR Light LOCATED S1 & S6: NE ERR Light BEHIND S2 & S5 RX SYNC Light RX OUT Light LPBK Light TX BUFF Light TX IN Light Figure 2-3. DS-64NC Module, Front View GatesAir Intraplex Products...

  • Page 18: Figure 2-4. Ds-64Nc Module, Top View

    DS-64NC Synchronous Data Module 2 – Functional Description Version 9.1 Jumpers only on Rev D board Figure 2-4. DS-64NC Module, Top View GatesAir Intraplex Products...

  • Page 19: Table 2-1. Indicator Lights

    ** When using 56 kbps per time slot, allow for the additional number of time slots needed to hold the total amount of data. The number of time slots affect the choice of starting time slot. Appendix B GatesAir Intraplex Products...

  • Page 20: Card Address Setup

    For remote access, each channel module in an Intraplex remotely controllable shelf must have a distinct card address. Valid card addresses are the numbers 1 to 36. Your multiplexer operation manual gives details on using the system’s remote access and configuration features. GatesAir Intraplex Products...

  • Page 21: Starting Time Slot Selection

    Time slot assignment does not wrap around back to the beginning (Time slot 1). Selecting a starting time slot does not allow enough room for all necessary time slots within the limit of the transmission link is a configuration error. The module then reports an Alert condition and does not go into service. GatesAir Intraplex Products...
  • Page 22 D D D U U U D D U D D D D U D U D D D U D D D D U U D D D D D D D D D U=UP; D=DOWN 2-10 GatesAir Intraplex Products...

  • Page 23: Loopback Mode Selection

    Generate 1:15 ones* DOWN No test DOWN DOWN Verify all ones DOWN DOWN Verify PRNG DOWN DOWN DOWN Verify 1:15 ones These test modes also verify the same pattern if any loopback is active at the same time. GatesAir 2-11 Intraplex Products...

  • Page 24: Transmit Mode Selection

    Table 2-9. Data Rate Setting Examples – S4 S4, Positions 1-10 Settings: # of Time Slots 0 = UP, 1 = DOWN Occupied at Rate Data Rate 64 kbps 56 kbps (kbps) per slot per slot 2-12 GatesAir Intraplex Products...

  • Page 25: Remote Control Interface

    The binary representation is also more useful with P6; however, the digits of P6 do not correspond to any switches on the module. Rather, P6 lets you select and reset the values contained in the performance registers. This feature is available only via remote access. GatesAir 2-13 Intraplex Products...

  • Page 26: Table 2-10. Remote Configuration Settings - P Codes

    1 to transmit in the A direction and receive from the B direction. Set it to 0 to transmit in the B direction and receive from the A direction. 2-14 GatesAir Intraplex Products...
  • Page 27 These values are the only legal ones for setting the parameters. Any parameter set to a value outside its specified range produces an unpredictable result. † These test modes also verify the same pattern if any loopback is active at the time. GatesAir 2-15 Intraplex Products...

  • Page 28: S Codes

    I/O pin errors; the module monitors the output signals for transmit clock, receive clock, receive data, and handshaking, and reports if any of these devices deviates from its expected value. Which signals these errors represent depends on whether the module is equipped with a DCE or DTE module adapter. 2-16 GatesAir Intraplex Products...

  • Page 29: Table 2-11. Remote Status Messages - S Codes

    Transmit activity detected ↑-- No transmit activity detected B00000000 Receive activity detected ↑--- No receive activity detected B00000000 No loopback initiated from far end ↑------ Loopback initiated from far end B00000000 Not currently used; always reads “0” ↑-------- GatesAir 2-17 Intraplex Products...
  • Page 30 . The actual depth is somewhere between the value of 2 and the value of (Table 2-12). In this example, where n is , the table shows that the FIFO depth is 1000 somewhere between 256 bits and 511 bits. 2-18 GatesAir Intraplex Products...

  • Page 31: Table 2-12. Approximate Fifo Depth Calculation

    Replacing the three zeroes in , which is equal 1000 1101 to the decimal number 13. Thus, the current depth of this buffer is 13 bits. GatesAir 2-19 Intraplex Products...
  • Page 33 This page is left blank intentionally. 2-20 GatesAir Intraplex Products...

  • Page 35: Section 3 - Installation & Configuration

    3.1 Inspection After receiving your Intraplex DS-64NC module and corresponding module adapter, complete these tasks: 1. Inspect all shipping containers for damage. If you observe damage, notify the shipping service as soon as possible.
  • Page 36 2. Set the common module to use External Timing. 3. Ensure that the equipment connected to this module is providing data and timing signals on the current pins (Tables A-3 – A-6 in Appendix A). GatesAir Intraplex Products...

  • Page 37: Installation & Local/Remote Configuration

    Insert the module into the selected slot in the Intraplex multiplexer (Figure 3-1). Note: The module must be inserted so that the white ejector tab is at the bottom in a full size (5¼" high) shelf or at the right in a compact (1¾" high) shelf. GatesAir Intraplex Products...

  • Page 38: Figure 3-1. Ds-64Nc Module, Top View

    DS-64NC Synchronous Data Module 3 – Installation & Configuration Version 9.1 Figure 3-1. DS-64NC Module, Top View GatesAir Intraplex Products...

  • Page 39: Section 4 - Testing & Troubleshooting

    1. At one end of the circuit, connect a data test set (Fireberd 2000 or equivalent) to the module adapter to test the DS-64NC module. 2. Activate the local (payload) loopback on this DS-64NC module: • S3/position 1 UP • S3/position 2 DOWN GatesAir Intraplex Products...
  • Page 40 If you have test sets available at both ends of the circuit, you may also perform these steps to conduct an end-to-end test: 1. Connect the test set at each end to the module adapter for DS-64NC module. 2. Send test signals in both directions of the circuit. GatesAir Intraplex Products...

  • Page 41: Section 5 - Specifications

    56 or 64 kbps per time slot, with unused bits set to logic “1” Clear Channel For AMI network: Alternate time slot usage per AT&T TR-54019, or Capability 56 kpbs per time slot, with 8 bit set to logic “1” GatesAir Intraplex Products...
  • Page 42 System Compatibility The DS-64NC module is compatible with all Intraplex multiplexers and network access products Operating Modes Transmit-only, receive-only, or full-duplex Power Consumption 2.0 watts nominal Environmental Temperature 0° - 50°C Operating Humidity 0% - 90% Non-condensing GatesAir Intraplex Products...

  • Page 43: 37-Pin Connector Module Adapters (Ma-412, 412A, 413, 413B, 4-14 And 415

    A-6 show cable connections for the data connectors on these six MAs. MA41x PIN 1 PIN 20 DB-37S PIN 37 PIN 19 Not Used RS449 Not Used V.35 Ground Ground Reference Timing Out Reference Timing Out RJ-11 Figure A-1. MA-412, MA-412A, MA-413, MA-413B (DCE) Module Adapters GatesAir Intraplex Products...

  • Page 44: Figure A-2. Ma-414 And Ma-415 (Dte) Module Adapters

    Appendix A –Module Adapters for the DS-64NC Module Version 9.1 MA41x PIN 19 PIN 37 DB-37P PIN 20 PIN 1 RS449 Not Used Not Used V.35 Ground Ground Reference Timing Out Reference Timing Out RJ-11 Figure A-2. MA-414 and MA-415 (DTE) Module Adapters GatesAir Intraplex Products...

  • Page 45: Appendix A - Module Adapters For The Ds-64Nc Module

    REQUEST TO SEND (RS) CLEAR TO SEND (CS) RECEIVE DATA (RD) RECEIVE TIMING (RT) RECEIVE READY (RR) DATA MODE (DM) TEST MODE (TM) SIGNAL GROUND (SG) Figure A-3. Signal Flow Between an MA-412/MA-412A (DCE) and RS-449 DTE Equipment GatesAir Intraplex Products...

  • Page 46: Figure A-4. Signal Flow Between An Ma-413/Ma-413B (Dce) And V.35 Dte Equipment

    REQUEST TO SEND (RTS) SERIAL CLOCK RECEIVE (SCR) CLEAR TO SEND (CTS) DATA SET READY (DSR) RECEIVE LINE SIGNAL DET (RLSD) LOCAL TEST (LT) SIGNAL GROUND (SG) Figure A-4. Signal Flow Between an MA-413/MA-413B (DCE) and V.35 DTE Equipment GatesAir Intraplex Products...

  • Page 47: Figure A-5. Signal Flow Between An Ma-414 (Dte) And Rs-449 Dce Equipment

    REQUEST TO SEND (RS) CLEAR TO SEND (CS) RECEIVE DATA (RD) RECEIVE TIMING (RT) RECEIVE READY (RR) DATA MODE (DM) TEST MODE (TM) SIGNAL GROUND (SG) Figure A-5. Signal Flow Between an MA-414 (DTE) and RS-449 DCE Equipment GatesAir Intraplex Products...

  • Page 48: Figure A-6. Signal Flow Between An Ma-415 (Dte) And V.35 Dce Equipment

    External – The Transmit Clock derives from the DTE device (SCTE). ● None - Disable the Transmit Clock, if the DS-64NC module is set up as Receive only. (Example: ● Video Codec application would be set up in Receive Mode only). GatesAir Intraplex Products...

  • Page 49: X.21 Module Adapters (Ma-420 And Ma-421

    X.21 DCE interface; the MA-421 module adapter (Figure A-9) provides an X.21 DTE interface. Both MAs have jumpers that affect their operations (Table A-1). Table A-2 and Table A-3 list the pin-outs for the MA connectors. GatesAir Intraplex Products...

  • Page 50: Figure A-8. Ma-420 X.21 Dce Module Adapter

    DS-64NC Synchronous Data Module Appendix A –Module Adapters for the DS-64NC Module Version 9.1 Figure A-8. MA-420 X.21 DCE Module Adapter Figure A-9. MA-421 X.21 DTE Module Adapter GatesAir Intraplex Products...

  • Page 51: Ma-427 Lan Bridge Module Adapter

    Full- and half-duplex Ethernet application support ● Transparent simplex, half-duplex, or full duplex support on the WAN interface ● WAN link rate of up to 10 Mbps sync ● Switch-selectable filtering with 15,000 frames per second filtering and forwarding rate GatesAir Intraplex Products...

  • Page 52: Installation And Operation

    ** To ensure proper operation with the DS-64NC module, do not change the WMODE switch from its default setting. † Unless you need to change from half- to full-duplex, do not change MODE 0-4 switches from their default settings. A-10 GatesAir Intraplex Products...

  • Page 53: Figure A-10. Ma-427 Lan Bridge Module Adapter

    Not used Not used Not used Not used Not used Not used Not used Not used Not used Figure A-11 shows the locations of Pins 1 and 8 on the RJ-45 connector and the MA-427 adapter. GatesAir A-11 Intraplex Products...

  • Page 54: Troubleshooting

    Indicates connection to LAN connected to a functioning LAN LINK Light not on Indicates no connection to LAN A.3.2 Troubleshooting Use Table A-6 to troubleshoot any problems you encounter during MA-427 LAN Bridge module adapter installation or operation. A-12 GatesAir Intraplex Products...

  • Page 55: Ma-428 Enhanced Lan Bridge Module Adapter

    Auto-negotiation or user-defined fixed operation at 10 Mbps and 100 Mbps in either full- or half- duplex mode This section covers MA-428 operation and troubleshooting. Figure A-12 shows the top and side views of this module adapter (MA) with labels for ● DIP switches. ● Connectors. ● Jumpers. ● Indicator lights. GatesAir A-13 Intraplex Products...

  • Page 56: Ma-428 Operation

    Supported Ethernet cables. ● DIP switch settings. ● Indicator light descriptions. ● Alarm conditions. Figure A-13 gives pin locations for this module adapter. Figure A-13. Pins 1 and 8 on RJ-45 Connector and MA-428 Module Adapter A-14 GatesAir Intraplex Products...

  • Page 57: Table A-7. Ma-428 Switches, Connectors, And Jumpers

    Up = Filter broadcast frames * Applicable only in forced mode (Table A-10). Any switches not indicated in Table A-9 are not currently used. Table A-10 gives all the combinations of auto-negotiation and forced mode. GatesAir A-15 Intraplex Products...

  • Page 58: Table A-10. Ma-428 Combinations Of Auto-Negotiation And Forced Modes

    The MA is powered up. POWER* Module off There is no power to the MA. These indicator lights are on the top of the board (Figure A-12). The MA-428 module adapter’s ALARM indicator light represents various error conditions (Table A-12). A-16 GatesAir Intraplex Products...

  • Page 59: Table A-12. Ma-428 Alarm Conditions

    Table A-14 gives all possible auto-negotiation/forced mode combinations. Valid Link is the preferred mode combinations. Modes such as Unstable Link, No Link, and False Link are not preferred, even though there appears to be a link. GatesAir A-17 Intraplex Products...

  • Page 60: Table A-14. Auto-Negotiation/Forced Mode Combinations

    Because of this limitation, auto-negotiation does not always work and the module adapter defaults to half-duplex. ● False Link – Even though the link is established, data loss occurs. A-18 GatesAir Intraplex Products...

  • Page 61: Appendix B - Data Rate Selection Table

    64 or 56 kbps per time slot. Table B-1. DS-64NC Module Data Rate Selection S4, Positions 1-10 Settings: Number of Time Slots Occupied Data 0 = UP, 1 = DOWN at This Rate Rate (kbps) 64 kbps/Slot 56 kbps/Slot GatesAir Intraplex Products...
  • Page 62 Appendix B – Data Rate Selection Table Version 9.1 Table B-1. DS-64NC Module Data Rate Selection (continued) S4, Positions 1-10 Settings: Number of Time Slots Occupied Data 0 = UP, 1 = DOWN at This Rate Rate (kbps) 64 kbps/Slot 56 kbps/Slot GatesAir Intraplex Products...
  • Page 63 DS-64NC Synchronous Data Module Version 9.1 Table B-1. DS-64NC Module Data Rate Selection (continued) S4, Positions 1-10 Settings: Number of Time Slots Occupied Data 0 = UP, 1 = DOWN at This Rate Rate (kbps) 64 kbps/Slot 56 kbps/Slot GatesAir Intraplex Products...
  • Page 64 Table B-1. DS-64NC Data Rate Selection (continued) S4, Positions 1-10 Settings: Number of Time Slots Occupied Data 0 = UP, 1 = DOWN at This Rate Rate (kbps) 64 kbps/Slot 56 kbps/Slot 1000 1008 1016 1024 1032 1040 1048 GatesAir Intraplex Products...
  • Page 65 56 kbps/Slot 1056 1064 1072 1080 1088 1096 1104 1112 1120 1128 1136 1144 1152 1160 1168 1176 1184 1192 1200 1208 1216 1224 1232 1240 1248 1256 1264 1272 1280 1288 1296 1304 1312 1320 1328 GatesAir Intraplex Products...
  • Page 66 1448 1456 1464 1472 1480 1488 1496 1504 1512 1520 1528 1536 Note: Data rates higher than 1536 kbps cannot be used when this module is installed in a T1 multiplexer or a T1 variable rate multiplexer. GatesAir Intraplex Products...
  • Page 67 56 kbps/Slot 1544 1552 1560 1568 1576 1584 1592 1600 1608 1616 1624 1632 1640 1648 1656 1664 1672 1680 1688 1696 1704 1712 1720 1728 1736 1744 1752 1760 1768 1776 1784 1792 1800 1808 1816 1824 GatesAir Intraplex Products...
  • Page 68 This rate is the highest one available when the module is installed in a 2MB multiplexer using CAS signaling. ** This rate is the highest one available when the module is installed in a 2MB multiplexer using CCS signaling. GatesAir Intraplex Products...
