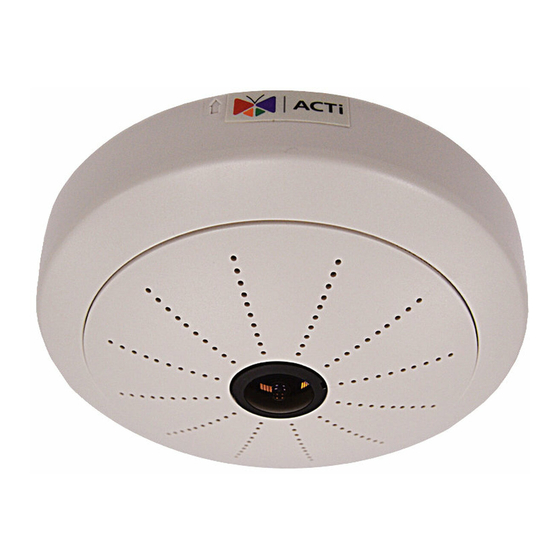

KCM-3911
H.264 4-Megapixel IP D/N Hemispheric
Camera with ExDR
(DC 12V / PoE)
Ver. 2012/07/13
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Advertisement

Table of Contents
loading

Related Manuals for ACTi KCM-3911

Summary of Contents for ACTi KCM-3911

  • Page 1 KCM-3911 H.264 4-Megapixel IP D/N Hemispheric Camera with ExDR (DC 12V / PoE) Ver. 2012/07/13 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 2: Table Of Contents

    KCM-3911 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Product Specification ..............11 Accessing Camera If you have DHCP server / router in your network: ...... 13 If you do have DHCP server / router in your network: ..

  • Page 3: Precautions

    KCM-3911 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    KCM-3911 Hardware User’s Manual 1. Introduction Package Contents KCM-3911 Product CD Terminal Blocks for Power, DI/O Audio Accessories Warranty Card Drill Template www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 5: Features And Benefits

    KCM-3911 Hardware User’s Manual Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality. This camera is your best choice to build an intelligent IP surveillance system.

  • Page 6: Safety Instructions

    KCM-3911 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 7 KCM-3911 Hardware User’s Manual this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

  • Page 8: Physical Description

    KCM-3911 Hardware User’s Manual Physical description Ethernet Port Reset Button Micro SD / Micro SDHC Card Slot Digital Input / Output Power LED DC 12v Power Input Audio Input / Output 1) Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.)
  • Page 9 KCM-3911 Hardware User’s Manual Restore to Default Power On Complete On (3s) Off (about 15s) Off (10~15s) Stay On About 20 Seconds 2) Micro SD / Micro SDHC Card Slot* Insert your Micro SD card here for local recording on camera 3) Power LED This LED light will indicate current camera status.
  • Page 10 KCM-3911 Hardware User’s Manual Pin 3 Digital Input Connect to GND to activate, or leave floating Must not be exposed (or unconnected) to deactivate. to voltages greater than 30V DC. Pin 4 Transistor Connect to Pin 2 through external devices for Max load = <100mA...

  • Page 11: Product Specification

    KCM-3911 Hardware User’s Manual Product Specification KCM-3911 • Device Device Type Hemispheric Camera Image Sensor Progressive Scan CMOS Sensor Size 1/2.5 “ (5.7 x 4.28 mm) Day / Night Minimum Illumination Color: 1.63 lux at F2.8 (30 IRE, 2400°K); B/W: 0.06 lux at F2.8 (30 IRE, 2400°K)
  • Page 12 KCM-3911 Hardware User’s Manual • Interface Digital Input 2, terminal block Digital Output 2, terminal block Local Storage MicroSD/MicroSDHC memory card slot (card not included) • General Power Source / PoE Class 3 (IEEE 802.3af) / 9.6W DC 12V / 7.68W...

  • Page 13: Accessing Camera

    KCM-3911 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Hemispheric Cam into the network and your IP device will acquire network address by itself.
  • Page 14 KCM-3911 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
  • Page 15 KCM-3911 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
