Buttons ....................18 Setup Menu ....................20 AV In (Analog Video Live View) ......22 Speed Dome Camera Live View .............. 23 Fixed Camera Live View ................23 Enable PTZ Control Function ..............24 Implementing PTZ Control ..............25 www.acti.com...
Page 3
Cable Testing ................... 35 Power over Ethernet (PoE) ........36 Enable PoE ....................36 PoE Setup ....................37 Power Level ..................37 PoE Measurement ................38 PoE Measurement Display ..............38 Enable PoE after Device Bootup ............39 PoE Auto-shutdown ................39 www.acti.com...
Page 4
Specify Camera Settings............... 47 Add a Camera to List ................48 Setup- IP Camera (Load the Network Settings) ........48 Setup- IP Script (IP Camera API Commands) ........49 Snapshot Setup ............ 50 Image Preview ..................50 Single File Copy ..................50 www.acti.com...
Page 5
All Files Deletion ................... 55 System Setup ............56 Access <Setup- System> ................ 56 Adjust Device Volume ................57 Adjust Device Screen Brightness (Backlight) ........57 Upgrade Firmware ................57 Reset to Factory Defaults..............58 Auto Shutdown ..................59 www.acti.com...
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice.
Page 7
This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition. www.acti.com...
Product Manual Physical Description Front and Right Views Back and Left Views Item Description Power Indicator LED Lights up when the device power is on. Data Indicator LED Flashes when the device is transmitting or receiving data. www.acti.com...
Page 11
Connects to an audio input device, such as a microphone. Stylus Use to tap on the LCD screen. BNC Connector Connects to an analog input device, such as a camera or encoder using BNC connection. Battery Compartment Houses the device battery. www.acti.com...
Page 12
Power Bank Switch Slide the switch to turn the power bank function on or off. When switched on, the PSE input connected to the PSE IN port will supply power to the camera which is connected to the PoE OUT port. www.acti.com...

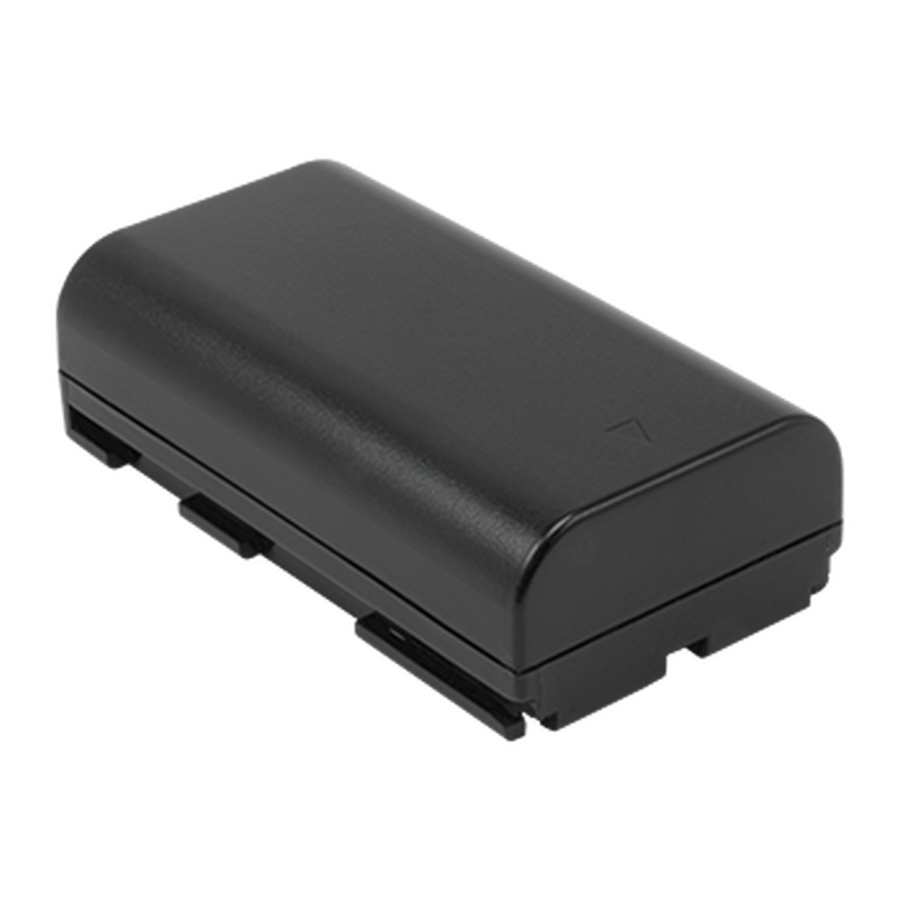

The Charging Indicater LED lights up as the battery is being charged. NOTE: Use only the power adapter that is bundled with the device or approved by the manufacturer. When unplugging the power cord, pull on the plug head and not on the cable. www.acti.com...
2. Press and hold the Power Key for at least 3 seconds. The Power Indicator LED lights up. NOTE: The boot up process may take a while to complete. Touch Panel Calibration For first-time use, the Touch Calibration screen appears. Using the stylus, follow the on-screen instructions to complete the calibration. www.acti.com...
To place the device in the carrying bag, do the following: 1. Insert the outer edge velcro through the bottom slot of the device. 2. Insert the inner edge velcro through the top slot of the device. 3. Attach the sunshield. www.acti.com...
Page 16
Product Manual 4. Close the bag and attach the neck strap. www.acti.com...
3. Connect one end of the network cable to the camera and the other end to the LAN / POE OUT port of the device. The Data Indicator LED flashes and the Main Menu appears after the boot up process completes. www.acti.com...
Click on this icon to go back to the previous page. Enter/Save Enter the submenu of a function or to save settings. View the video display on the LCD screen via the video AV In output of the BNC supported Camera. www.acti.com...
Page 19
PoE Setup Ethernet (PoE) measurement, PoE measurement display, Enable PoE when booting, and PoE auto-shutdown time. Various Setups for cameras and the Camera Installation Setup Kit can be configured here. Each setup is shown in the following section: Setup Menu. www.acti.com...
IP Camera to the Device. Setup - Adjust IP Camera video’s brightness, color level, contrast and sharpness by editing the API IP script commands. Additionally, it is allowed to import the relevant API commands from other IP Camera to the Device. www.acti.com...
Page 21
Setup - Video The Camera Installation Kit’s system settings include volume, LCD brightness, firmware upgrade, factory default reset and auto shutdown setup. The MAC address of the Device is also Setup - System displayed on this page for users’ reference. www.acti.com...
Main Menu, and users can view live video on the LCD screen. To view live video from an IP Camera which supports BNC via AV In function, please make sure the IP Camera streaming is set as “BNC Out”. www.acti.com...
Users may adjust video brightness, contrast or sharpness for different live viewing quality in the <Setup- AV Video> function, which can be accessed by the following path: Setup> Setup- AV> Setup- AV Video. For more detail, please refer to AV Video Setup on page 42. www.acti.com...
Step 3: Select <Enable> from the <Dome type> drop-down list. Step 4: Tap <Enter/Save> to save the setting, and system will automatically direct to the previous screen. Step 5: Tap <Return> to return to the Setup Menu. www.acti.com...
Users may adjust video brightness, contrast or sharpness for different live viewing quality in the <Setup- AV Video> function, which can be accessed by the following path: Setup> Setup- AV> Setup- AV Video. For more detail, please refer to AV Video Setup on page 42. www.acti.com...
Please refer to the following sections for connecting the IP Camera and viewing live video in alternative ways. Connect IP Camera (Direct Connection) Setup for Direct Connecting Tap the <IP Camera> icon on the Main Menu to enter the submenu. www.acti.com...
Tap the text “ZOOM”, and the video will switch to the digital zoom mode (at maximum digital zoom ratio). Meanwhile, the text “P & T” will be displayed on the left bottom of the screen as shown below. www.acti.com...
And press the Up/Down Keys ( for zooming in/out. Exit the Viewing Mode on the Device’s button pad to exit the live view mode, and return to the Press the ESC Key IP Camera Submenu. www.acti.com...
For a custom setting, select <Custom> from the drop-down and then enter the value in the field at the bottom of the setup page. Then tap <CONNECT> beneath the Password column to start connecting. The live view video will be displayed on the screen. www.acti.com...
Product Manual Exit the Viewing Mode on the Device’s button pad to exit the live view mode, and return to the Press the ESC Key IP Camera Submenu. www.acti.com...
For a custom setting, select <Custom> from the drop-down and then enter the value in the field at the bottom of the setup page. After setup, tap <CONNECT> beneath the Password column to start connecting. The live view video will be displayed on the screen. www.acti.com...
Product Manual Exit the Viewing Mode on the Device’s button pad to exit the live view mode, and return to the Press the ESC Key IP Camera Submenu. www.acti.com...
Then the cable’s wire map will be displayed on the screen. Users can check the Step 3: RJ-45 cable for its wiring type (Straight/Crossover) and error connection (Shorts / Open / Miswire). Step 4: Tap <Return> to return to the Main Menu. www.acti.com...
Device is now providing power to the IP Camera. Step 3: The <PoE ON> icon will turn into <PoE OFF> when the PoE is enabled. Users may tap <PoE OFF> to turn off the PoE function. www.acti.com...
Power Level The output Power Consumption Level range can be set according to different needs. The options include <Very Low(~3W)>, <Low(3~5W)>, and <Mid-High(6~25W+EXT 12V)>. NOTE: Please make sure the PoE function is off before Power Level setting. www.acti.com...
Measurement information on the screen while using PoE. PoE Measurement Display There are several combinations in <PoE Measurement Display>, select from the drop-down list to show PoE Measurement information including Voltage (V), Current (I), and Power Consumption (P) in different combination. www.acti.com...
Device as the PSE. The reminder of PoE shutdown will pop out around 5 seconds in advance of shutting down. Tap <Enter/Save> to save all the settings and you will then automatically directed to the Main Menu. Or tap <Return> to exit the setting page without saving settings. www.acti.com...
Files in USB / SD For files that are saved to the USB drive or Micro SD card will automatically be in the created folder named “IMAGE-DATA”. Each snapshot’s description can be found in the attached .txt file. www.acti.com...
In the IP Camera’s live view mode, tap the white text “REC” on the right top corner of the live view screen to start Video Recording. During the recording process, the text will be in red. Tap the text “REC” one more time to stop Video Recording, and the text will be back in white again. www.acti.com...
Setup Menu to enter the AV Setup Screen, and then tap <Setup- AV Video> to enter the setting page as shown below. In the <Setup- AV Video> setting page, the live video is displayed on the upper screen. www.acti.com...
Tap <Setup> on the Main Menu and enter the Second Screen. Step 2: Tap <Setup- AV> on the Setup Menu to enter the AV Setup Screen, and then tap <Setup- AV Dome> to enter the setting page as shown below. www.acti.com...
Select the baud rate for the Speed Dome Camera from the drop-down list. Set the ID Address Enter the three-digit ID address. Tap <Enter/Save> to save all the settings and you will then automatically directed to the previous page. Or tap <Return> to exit the setting page without saving settings. www.acti.com...
<Setup- IP Camera> Access <Setup-IP Connection> and <Setup-IP camera> Step 1: Tap the <Setup> icon on the Main Menu to enter the Second Screen. Step 2: Tap <Setup- IP> on the Setup Menu, and then enter the IP Setup Submenu. www.acti.com...
Page 46
Product Manual The <Setup- IP Connection> icon and <Setup- IP Camera> icon are in the IP Setup Submenu. www.acti.com...
Specify Camera Settings Please specify the IP address, camera type, user name, password, HTTP Port, streaming settings (Streaming port / Format / Protocol), etc. of the connected IP Camera in each column by the stylus touch pen. www.acti.com...
Then enter <Setup- IP Connection> to change camera settings. Reload the Settings to the IP Camera After making network setting changes, users may tap the <Set to Camera> button on the top of the setup page to reload the network settings to the camera. www.acti.com...
USB stick (name the file script.txt). Tap <Save> button to save the settings, or tap <Enter/Save> to save and return to the previous screen. Tap <Return> to exit the setting page without saving settings. www.acti.com...
Tap the file name in the list to Copy, and then tap the <Copy> icon in <File Manager> section below <Image Preview>. Select the location to copy the file to in the pop out window, and then tap <Enter/Save> www.acti.com...
Tap the <Select All> icon in <File Manager> section below <Image Preview> to select all the files in <File List>. Then tap the <Delete> icon to delete all the files. Tap <OK> on the pop out window to allow all files deletion. www.acti.com...
Step 1: Tap the <Setup> icon on the Main Menu to enter the Second Screen. Enter <Setup- Video> by tapping the icon. Step 2: Tap <Video- Rec setup> icon on the Video Setup Screen to access video recording setup page. www.acti.com...
Page 53
And then enter the file name and description respectively for the snapshot. Tap <Enter/Save> to save all the settings and return to the live view mode, or tap <Return> to exit the setting page without saving settings. www.acti.com...
<Playback> button on the bottom, the video will appear as full screen. key on the Device’s button pad to stop In the Video Playback mode, press the <ESC> playback and return to video playback page. www.acti.com...
Tap the <Select All> icon in <File Manager> section below <Image Preview> to select all the files in <File List>. Then tap the <Delete> icon to delete all the files. Tap <OK> on the pop out window to allow all files deletion. www.acti.com...
Installation Kit’s LCD screen, implement firmware upgrade, restore all the system settings to factory default and auto shutdown time. Access <Setup- System> Step 1: Tap the <Setup> icon on the Main Menu. Step 2: Tap the <Setup- System> icon on the Setup Menu to enter the Device’s system setup page. www.acti.com...
Tap the <Auto Control> tick box again to cancel the selection; then the slider bar above will become movable again. Upgrade Firmware Before implementing firmware upgrade, please make sure the firmware is located in the path: “upgrade\upd_dt02s\” in your USB drive. Step 1: Tap the <Upgrade> button, and the file selection dialogue will come out. www.acti.com...
Reboot the Camera Installation Kit after system reset. You will be first directed to the Touch Panel Calibration mode as shown below. Step 4: Tap the flashing cross on the left top of the screen. And then hit the other flashing cross located diagonally. www.acti.com...
The screen mode will switch to Main Menu after Touch Panel Calibration is completed. Auto Shutdown The system can be automatically shutdown after pre-determined time range when idle. Select the specific time interval from the drop-down list for system auto shutdown. To disable the <Auto Shutdown> function, please select <OFF>. www.acti.com...
