RS Stock number
Packed Weight and Dimensions
RS Code
8771791
RS, Professionally Approved Products, gives you professional quality parts across all products categories. Our range has
been testified by engineers as giving comparable quality to that of the leading brands without paying a premium price.
RS, Professionally Approved Products, gives you professional quality parts across all products categories. Our range has
been testified by engineers as giving comparable quality to that of the leading brands without paying a premium price
877-1791
Description
Electronic Micrometer 0-150mm / 0 -6"
Protection: IP 54 Splash Proof
DIN 863/1
Clear LCD Display
Metric/Inch Conversion
Relative & Absolute Modes
Resolution 0.001mm/0.0005"
Tungsten Carbide Anvils
Ratchet Stop
Spindle Lock
Setting Rods

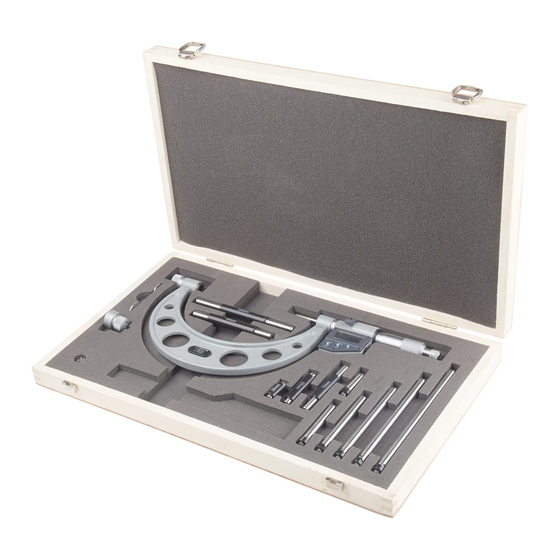

Supplied in fitted case
Weight g
1960
RS Code
Range
mm/1nch
8771791
0-150
Power:
1 x SR44: 1.5V battery
2 Locking Device
3 Thimble
4 Ratchet Stop
5 ON/OFF & SET Button
6 ABS/INC & UNIT Button
7 Data Output button (not available)
8 Battery cover
W mm
H mm
L mm
265
45
425
A
L
mm
mm
82
158
ENGLISH
Accuracy
mm
0.003
.
Advertisement
Related Manuals for RS PRO 877-1791
Summary of Contents for RS PRO 877-1791
- Page 1 ENGLISH RS Stock number 877-1791 Protection: IP 54 Splash Proof DIN 863/1 Clear LCD Display Metric/Inch Conversion Relative & Absolute Modes Resolution 0.001mm/0.0005” Tungsten Carbide Anvils Ratchet Stop Spindle Lock Setting Rods Supplied in fitted case Packed Weight and Dimensions...
- Page 2 ENGLISH Button Functions: ON/OFF Press and release to turn micrometer ON or OFF Press and hold for 2 seconds for preset function in Absolute mode ABS/INC Press and release to change between Absolute and Relative modes UNIT Press and hold for either metric or inch modes Data Output not available : Inch Mode INC : Relative Measuring...
- Page 3 ENGLISH Products Details Measuring Force: 5 – 10N Power Consumption: Greater than 35 milliamps Operating Temperature: 0 – 40 deg.C Storage Temperature: -20 to 60 deg. C Protection Class: IP54 (resistant to water splash) Operating Care Clean measuring faces with a clean soft cloth only Do not use any organic solvent for cleaning such as acetone etc.
- Page 4 ENGLISH Mechanical Thimble and Sleeve Reading Example: Metric When reading the micrometer ensure that your line of sight is directly above the graduated scale on the sleeve and the thimble scale to avoid parallax reading errors Cleaning and Basic Checking Procedure Remove any oil, grease, dust or small particles which may cause damage to the micrometer or affect its accuracy when taking measurements.
