Summary of Contents for BFT K 130

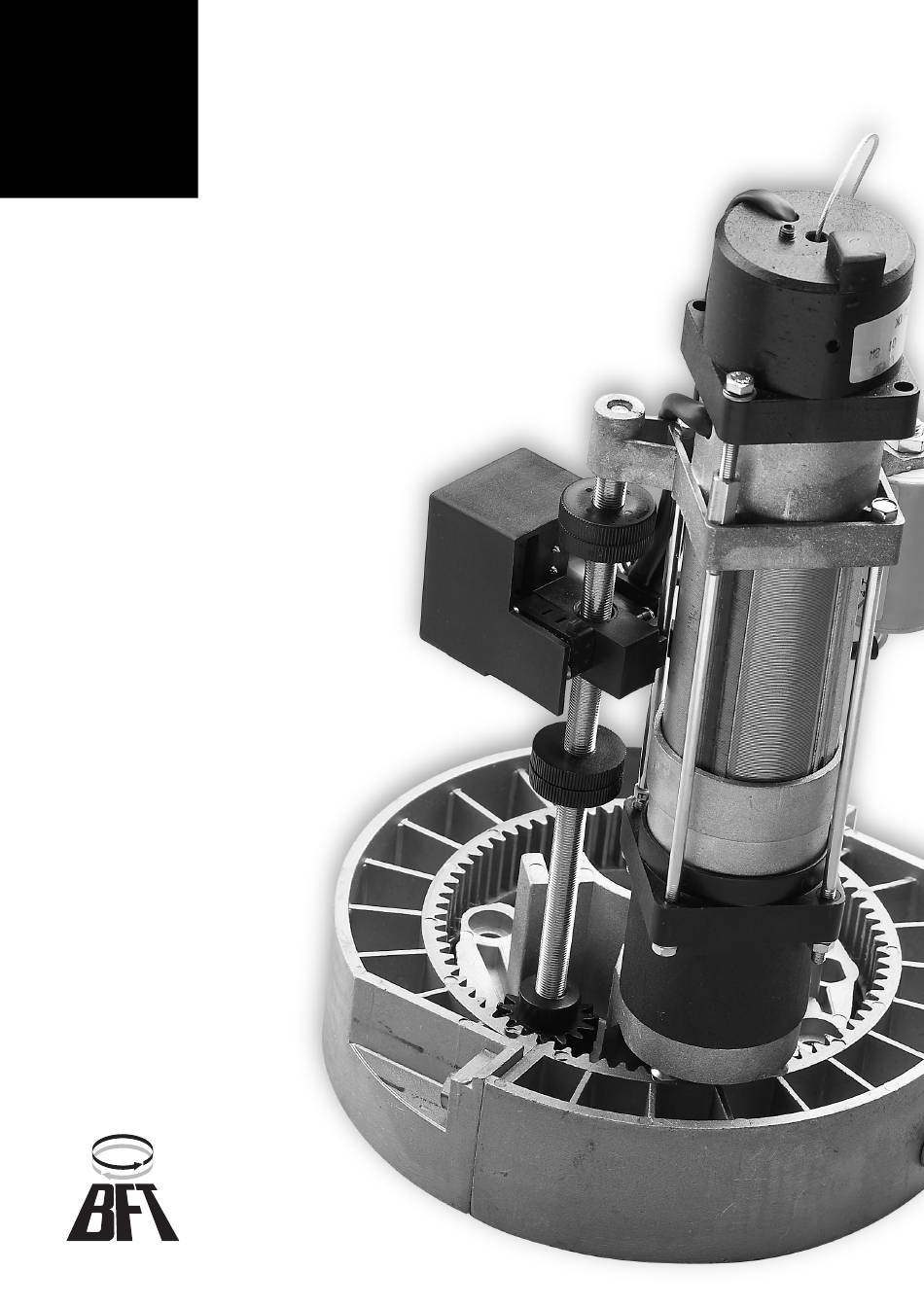

- Page 1 K 130 K 130 PEF D811010 23-07-98 Vers. 01 AUTOMATION FOR ROLL-UP DOORS...
- Page 2 K 130 - K 130 PEF K 130 - K 130 PEF This product complies with the recognised technical standards and safety For the electric system connection with safety photocell and radio control fol- regulations. low diagram (fig. 12). We declare that this product is in conformity with the following European I) Main switch with 5 Amp.
- Page 3 K 130 - K 130 PEF K 130 - K 130 PEF accidental blow might have caused friction between the rotor and stator. In this case adjust the four motor fastening tie-rods until you achieve the cor- rect running of the rotor.
- Page 4 K 130 - K 130 PEF K 130 - K 130 PEF Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 AUTOMATION FOR ROLL-UP DOORS AUTOMATION FOR ROLL-UP DOORS...
- Page 5 K 130 - K 130 PEF K 130 - K 130 PEF Fig. 13A Fig. 14 Fig. 13 Fig. 15 Fig. 16 AUTOMATION FOR ROLL-UP DOORS AUTOMATION FOR ROLL-UP DOORS...
- Page 6 K 130 - K 130 PEF K 130 - K 130 PEF Fig. 17 AUTOMATION FOR ROLL-UP DOORS AUTOMATION FOR ROLL-UP DOORS...
