Star Split Phantom
Star Split Phantom
™
Model ULB24-DLP

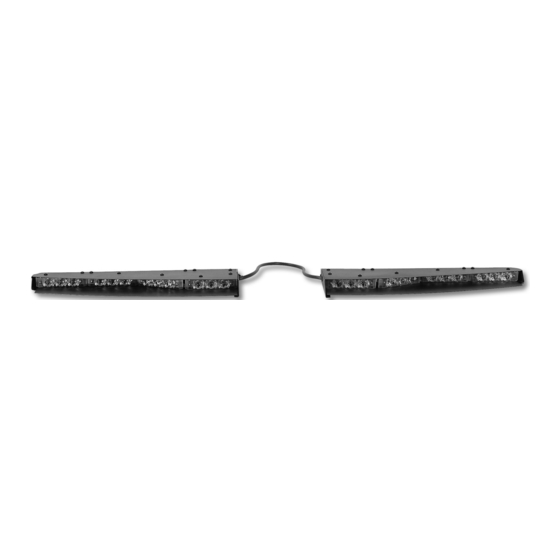

Undercover Interior LED Split Lightbar
With Takedown and Directional Pursuit Lights
(Gen 4 Starburst LEDs)
Please Note: These instructions are provided as a general guideline only. Specific
mounting and/or wiring, may be necessary and are the sole responsibility of the
installer. Star Headlight & Lantern Co., Inc. assumes no responsibility for the
integrity of the installation for this or any of its products.
PLIT450 REV. F
12/26/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Star Headlight & Lantern Split Phantom ULB24-DLP
Summary of Contents for Star Headlight & Lantern Split Phantom ULB24-DLP

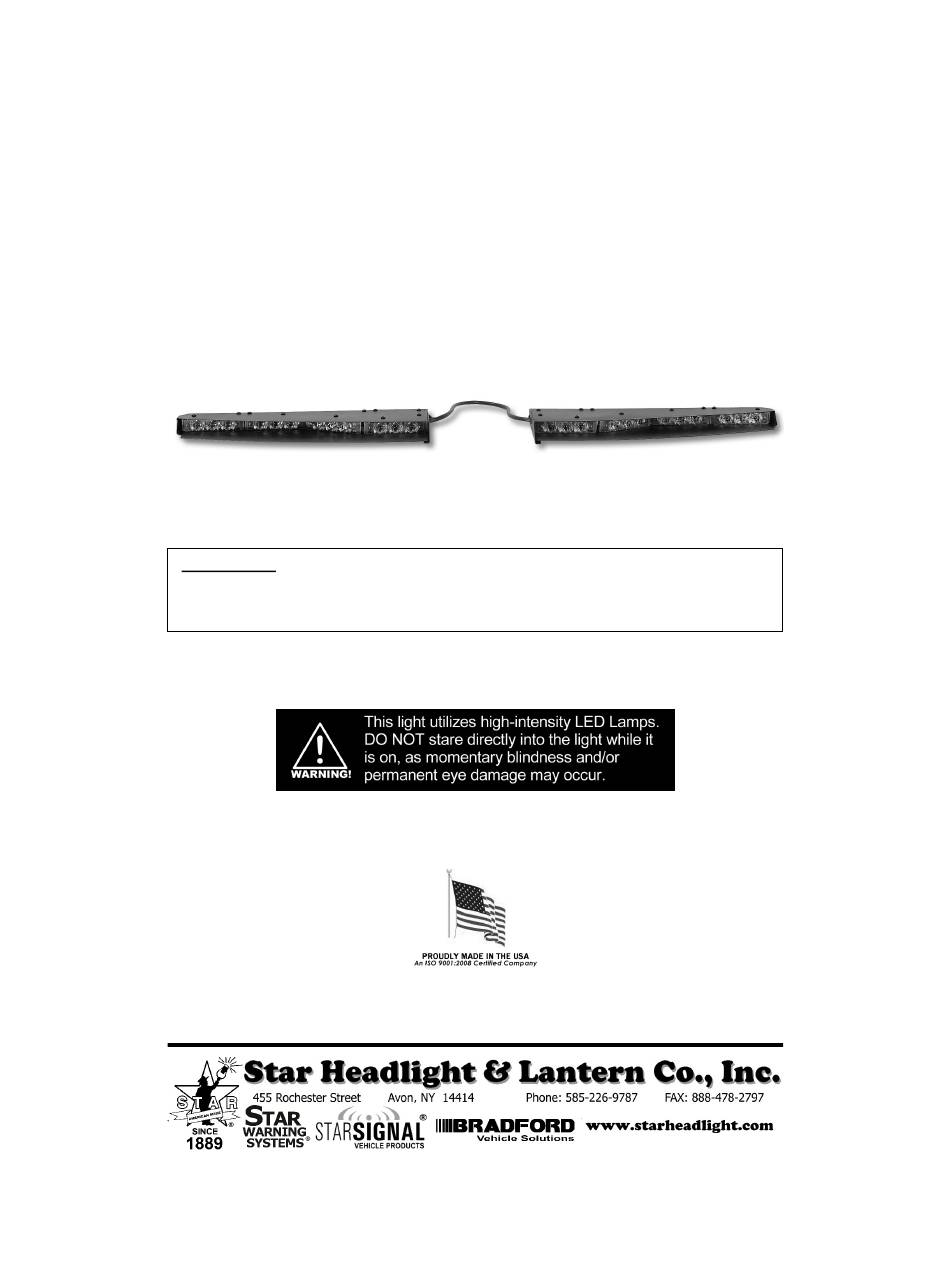

- Page 1 Star Split Phantom Star Split Phantom ™ Model ULB24-DLP Undercover Interior LED Split Lightbar With Takedown and Directional Pursuit Lights (Gen 4 Starburst LEDs) Please Note: These instructions are provided as a general guideline only. Specific mounting and/or wiring, may be necessary and are the sole responsibility of the installer.
- Page 2 IMPORTANT: Please read all of the following instructions before installing your new Split Phantom ™ LED undercover lightbar. CAUTION: Please be sure to check that your cigarette plug outlet is properly fused. Testing the light before this fuse is properly installed will void the warranty on the light.
- Page 3 Baffle Adjustment 1. After the light has been mounted (see separate mounting instructions), if adjustments permit, slide the light forward until the top of it is touching the windshield. 2. Loosen the baffle screws and carefully slide the baffle forward until the gasket is forced slightly downward by the pressure of the windshield.
- Page 4 Wiring For proper installation and full operability, this light requires a 10.5A ignition switched power source, connections to the negative terminal of the battery, and four external switches rated for a minimum 1A (user supplied). ORANGE w/RED - Flashing Warning Lights GREEN w/RED - Steady Burn Warning Lights WHITE w/BROWN - Pursuit Lights (Flashing DLP)
- Page 5 Operation (CONT'D) Pattern Select/Burst Mode Button The button on the right half of the light is the Pattern Select/Burst Mode button. This is a momentary switch and has four different functions, depending upon which mode the light is in (i.e. which wire is activated). Please note that this button only functions properly if ONLY the single wire indicated has +12VDC applied to it.
- Page 6 Pattern List Slow Warn * Fast Warn Superfast Warn Warn Fade Pre-Pop Warn All Singleflash Alt. Tripleflash All Tripleflash Alt. Quadflash w/Post Pop 10 All Quadflash w/Post Pop 11 Alt. Quintflash 12 All Quintflash 13 Alt. Pre-pop Quintflash 14 All Flicker 15 Alt.
- Page 7 Service These lights use state-of-the-art Light Emitting Diode (LED) technology. These warning lights are comprised of ultra-high intensity LEDs that are controlled by a solid state flasher unit to efficiently produce light output with lifetimes up to 100,000 hours. Under normal circumstances, you will not need to replace any LEDs in this light.
- Page 8 NOTICE Due to continuous product improvements, we reserve the right to change any specifications and/ or information contained in this manual at any time without notice. Star Headlight & Lantern Co., Inc. makes no warranty of any kind with regards to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
