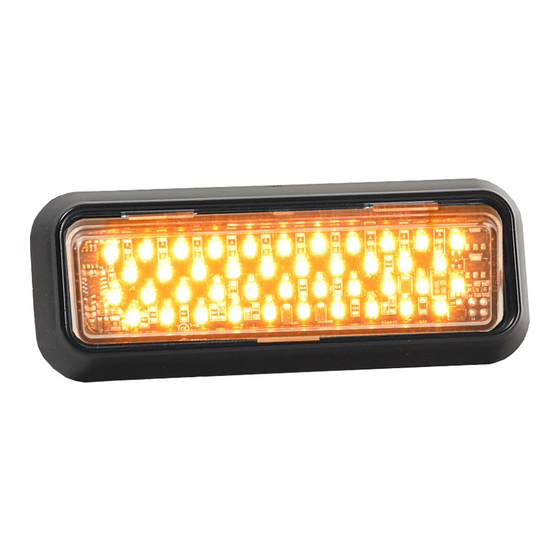

- Page 1 INSTALLATION AND INSTRUCTION MANUAL DLHT Thinline LED Hazard Lights DLHT-121*** (12 VDC) DLHT-241*** (24 VDC) DLHT-124*** (12 VDC) DLHT-244*** (24 VDC) PLIT439 REV. C 7/22/20...
- Page 2 Installation Notes Installer must have firm knowledge of vehicle electrical systems & emergency equipment. It is the sole responsibility of the installer to ensure the warning light is secure. The manufacturer assumes no responsibility for the secure mounting of this light. ...
- Page 3 Mounting Please Note: These instructions are provided as a general guideline only. Some vehicles may require special mounting, wiring, and/or weather-sealing. This is the sole responsibility of the installer. Star Headlight & Lantern Co., Inc. assumes no responsibility for the integrity of the installation for this or any of its products. 1.
- Page 4 Wiring When wiring your lights, it is recommended that you take the following precautions to reduce any Electromagnetic Interference (EMI). Keep LED modules and any radios as far away from each other as possible. Separate the radio wires and the LED wires. ...
- Page 5 (PROGRAMMING CONT'D) A. Split/Single Mode Programming You will need to determine whether you wish to run your light(s) in Split Mode or in Single Mode. Single Mode Alternating Pattern Simultaneous Pattern (Programmed for opposite Phases) (Programmed for same Phase) In Single Mode, the two halves of Light 1 Light 2 Light 1...
- Page 6 (PROGRAMMING CONT'D) B. Opposite Light Function When your lights are activated in Warning Mode and you turn on your Turn Signal (blinker), the corresponding head will flash in conjunction with your turn signal. By default, the opposite light will illuminate in a steady burn mode. If instead you would like the opposite light to continue flashing in the pre-programmed warning pattern or turn OFF when the Turn Signal is activated, proceed below: Connect the Black, Red, and White wires as indicated below.
- Page 7 Optional Mounting 274-DLXT-W 274-DLXT-U 274-DLXT-1X2 274-DLXT-T 274-DLXT-45 274-DLXT-RL 274-DLXT-2X1...
- Page 8 LED FIVE YEAR LIMITED WARRANTY The manufacturer warrants this LED light against factory defects in material and workmanship for five years after the date of purchase. The owner will be responsible for returning to the Service Center any defective item(s) with the transportation costs prepaid.
