  • Page 1 T-ZERO Operator Manual Version 1.0 February 2020 21-10096A_REV00...

  • Page 2: Table Of Contents

    Operating in Advanced Mode ......................19 Creating a Recipe ..........................21 Loading a Recipe ..........................24 Modifying a Recipe ........................... 26 Adjusting the Tilt on the T-ZERO ..................... 27 Adjusting Conveyor Height ....................... 30 Emptying the Trim Bin ........................31 Troubleshooting ..........................32 Trim Bin filled above the hose .......................
  • Page 3 Trim to flower ratio is too high ....................... 35 Product will not exit the tumbler ..................... 35 Product is sticking to the inside of the tumbler ................36 Tumbler is bouncing around while rotating ..................36 Conveyor belt is not moving ......................36 Contact Us ............................

  • Page 4: Warranty Information

    Allow only persons who have read and understood this manual to operate the T-ZERO. Keirton claims no liability for any damage or injury that results from the use of the T-ZERO by persons who have not read and understood the cautions contained in this manual or through any misuse of the T-ZERO.

  • Page 5: Important Safety Information

    DO NOT REMOVE SAFETY LABELS. REPLACE SAFETY LABELS IF THEY BECOME DAMAGED OR OBSCURED. • Lock out power to the T-ZERO before trying to free any jammed parts, disassembly, or performing maintenance. DO NOT PROCESS ANYTHING OTHER THAN PLANT MATTER. THE T-ZERO IS DESIGNED ONLY FOR PLANT MATTER.

  • Page 6: Before Operating The T-Zero

    Make sure you wear personal protective equipment. DO NOT OPERATE WITH LOOSE CLOTHING OR UNCONFINED HAIR. EAR PROTECTION IS MANDATORY. • Inspect the area around the T-ZERO and remove hazards to yourself, others, and the T-ZERO. • Inspect the T-ZERO for damage and any loose parts.

  • Page 7: While Operating The T-Zero

    Watch for pinch hazards around the tumbler. • Never reach inside the tumbler for any reason while in operation. DO NOT ATTEMPT TO FREE ANY JAMMED PARTS WHILE THE T-ZERO IS IN OPERATION. • Make sure water pressure does not exceed 100 psi.

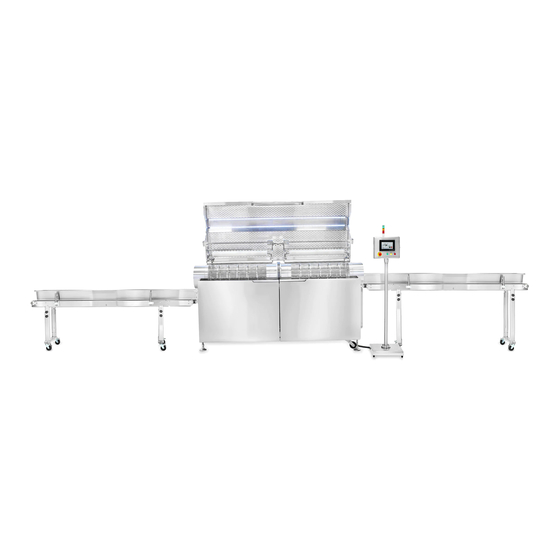

  • Page 8: System Overview

    SYSTEM OVERVIEW DISCLAIMER Keirton reserves the right to make design changes and/or improvements in the products they manufacture at any time. Specifications are subject to change without notice.

  • Page 9: Trimmer Overview

    TRIMMER OVERVIEW...

  • Page 11: Horizontal Cyclone Overview

    HORIZONTAL CYCLONE OVERVIEW...

  • Page 12: Hepa Filter Stack Overview

    HEPA FILTER STACK OVERVIEW...

  • Page 13: Conveyor Overview

    CONVEYOR OVERVIEW...

  • Page 14: Powering The T-Zero

    DO NOT OPERATE WITHOUT CONVEYORS ALIGNED AND GUARDS INSTALLED. 3. Turn on power supply to the T-ZERO. Note: It takes about two minutes for the T-ZERO HMI to completely power on. 4. Turn the Pulse Jet on the HEPA Filter Stack to Continuous Cleaning.
  • Page 15 6. Tap Continue to start on the HMI screen. The HMI goes into Automatic mode. Note: The T-ZERO also has physical buttons for start, empty and stop on the enclosure below the HMI screen. All buttons will work if the HMI does not power on.

  • Page 16: Operating Modes

    *Lifting Legs do not adjust automatically; the machine angle is saved but must be adjusted in Advanced Mode after loading the recipe (for instructions see Adjusting the Tilt on page 27). Advanced Mode allows you to change the settings on the T-ZERO, such as: • Starting and stopping motors individually. •...

  • Page 17: Operating In Automatic Mode

    OPERATING IN AUTOMATIC MODE Automatic Mode is a simplified way to run the T-Zero. Automatic mode only allows the user to load a recipe then start, stop or empty the machine. Note: Due to safety reasons, adjusting the machine tilt is only available in Advanced Mode.
  • Page 18 Countdown timers appear on motors pending to start. The delay time for each can be modified in Engineering Mode (explained in the Maintenance and Cleaning Manual). After each motor has started, the HMI will display the setpoint and the current draw of each machine.

  • Page 19: Emptying The T-Zero

    EMPTYING THE T-ZERO The orange EMPTY button on the T-ZERO shuts off the feed conveyor, blades, and vacuum, then keeps the tumbler and QC conveyor running to allow product to flow out of the machine. Press this button after the feed conveyor has emptied and most product has flowed down to the second tumbler.

  • Page 20: Stopping The T-Zero

    STOPPING THE T-ZERO There are 3 different buttons to shut down the T-Zero: the HMI stop button, the physical stop button, and the emergency stop button. Use the emergency stop any time there is a safety issue, or anything unexpected happens with the machine.

  • Page 21: Timers

    In the bottom right corner of the HMI screen there are two timers. The timer on the right shows the total run-time on the T-ZERO. This timer doesn’t automatically reset, but it can be reset through Engineering Mode (explained in the Maintenance and Cleaning Manual).

  • Page 22: Operating In Advanced Mode

    OPERATING IN ADVANCED MODE To switch to the T-ZERO Advanced mode, tap the Advanced Mode button from the Automatic Mode screen. The HMI screen will switch to the Advanced mode.
  • Page 23 MACHINE TILT CONTROL MUST BE UNLOCKED BEFORE USE. IT CANNOT BE ADJUSTED WHILE ANY MOTORS ARE RUNNING. SEE ADJUSTING THE TILT PAGE 27 FOR MORE INFORMATION. Advanced Mode allows the operator to make adjustments to the motor speeds. All motors are controlled using a similar layout to the tumbler motor shown below: •...

  • Page 24: Creating A Recipe

    CREATING A RECIPE Recipes are a saved combination of setpoints which relate to different product strains. To save the machine setpoint to a recipe: 1. Go to the Advanced mode (for details, see Operating in Advanced Mode page 19). 2. Adjust the trimmer to the desired setpoints. All parameters can be changed while the machine is running except for the machine tilt angle.
  • Page 25 5. Tap the Key icon. The key will turn into an edit icon, and the Load buttons will change to Save buttons. 6. Save the recipe: a. Tap the Save button next to the recipe slot you would like to modify.
  • Page 26 b. A pop-up message will appear asking if you want to overwrite the data record. The old settings are still saved under the original recipe name; these must be overwritten to permanently modify the recipe. Tap Yes to overwrite. Note: The recipe will be saved in the HMI’s memory and will remain even if the machine is powered off.

  • Page 27: Loading A Recipe

    LOADING A RECIPE To load a recipe on the T-ZERO: 1. Tap the Recipe button on the HMI screen. 2. Tap the recipe name from the list. 3. Tap the Load button to the right of the recipe name. The recipe name you selected will appear in the top right corner of the screen.
  • Page 28 5. Manually set the tilt of the machine to the setpoint shown underneath the actual angle of the machine. This will be saved in the recipe (for instructions on how to operate the lifting legs, see Adjusting the Tilt on the T-Zero on page 27). •...

  • Page 29: Modifying A Recipe

    21). The machine is designed to allow all motors except for the lifting legs to be adjusted while in operation (to adjust the tilt see Adjusting the Tilt on the T-ZERO on page 27). To modify a recipe: 1.

  • Page 30: Adjusting The Tilt On The T-Zero

    ADJUSTING THE TILT ON THE T-ZERO The infeed side of the T-ZERO has the powered lifting feature which allows the operator to adjust the tilt on the trimmer to a maximum of 7°. The angle on the T-ZERO plays an important role on how fast product moves through the T-ZERO and how full the tumbler gets during operation.
  • Page 31 2. Once all motors have come to a complete stop, tap Advanced Mode button (located at the top right of the screen). 3. Check the T-ZERO’s immediate surroundings to make sure no one or anything is near it. 4. Make sure both conveyors are at least 6” away from the machine and all cables are clear of the lifting feet.
  • Page 32 8. Tap the Lower or Raise button to adjust the tilt on the T-ZERO. When loading a recipe, adjust the machine until the ACTUAL reading matches the SETPOINT reading to set the trimmer at the correct angle (the actual reading states what angle the machine is currently at).

  • Page 33: Adjusting Conveyor Height

    ADJUSTING CONVEYOR HEIGHT IMPORTANT SAFETY INFORMATION o The conveyor is heavy. Always use at least two people for the following tasks. o Always move the conveyors away from the machine before adjusting the height. o DO NOT LIFT CONVEYORS FROM THE TENSIONING END (highlighted in green to the right).

  • Page 34: Emptying The Trim Bin

    4. Empty the bin using your facilities SOP. 5. Reinstall the bin to the T-ZERO. Note: It is also recommended at this point to verify that there are no blockages in the ducting from the cyclone exit into the bin.

  • Page 35: Troubleshooting

    5. Inspect the cyclone, bin, and connections for leaks. Leaking components or an improperly assembled system can cause excess trim to pass through the cyclone. IF THE DIFFERENTIAL PRESSURE IS NOT WITHIN THE ACCEPTABLE RANGE AFTER CLEANING THE PRIMARY FILTERS, ARRANGE FOR THE T-ZERO TO BE SERVICED.

  • Page 36: Motor Won't Turn On

    MOTOR WON’T TURN ON If any motor won’t turn: 1. Verify that the T-ZERO is connected to power and that the power is on. 2. Check for the Ack Err (Acknowledge Error) button on the HMI. If the Ack Err button appears on the HMI screen: a.

  • Page 37: Trim Quality Is Low

    Maintenance and Cleaning manual. 10. Make sure the T-ZERO is off, and make sure tumbler is filled approximately ⅓ full. Note: To optimize tumbler fill, the objective is to have the product fall after it passes the...

  • Page 38: Trim To Flower Ratio Is Too High

    11. Make sure the feed conveyor is filled to a consistent height when feeding the T- ZERO. Note: Fluctuations in product feed rate can cause inconsistent flow inside the T-ZERO and will result in low trim quality. 12. Observe the product in the tumbler and make sure there is no surging.

  • Page 39: Product Is Sticking To The Inside Of The Tumbler

    tumbler can hold more product. It will also reduce the airflow to the exit side. This evens out product distribution in the tumbler, allowing the product to exit. 3. If a very dry or low-density product is used, the fan speed can be reduced to allow product to exit the tumbler.

  • Page 40: Contact Us

    CONTACT US Keirton Technical Support is available at 1-888-254-3204 between 7 a.m. and 7 p.m. Pacific Time, seven days a week.
