Summary of Contents for Twister T6

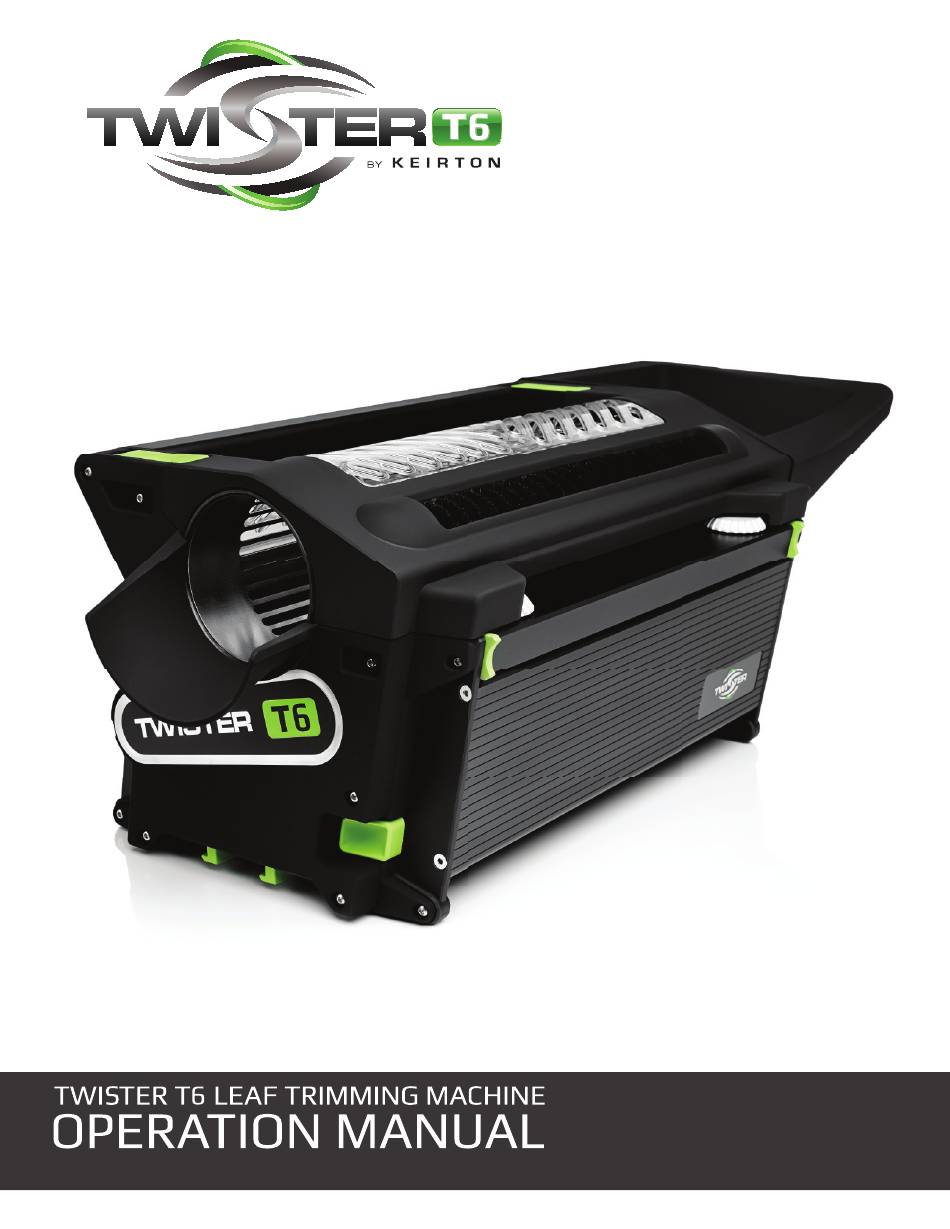

- Page 1 Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Information Component Overview Initial Assembly T6-Leaf Collector Parts List and Assembly Setup and Operation Leg Leveler Bed Knife Clicker Controls Bed Knife Adjustment Tandem Setup Tandem Leg Leveler Tandem Disassembly Maintenance Inspection Cleaning Disassembly Instructions... -
Page 3: Important Safety Information
Never conduct maintenance while the T6 is plugged in. Ensure the T6 is powered off and the machine is unplugged before cleaning. Do not change or modify any part of the T6 or its accessories. Doing so may cause bodily harm or damage to property. -
Page 4: Component Overview
COMPONENT OVERVIEW HOPPER HANDLE LEG ADJUSTER CONTROL BOX TANDEM PLATE CONTROL BOX CAM ADJUSTABLE LEGS VACUUM INLET LID LATCHES REEL BLADE TUMBLER CHUTE BED KNIFE CLICKERS BED KNIFE BELT COVER TANDEM SLIDER INITIAL ASSEMBLY REMOVE LID AND TUMBLER NEVER PLUG IN MACHINE WITH LID REMOVED www.twistertrimmer.com... - Page 5 INSTALL CHUTE THEN REINSTALL TUMBLER INSTALL HOPPER REINSTALL LID www.twistertrimmer.com...
-
Page 6: T6-Leaf Collector Parts List And Assembly
T6-LEAF COLLECTOR (T6-LC) PARTS LIST PART NO DESCRIPTION 23-02-002101 4” HOSE CUFF 23-02-002102 4” HOSE X 8.25’, PVC 23-02-002103 5” BAG CLAMP, QUICK CONNECT 23-02-002104 BLACK FILTER BAG, 5” MOUNT, 200-400 MICRON 23-02-002105 WHITE FILTER BAG, 5” MOUNT, 70 MICRON... -
Page 7: Setup And Operation
SETUP AND OPERATION APPLY DISH SOAP OR ISOPROPYL ALCOHOL TO THE INSIDE OF THE HOSE CUFF TO HELP TWIST IT ON. INSTALL BLACK BAG FIRST POWER OFF POWER ON/RESET LEG LEVELER HIGHER LEG HEIGHT MEANS FASTER THROUGHPUT www.twistertrimmer.com... -
Page 8: Bed Knife Clicker Controls
To properly align the blades, rotate the clickers away from the “+” until you feel a resistance. This is maximum clearance. Make sure both blades are clean then turn the T6 on (refer to the maintenance section for cleaning instructions). It then takes about two full turns toward the “+” to start making blade contact. Make sure to rotate both clickers simultaneously with each hand. -
Page 9: Tandem Setup
TANDEM SETUP TOOLS NEEDED The T6 is designed for quick setup to easily link multiple units for increased throughput. FRONT AND BACK MACHINE BACK MACHINE BACK MACHINE FRONT MACHINE FRONT MACHINE www.twistertrimmer.com... - Page 10 BACK MACHINE FRONT AND BACK MACHINE When linking more than two machines, remove the chute, belt cover and hopper from middle machine(s) www.twistertrimmer.com...
-
Page 11: Tandem Leg Leveler
MAINTENANCE The T6 is a precision machine. It is essential that it is operated and cared for with this in mind. It has been adjusted and tested by the manufacturer for optimal performance. However, at initial startup and at the begin- ning of each use, it is important to inspect the machine for any damage, plant material buildup and check to ensure the blades spin freely before operating. -
Page 12: Inspection
Cleaning A thorough cleaning of the T6 and T6-LC should be performed after each use. Any resin buildup on the machine attracts more resin, compounding the problem. Buildup can cause decreased performance, overheat- ing and could trip your circuit breaker. -
Page 13: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS www.twistertrimmer.com... - Page 14 www.twistertrimmer.com...
-
Page 15: Reassembly Instructions
REASSEMBLY INSTRUCTIONS ENSURE LOBE IS FACING DOWN www.twistertrimmer.com... - Page 16 www.twistertrimmer.com...
- Page 17 www.twistertrimmer.com...
-
Page 18: Troubleshooting
This may require a replacement tumbler. 2. Control box is very hot The control box can get very hot if the T6 is run for long periods - this is normal. The motor is thermally protected and will turn off if it becomes too hot. -
Page 19: Warranty
T6 by persons who have not read and understood the cautions contained in this manual or through any misuse of the T6. You are responsible for your safety while operating this machine -... -
Page 20: Electrical Specifications
Current Draw Blade Motor 200W / 0.25HP Cut Height .040in / 1mm Discharge 4in / 10.1cm Weight 42lbs /19kg Shipping Weight (w/ T6-LC) 90lbs / 54.4kg Length 30in / 76.2cm Width 11in / 27.9cm Height 10in / 25.4cm Circuit Breaker Required... -
Page 21: Replacement Parts
T6 LEAF TRIMMER PARTS LIST PLANT M ONLY! IMPROPER USE MAY RESULT IN DAMAGE OR BODILY HARM! PLEASE READ THE INSTRUCTION MANUAL AND WEAR EYE PROTECTION! PART NO DESCRIPTION 11-00-000268-P BED KNIFE (BLADE ONLY) 15-01-000286-P POWER CORD, 6FT LONG 17-00-000256-P... - Page 22 www.twistertrimmer.com...
