Instructions – Parts List

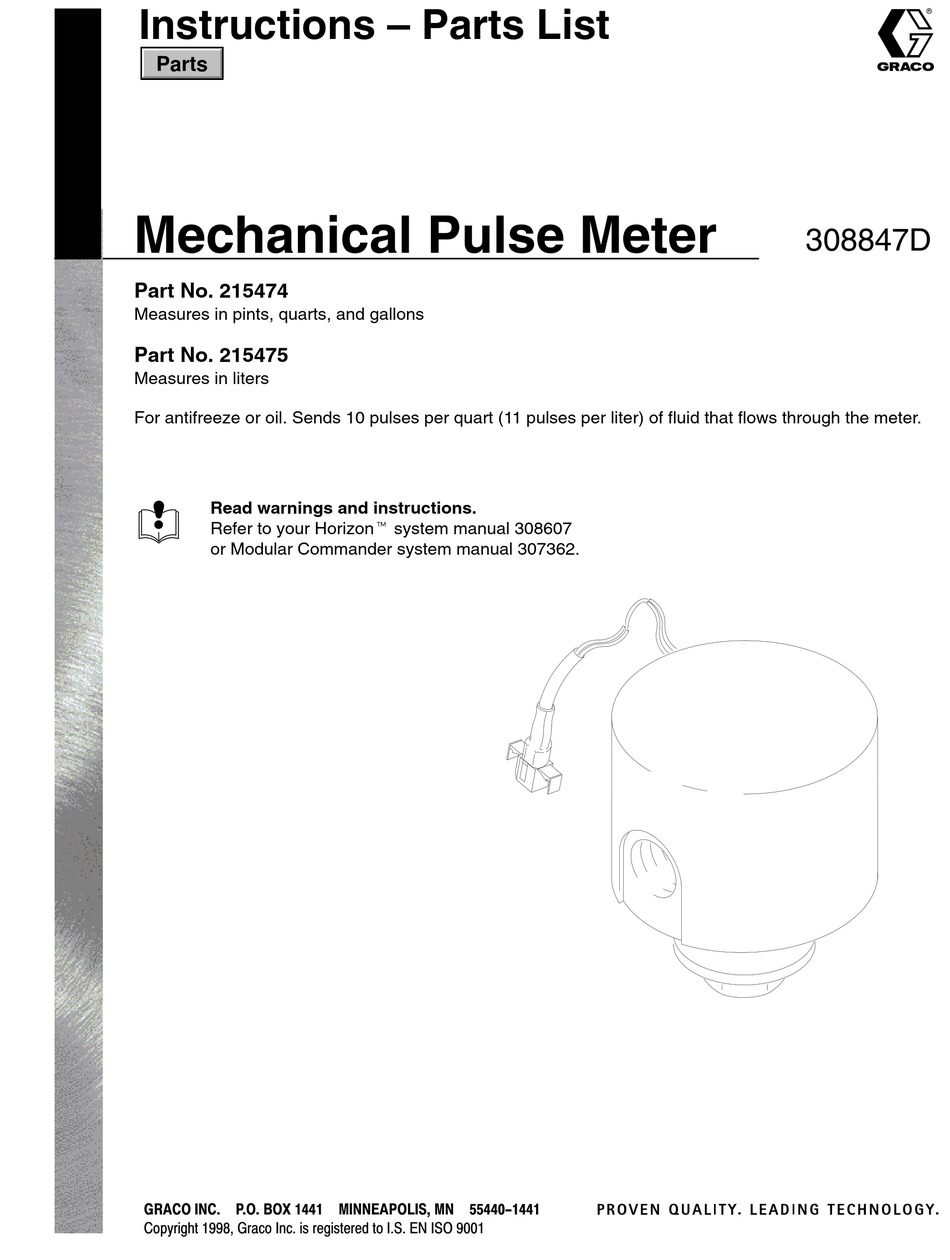

Mechanical Pulse Meter
Part No. 215474
Measures in pints, quarts, and gallons
Part No. 215475
Measures in liters

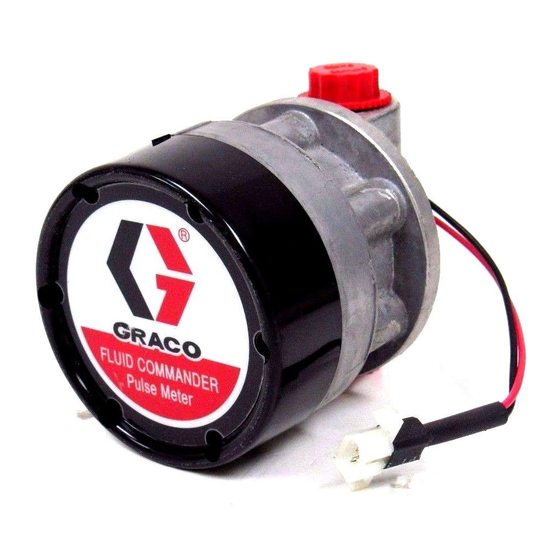

For antifreeze or oil. Sends 10 pulses per quart (11 pulses per liter) of fluid that flows through the meter.
Read warnings and instructions.
Refer to your Horizont system manual 308607
or Modular Commander system manual 307362.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1998, Graco Inc. is registered to I.S. EN ISO 9001
308847D
Advertisement
Table of Contents
Related Manuals for Graco 308847D
Summary of Contents for Graco 308847D
- Page 1 For antifreeze or oil. Sends 10 pulses per quart (11 pulses per liter) of fluid that flows through the meter. Read warnings and instructions. Refer to your Horizont system manual 308607 or Modular Commander system manual 307362. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1998, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 Filter must be installed as shown in the Horizon system manual 308607. RC Filter An RC Filter (Graco Part No. 113837) is sent with the If the meter is used with the Modular Fluid Commander pulse meter. system, the RC Filter can be discarded.
- Page 3 Service To clean meter fluid piston, proceed as follows (see 4. Insert screwdriver into notch of chamber, pry off Fig. 2): top, and remove inner parts. Pawl Pinion 5. Clean all parts, including meter housing, in solvent, and blow dry. Inspect all parts for damage or wear. Especially check outer surfaces of piston and inner surfaces of chamber bottom for pitting or scoring, and replace these parts, if necessary, with a com-...
- Page 4 Parts Model 215475 Fluid Meter (Metric) Model 215474 Fluid Meter (U.S.) Includes items 18–30 Includes items 18–30 TI1931A Ref. Ref. Part No. Description Qty. Part No. Description Qty. 101791 SCREW 101792 LOCKWASHER METER, liquid (U.S. quart) 101965 LOCKNUT Cannot be ordered separately 102489 SWITCH, sensitive (Micro-switch) 1 METER, liquid (liter)
- Page 5 Technical Data Category Data Electrical Input Voltage 24 VDC Maximum Signal Output 0 VDC (OFF) 24 VDC Maximum (ON) Maximum Fluid Flow 4 gpm (15 liter/min.) Maximum Operating Pressure 1000 psi (7 MPa, 69 bar) Inlet/Outlet 1/2 npt Wiring Gauge Required 18 AWG 2 wire / 90 V Pulses 5 pulses per pint...
- Page 6 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
