Instructions/Parts List
Test Fixture, High Voltage
Probe, and kV Meter
For Graco Pro Xp and Pro Xs Electrostatic Spray Guns, to test the electrostatic voltage of
the spray gun, as well as the condition of the turbine alternator and power supply when
disassembled from the gun. For professional use only.
See page 2 for kit part numbers and descriptions.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
309455C

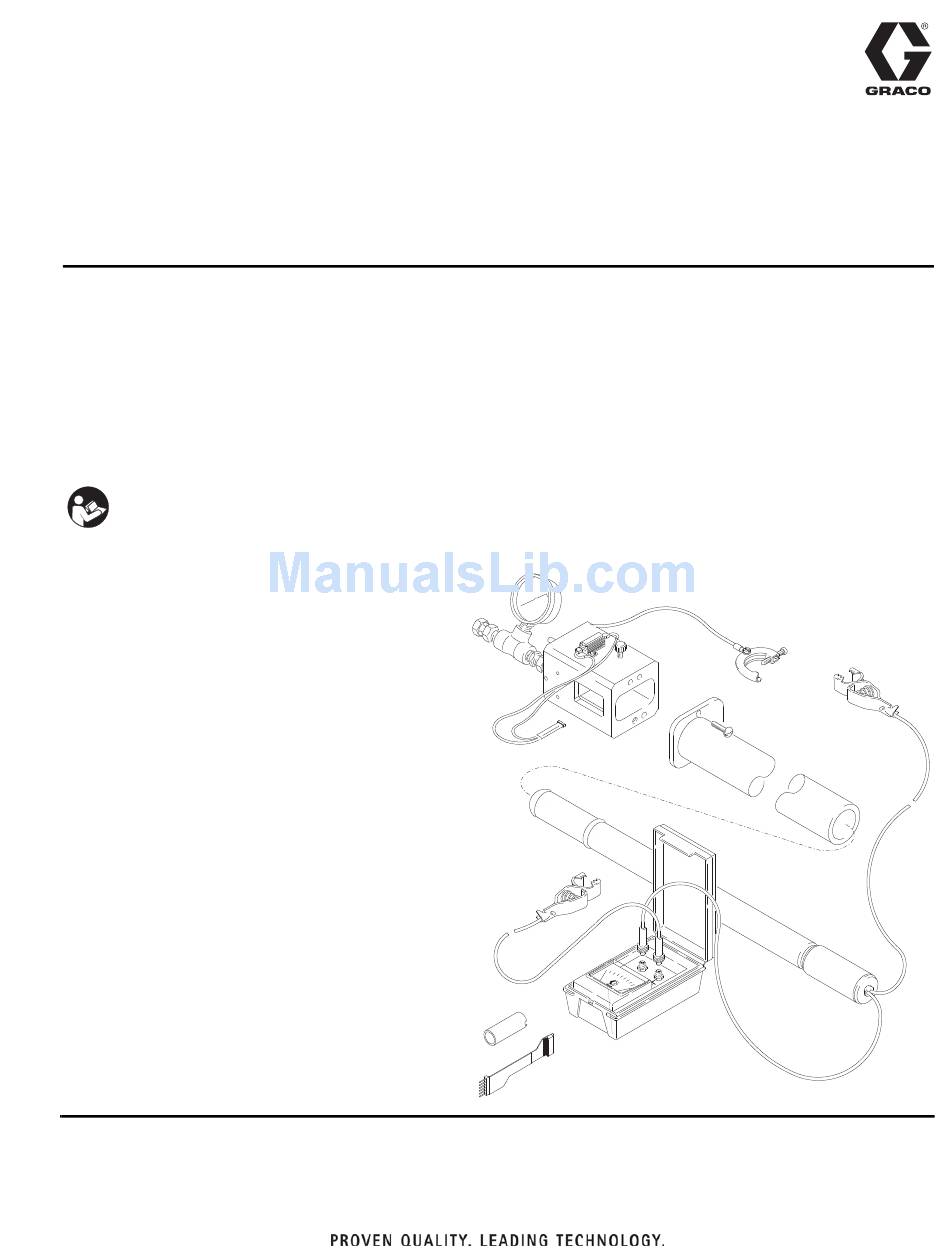

Part No. 245277 Shown
TI1877A
EN
Advertisement
Table of Contents
Related Manuals for Graco 309455C
Summary of Contents for Graco 309455C
- Page 1 Probe, and kV Meter 309455C For Graco Pro Xp and Pro Xs Electrostatic Spray Guns, to test the electrostatic voltage of the spray gun, as well as the condition of the turbine alternator and power supply when disassembled from the gun. For professional use only.
-
Page 2: Table Of Contents
Testing the Power Supply Cartridge ..8 Graco Information ......20 Testing the Smart Handle's ES HI/LO Setting . -
Page 3: Warnings
• Only use the probe to test direct negative current (DC) electrostatic voltage. • Only use this equipment to test Graco Pro Xs Electrostatic Gun Models. Never use it to test “stiff” or “hot” systems. • Always ground the fixture, probe, and kV meter as described in this manual. -
Page 4: Operation
4. Read the voltage on the kV meter (2). Refer to Table 1 for your gun model. NOTE: When the kV meter (2) is not in use, place a jumper wire across the kV meter connectors to prevent excessive needle movement. 309455C... -
Page 5: Testing The Turbine Alternator
To reduce the risk of fire, explosion, or elec- tric shock, which can result in serious injury and property damage, never use the Graco Pro Xs and Pro Xp Test Fixture to test the gun turbine alternator or power supply in a hazardous location. - Page 6 Operation For Pro Xs Guns TI1879B Spacer (22) is for use with Pro Xp alternators only. For Pro Xp Guns TI1879C Fig. 3. Install Turbine Alternator in Fixture 309455C...
- Page 7 All Pro Xs Models 625 Hz maximum 6.4 V minimum All Pro Xp Models 575 Hz maximum 6.4 V minimum Ground clamp (12) wire connection to test fixture TI1886A Back View of Test Fixture TI1880A Fig. 4. Testing the Turbine Alternator 309455C...
-
Page 8: Testing The Power Supply Cartridge
Pro Xp 40 35-45 and property damage: Pro Xs3 and 55-65 Pro Xp 60 •Never use the Graco Pro Xs Test Fixture to Pro Xs4 and test the gun turbine alternator or power 75-85 Pro Xp 85 supply in a hazardous location. - Page 9 Operation TI1881A For Pro Xp Guns For Pro Xs Guns Fig. 5. Install Power Supply in Fixture Ground clamp (12) wire connection to test fixture TI1886A Back View of Test Fixture TI1882A Fig. 6. Testing the Power Supply 309455C...
-
Page 10: Testing The Smart Handle's Es Hi/Lo Setting
(H) to 1/4 in. diameter. ES HI/LO Switch TI1885A Detail A: Connect the flexible circuit adapter. TI1883A TI1883A Detail B: Install the smart handle loosely. Detail C: Tighten the smart handle to the fixture. Fig. 7. Testing the Smart Handle 309455C... - Page 11 Operation 309455C...
-
Page 12: Low Voltage Adjustment (For Pro Xs Smart Guns Only)
Remove plug Also see F . 8. ti1529a ES HI/LO Switch Fig. 8. Low Voltage Adjustment Switches (Pro Xs Guns) Table 4: Low Voltage Adjustment (Pro Xs Guns only) 60 kV Guns 85 kV Guns > ON Factory Setting 309455C... -
Page 13: Low Voltage Adjustment (For Pro Xp Smart Guns Only)
NOTE: After 2 seconds of inactivity the display will return to the Operating Screen. NOTE: The low voltage setting may be locked. When locked, an image (LK) appears on the screen. See your Pro Xp instruction manual for further information. 309455C... -
Page 14: Troubleshooting
30 psi (0.21 MPa, 2.1 bar). Fixture's air bypass not plugged. Make sure the probe shroud is tightly secured to the fixture. Faulty alternator. Test alternator; replace or rebuild if faulty.* * See Accessories to order a repair kit. 309455C... - Page 15 Probe not properly grounded. Connect the probe's ground wire to a true earth ground; see F . 1. Gun not properly grounded. Ground the gun; see your gun man- ual. * See Accessories to order a repair kit. 309455C...
-
Page 16: Parts
Test Fixture, Probe, and kV Meter NOTE: Item 1 Probe and Meter Assy includes items 2-6. * NOTE: Item 7 Test Fixture includes items 8-18. Item 22 is for alternator used with Pro Xp guns only. Rear View of Housing TI1886A 13 10 TI1877B 309455C... - Page 17 112234 CASE, carrying (not shown) 245302 FLEX CIRCUIT, test assembly 179802 TOOL, power supply alignment 24R038 KIT, spacer; for alternator used with Pro Xp guns only Replacement Warning labels, signs, tags, and cards are available at no cost. 309455C...
-
Page 18: Accessories
4 oz (113 g) tube of sanitary (non-silicone) lubricant. Alternator Bearing Kit (for Pro Xp guns only) 24N706 To repair the turbine alternator used with Pro Xp guns. Includes bearings, fan, hous- ing, and clip. Refer to manual 3A2500. TI18639B 309455C... -
Page 19: Technical Data
Maximum Testing Voltage 90 kV DC kV Probe and Meter Accuracy +/- 5% full scale kV Probe Resistance 7 gigohm +/- 5% Multimeter Specifications To test the turbine alternator, the multimeter must read voltage and frequency. See Accessories to order. 309455C... -
Page 20: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
