Trillium WSP-6 Installation, Operation & Maintenance Instructions Manual

Self-priming pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Self-Priming Pumps
Installation, Operation & Maintenance Instructions
Model WSP-6
WSP-D300_6
Trillium Flow Technologies
Tel: 801-359-8731
Fax: 801-530-7531
© Copyright 2019, The Factory. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSP-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trillium WSP-6

Summary of Contents for Trillium WSP-6

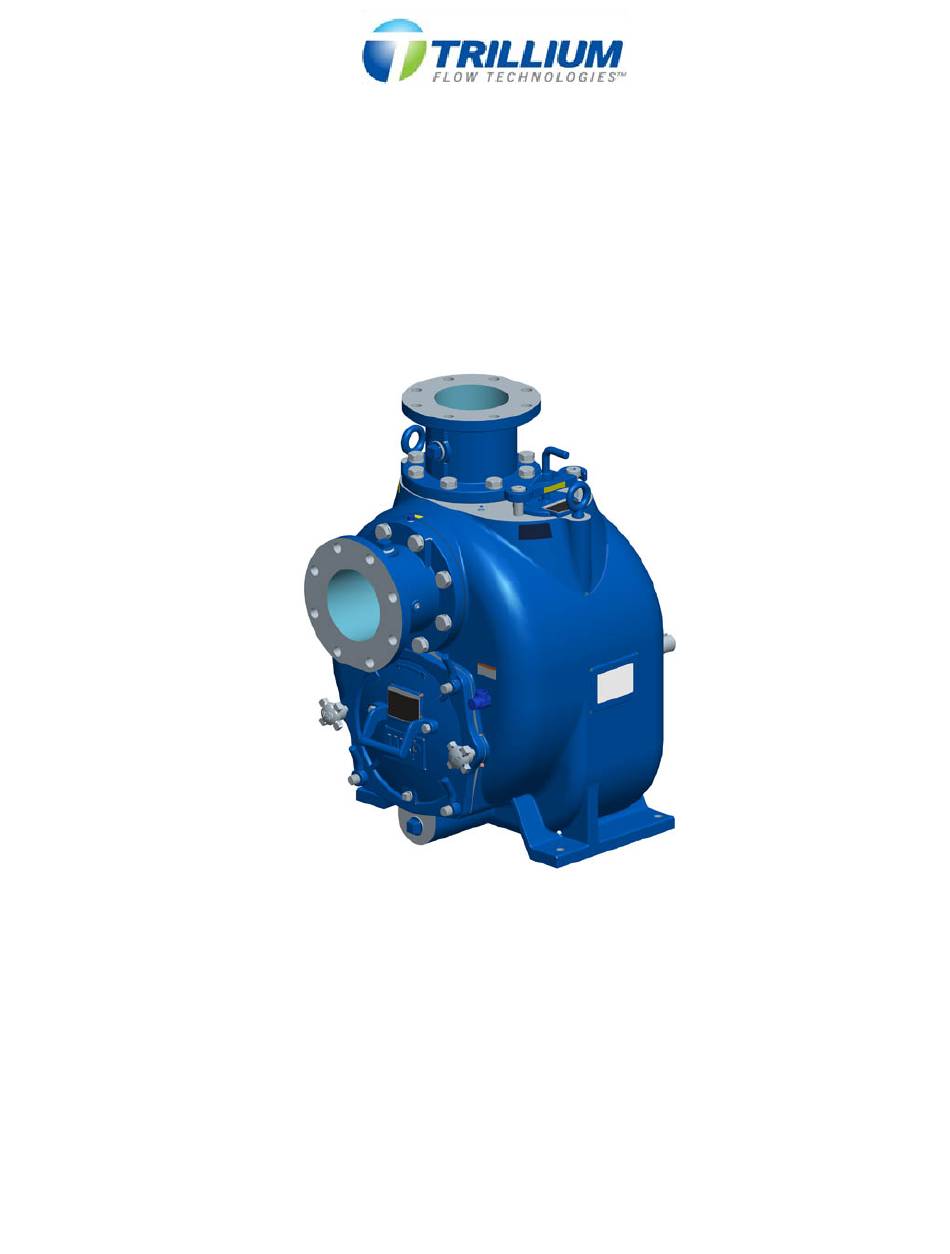

  • Page 1 Self-Priming Pumps Installation, Operation & Maintenance Instructions Model WSP-6 WSP-D300_6 Trillium Flow Technologies Tel: 801-359-8731 Fax: 801-530-7531 © Copyright 2019, The Factory. All rights reserved.

  • Page 2: Table Of Contents

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 INTRODUCTION ......................4 PURPOSE ..........................4 SAFETY ........................... 5 III. PREVENTIVE MAINTENANCE................14 DISASSEMBLY & REASSEMBLY OF THE PUMP & SEAL ....... 16 A. REMOVING THE COVER PLATE & WEARPLATE ..........18 REMOVING THE SUCTION CHECK VALVE ............
  • Page 3 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Suction Line Positioning ..................45 DISCHARGE LINES ....................46 Siphoning ........................ 46 Valves ........................46 Bypass Lines ......................47 G. WSP™ AUTOMATIC AIR RELEASE VALVE (WSP™ ARV) ......48 Theory of Operation ....................49 WSP™...

  • Page 4: Introduction

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 INTRODUCTION Warning levels applying to the safe installation, operation and maintenance of all sizes of WSP™ Self-Primer (WSP) pumps can be located at the beginning of this manual. You must refer to the manual accompanying your power source before attempting to begin operation since Weir Specialty Pumps has no control over or special knowledge of the power source to which you will connect these pumps.

  • Page 5: Safety

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 IMMEDIATE HAZARDS WHICH WILL RESULT IN SEVERE PERSONAL INJURY OR DEATH. THESE INSTRUCTIONS DESCRIBE PROCEDURE REQUIRED AND THE INJURY WHICH WILL RESULT FROM FAILURE TO FOLLOW THE PROCEDURE. HAZARDS OR UNSAFE PRACTICES WHICH COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH.
  • Page 6 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SEVERE INJURY. WHEN A MANUAL SHUT-OFF VALVE IS INSTALLED IN A BYPASS LINE, IT MUST REMAIN OPEN DURING OPERATION. CLOSING THE MANUAL SHUT-OFF VALVE COULD CAUSE A PUMP, WHICH HAS LOST PRIME, TO CONTINUE TO OPERATE WITHOUT REACHING PRIME.
  • Page 7 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 WHEN PERFORMING EQUIPMENT MAINTENANCE OR IF THE PUMP IS TO REMAIN OUT OF SERVICE FOR A PERIOD OF TIME, THE EQUIPMENT ELECTRICAL SERVICE MUST BE DISCONNECTED WITH AN APPROVED LOCKOUT AND KEY. FAILURE TO LOCK OUT THE EQUIPMENT MAY RESULT IN INJURY.
  • Page 8 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 DO NOT OPERATE PUMP WITH BOTH SUCTION AND DISCHARGE VALVES CLOSED OR WITH SUCTION OR DISCHARGE BLOCKED BY CLOGGING – THIS COULD CAUSE DAMAGE AND IS DANGEROUS. THESE PUMPS ARE TO BE USED FOR LIQUID SERVICE ONLY.
  • Page 9 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 YOUR PUMP HAS BEEN ENGINEERED TO PUMP LIQUIDS THAT CONTAIN SOLIDS OR SLURRIES. AT NO TIME SHOULD THE LIQUID BE VOLATILE, CORROSIVE, OR COMBUSTIBLE. FAILURE TO DO SO COULD DAMAGE THE PUMP OR RESULT IN INJURY.
  • Page 10 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 DRAIN THE PUMP. PUMP LIFTING EYES ON THE SELF-PRIMING PUMP ARE ONLY DESIGNED TO HANDLE THE WEIGHT OF THE BARE PUMP. BEFORE LIFTING, ENSURE THAT ALL SUCTION AND DISCHARGE HOSES AND PIPING HAVE BEEN REMOVED FROM THE PUMP, AND IT IS FREE OF ANY BASE AND DRIVER.
  • Page 11 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 THIS PUMP SHOULD ONLY BE OPERATED IN THE DIRECTION SHOWN ON THE ARROW ON THE PUMP BODY AND ON ANY ACCOMPANYING DECALS. SERIOUS DAMAGE COULD OCCUR TO THE PUMP ASSEMBLY IF BOTH LIFTING EYES ARE NOT UTILIZED DURING LIFTING AND MOVEMENT OF THE UNIT.
  • Page 12 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 THIS PUMP SHOULD ALWAYS BE OPERATED WITH LIQUID IN THE PUMP CASING. WHEN OPERATING THE PUMP DRY, THE PUMP WILL NOT PRIME. DISASSEMBLY OF THE SHAFT AND BEARING IS NOT RECOMMENDED IN THE FIELD. PERFORM THESE OPERATIONS ONLY IN A PROPERLY EQUIPPED SHOP BY QUALIFIED TECHNICIANS.
  • Page 13 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 ANY TIME THE OLD SEAL IS REMOVED FROM THE PUMP A NEW SEAL ASSEMBLY SHOULD BE INSTALLED. DURING REASSEMBLY WEAR PATTERNS ON THE FINISHED FACES CANNOT BE REALIGNED. PREMATURE SEAL FAILURE WILL RESULT FROM USING AN OLD SEAL.

  • Page 14: Preventive Maintenance

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 REGULARLY OBSERVE THE CONDITION OF THE BEARING LUBRICANT FOR SIGNS OF RUST OR MOISTURE, ESPECIALLY IN AREAS WHERE VARYING HOT AND COLD TEMPERATURES ARE TYPICAL. PREVENTIVE MAINTENANCE III. Wear on the pump is affected by any number of pump applications. Abrasive qualities due to specific applications as well as the pressure and the liquid temperature being pumped will all cause pump wear.
  • Page 15 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Preventive Maintenance Guide Service Daily Owner Status Notes Check the following: Check the overall condition of the pump Notice: Hardware for tightness Are there any leaks? Is there unusual vibration? Monitor and record the gauge readings Are the speed and flow normal? Service...

  • Page 16: Disassembly & Reassembly Of The Pump & Seal

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 DISASSEMBLY & REASSEMBLY OF THE PUMP & SEAL Review all warnings before performing installation and follow the directions on all tags, labels, and decals attached to the pump very closely. Your pump requires minimum service due to its rugged, low maintenance design.
  • Page 17 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Digit 6 Digit 7 Digit 8 Digit 9 Seal Bearing Case / Cover Plate Plate Wear Plate Housing Impeller Flanges Hardware O-rings Seal...

  • Page 18: Removing The Cover Plate & Wearplate

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 To take apart and repair the power source, refer to the documentation supplied with your power source, or contact your local power source representative. NO PERSON SHOULD ATTEMPT TO OPEN OR SERVICE THIS PUMP BEFORE BECOMING THOROUGHLY FAMILIAR WITH ALL THE PROCEDURES OUTLINED IN THIS MANUAL.

  • Page 19: Removing The Suction Check Valve

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 1 Disengage the hardware to remove the wearplate then inspect it and replace if it is badly gouged or worn. Carefully inspect the O-rings in the back cover and replace if worn or damaged. B.
  • Page 20 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 While the impeller rotation still has a block (Figure 2), use a piece of long, heavy bar to lever against the arm of the lathe dog in a counterclockwise direction (You should be facing the drive end of the shaft.).

  • Page 21: Removing The Impeller

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 3 When installing the tool, remove the vented plug from the bearing housing, then screw the longest pipe length into the vent hole until completely attached. Fasten the tee, and screw in both handles. Be very careful when lifting the rotating assembly.

  • Page 22: Removing & Disassembling The Shaft & Bearing

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 4 Take off the stationary element and the seat with a pair of stiff wires that have hooks on their ends, or remove the hardware then pull the sealplate and gasket from the bearing housing.
  • Page 23 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Remove the drain plug from the bearing housing. Drain the lubricant then clean, inspect and reinsert the drain plug. Disconnect the pump hardware before sliding the bearing cap and oil seal from the shaft.

  • Page 24: Disassembly Of The Two-Piece Bearing Housing

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 To check for roughness or bearing binding, rotate bearings by hand and inspect the balls. If the bearing balls are discolored or rotating them is rough, replace the bearings. Bearing tolerances provide tight fit of the bearings onto the pump shaft as well as a snug fit in the bearing housing.

  • Page 25: Reassembling The Two-Piece Bearing Housing

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 H. REASSEMBLING THE TWO-PIECE BEARING HOUSING Replace and lubricate the O-ring. Place the inner bearing housing half into the outer bearing housing half and install the four bolts and lock washers (See Figure 5). Torque the bolts to 67 lb-ft for dry threads and 40 lb-ft for lubricated threads.
  • Page 26 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 NOTE: To correctly install the outboard bearing on the shaft, place it with the integral retaining ring on the bearing O.D. near the drive end of the shaft. To ease installation, the bearings may be heated with an induction heater, an electric oven, a hot plate or a hot oil bath.

  • Page 27: Installing The Mechanical Seal

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 6 Follow instructions in Section VI. LUBRICATION, to lubricate the bearing housing correctly. J. INSTALLING THE MECHANICAL SEAL BEFORE USING ANY CLEANING SOLVENTS CAREFULLY READ AND FOLLOW ALL PRECAUTIONS PRINTED ON THE SOLVENT CONTAINER. CLEANING SOLVENTS ARE KNOWN TO BE TOXIC AND FLAMMABLE AND ARE ONLY TO BE USED IN WELL- VENTILATED AREAS AWAY FROM EXCESSIVE HEAT, SPARKS, AND FLAMES.
  • Page 28 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 7 ANY TIME THE OLD SEAL IS REMOVED FROM THE PUMP A NEW SEAL ASSEMBLY SHOULD BE INSTALLED. DURING REASSEMBLY WEAR PATTERNS ON THE FINISHED FACES CANNOT BE REALIGNED. PREMATURE SEAL FAILURE WILL RESULT FROM USING AN OLD SEAL.
  • Page 29 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 8 OPERATION AT TEMPERATURES ABOVE 160 F (71 C). IS NOT RECOMMENDED FOR THIS SEAL. THIS PUMP SHOULD NOT BE USED AT HIGHER OPERATING TEMPERATURES, WITHOUT CONSULTING THE FACTORY. WHEN REUSING AN OLD SEAL, DO NOT ATTEMPT TO SEPARATE THE ROTATING PORTION OF THE SEAL FROM THE SHAFT SLEEVE.

  • Page 30: Mechanical Seal Installation

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 1. Mechanical Seal Installation i. Install the sealplate gasket if the sealplate was previously removed. Carefully place the sealplate directly over the shaft, and attach it to the bearing housing with its hardware. Next, lubricate the seal plate O-ring with light grease, and install it on the seal plate.

  • Page 31: Cartridge Seal Installation

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Once the seal is replaced, install and adjust the impeller/seal plate clearance (.025” to .040”). 2. Cartridge Seal Installation Install the seal plate gasket if the seal plate was previously removed. Carefully place the seal plate directly over the shaft, and attach it to the bearing housing with its hardware.

  • Page 32: Installing The Rotating Assembly

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 shaft making sure it seats against the shaft sleeve. Check to be sure the impeller is hand-tight and fully connected to the shaft sleeve. NOTE: Should there be the slightest sign of binding, immediately take the impeller off, and inspect the threads for dirt.

  • Page 33: Installing The Suction Check Valve

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Use the same rotating assembly adjusting shim thickness as those removed. Attach the rotating assembly to the pump casing with the hardware. Refer to Section IV. Part I. Installing and Adjusting the Back Cover in these instructions to accurately set impeller and wearplate clearance.
  • Page 34 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 9 Figure 10 Generously lubricate the back cover O-rings with No. 2 grease. Remove and clean all debris or scale from the pump casing contact surfaces. This could interfere with or prevent a strong seal with the back cover.

  • Page 35: Maintaining The Pressure Relief Valve

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 While the wearplate is barely touching the impeller, turn the 2 hand adjusting knobs in the back coverplate until they touch the pump casing. Loosen the two hand nuts two full turns. Tighten both hand adjusting knobs evenly 1/3 turn then evenly tighten the 2 diagonally positioned hand nuts to push the back cover into the pump casing.

  • Page 36: Final Pump Assembly

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 A. Final Pump Assembly Install the shaft key and any protective guards used over the rotating parts before reconnecting the pump to its power source. ALL GUARDS AND PROTECTIVE DEVICES MUST BE INSTALLED BEFORE THE PUMP IS STARTED.

  • Page 37: Power Source

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 REGULARLY OBSERVE THE CONDITION OF THE BEARING LUBRICANT FOR SIGNS OF RUST OR MOISTURE, ESPECIALLY IN AREAS WHERE VARYING HOT AND COLD TEMPERATURES ARE TYPICAL. When operating the pump during cold weather, contact a lubricant supplier or the factory for the recommended oil viscosity.
  • Page 38 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 TROUBLESHOOTING WSP™ SELF-PRIMER PUMPS PUMP FAILS TO PRIME POSSIBLE CAUSE PROBABLE REMEDY Low liquid level inside the pump casing. Add liquid to casing. See Section IV. OPERATION, Part A.. PRIMING Suction check valve malfunction.
  • Page 39 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 PUMP REQUIRES TOO MUCH POWER POSSIBLE CAUSE PROBABLE REMEDY Pump speed running too fast. Check driver output; check that sheaves or couplings are correctly sized. Discharge head too low. Adjust discharge valve. Liquid is to viscous.

  • Page 40: Installation

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 INSTALLATION VIII. Carefully review all previous warnings before attempting to install your WSP™ Self-Primer (WSP) Pump. This will maximize safety for both equipment and operator. Weir Specialty Pumps requires the general recommendations and practices that follow are used when inspecting, positioning and arranging both the pump and the attached piping.

  • Page 41: Pump Positioning

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 4. Have you paid extra attention to the direction of rotation indicated on your pump? Are you sure the pump shaft rotates counter-clockwise when facing the impeller? THIS PUMP SHOULD ONLY BE OPERATED IN THE DIRECTION SHOWN ON THE ARROW ON THE PUMP BODY AND ON ANY ACCOMPANYING DECALS.

  • Page 42: Mounting

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 2. Mounting It is critical that you make sure the pump mounting is level for correct operation of your WSP™ Self-Primer pump. During installation, the pump may need to be shimmed or supported to eliminate vibration and create level operating conditions.

  • Page 43: Pump Connections

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 3. Pump Connections Accurately align the connecting flange with the pump port before it is tightened. To prevent problems, avoid pulling the pipeline into alignment by tightening the flange bolts and/or couplings. All lines surrounding the pump must be supported independently to alleviate strain on the pump.

  • Page 44: Sealing

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 line’s cross-section. Also be sure the openings will not allow solids to pass that are larger than the pump’s ability to handle. Your WSP3 pump is designed to facilitate spherical solids up to 2½- inches (50.08 mm) in diameter.

  • Page 45: Suction Line Positioning

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 5. Suction Line Positioning Depth of the submerged suction line is extremely important to ensure ongoing pump performance. Refer to Figure 11 and Figure 12 showing the suggested minimum submergence vs. velocity chart. NOTE: Reduce pipe submergence requirements at the end of the suction line by installing a standard pipe increaser fitting.

  • Page 46: Discharge Lines

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 12 F. DISCHARGE LINES 1. Siphoning Avoid ending the discharge line lower than the liquid being pumped unless a siphon breaker is in use. Without a siphon breaker installed, siphoning may damage the pump.

  • Page 47: Bypass Lines

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 3. Bypass Lines When priming, air from the suction line must be vented on the discharge side to the outside since self-priming pumps are not air compressors. Should the discharge line be open, this air will vent through the discharge.

  • Page 48: Wsp™ Automatic Air Release Valve (Wsp™ Arv)

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 WSP™ ARVs offer low maintenance and high levels of dependability. For more information, see the WSP™ ARV in this section for information on its operation and installation. Contact your local WSP™ distributor or the factory to select a WSP™...

  • Page 49: Theory Of Operation

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 1. Theory of Operation See Figures 13 and 14 for a cross-sectional view of the WSP™ ARV and a description of its operation. Figure 13: Valve in Open Position Figure 14: Valve in Partially Closed Position Air from the pump casing passes through the bypass line and the air release valve to the wet-well during the priming cycle.

  • Page 50: Wsp™ Air Release Valve Installation

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Once your pump is fully primed, pressure from the liquid pressing against the valve diaphragm compresses the spring and shuts the valve (Figure 15). The valve then stays closed, slowing the liquid bypass down to 1 to 4 gallons (3.8 to 19-liters) per minute. ENSURE THAT THE BYPASS LINE IS DIRECTED BACK INTO THE WET-WELL OR TANK TO PREVENT HAZARDOUS SPILLS AS SOME LEAKING (1 TO 5 GALLONS [3.8 TO 19 LITERS] PER MINUTE) WILL OCCUR WHEN THE VALVE IS IN THE FULL-CLOSED...
  • Page 51 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 16: Installation of Air Release Valve Always install the valve inlet line between the pump discharge port and the discharge check valve on the non-pressurized side. The valve inlet opening has 1-inch standard NPT pipe threads.

  • Page 52: Alignment

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 Figure 17 H. ALIGNMENT To maximize mechanical operation of your WSP™ Self-Primer Pump be sure to correctly align your pump and its power source. This is crucial to maintain high levels of performance.

  • Page 53: Coupled Drives

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 ALIGNMENT ADJUSTMENT IN ONE DIRECTION MAY DISRUPT ALIGNMENT ADJUSTMENT IN ANOTHER DIRECTION. CHECK EACH PROCEDURE AFTER ALTERING ALIGNMENT. 1. Coupled Drives The axis of the power source and the axis of the pump shaft must be aligned in both the vertical and horizontal planes when using couplings.

  • Page 54: V-Belt Drives

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 When the coupling is incorrectly aligned, use a feeler gauge between the coupling and the straightedge to measure the amount of skew in the alignment. Realign the coupling according to the coupling manufacturer’s specification.

  • Page 55: Operation

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 OPERATION Review all SAFETY information in Section II before operating a WSP™ Self-Primer pump. Follow instructions on all tags, labels and decals affixed to your pump before using. YOUR PUMP HAS BEEN ENGINEERED TO PUMP LIQUIDS THAT CONTAIN SOLIDS OR SLURRIES.

  • Page 56: Start-Up

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 AFTER THE PUMP CASING HAS BEEN FILLED, REINSTALL AND TIGHTEN THE FILL PLUG. FAILURE TO OPERATE THE PUMP WITHOUT ALL CONNECTION PIPING SECURELY INSTALLED COULD CAUSE LIQUID IN THE PUMP TO BE FORCED OUT UNDER PRESSURE AND MAY RESULT IN INJURY.

  • Page 57: Lines Without A Bypass

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 If open, the bypass line will allow air from the suction line to be released back to the wet-well during priming; then, as long as the pump is operating, fluid will continue to circulate through the bypass line.

  • Page 58: Strainer Check

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 immediately. Once it has cooled sufficiently, the pump may be serviced and refilled with cool liquid. BEFORE SERVICING, ALLOW SUFFICIENT TIME FOR AN OVERHEATED PUMP TO COMPLETELY COOL. ONCE THE PUMP HAS COMPLETELY COOLED, DRAIN THE LIQUID FROM THE PUMP BY REMOVING THE CASING DRAIN PLUG.

  • Page 59: Stopping

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 If there is not enough suction, the pump is not pulling adequately. Inspect for possible air leaks. These may be found in the gasket, the discharge valve or the seal. When the pump is primed, open the suction line and read the vacuum gauge with the pump operating at normal speed then shut off the pump.

  • Page 60: Checking The Bearing Temperature

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 expel any leftover fluid that might freeze and damage rotating parts in the pump. b. Drain and rinse the pump with clean water when it has been sitting for longer than several hours.
  • Page 61 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 THIS PAGE INTENTIONALLY LEFT BLANK © 2019 The Factory...

  • Page 62: Technical Data

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 TECHNICAL DATA A. 6” WSP Curve 6 X 6 WSP FAMILY CURVE SELF-PRIMING PUMP 440 W. 800 S. Salt Lake City, Utah 84110 Fax: (801) 355-9303 Phone: (801) 359-8731 Suction: 6" Discharge: 6"...

  • Page 63: 6" Wsp General Arrangement

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 B. 6” WSP General Arrangement © 2019 The Factory...
  • Page 64 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...

  • Page 65: 6" Wsp Sectional Drawing And Parts List

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 C. 6” WSP Sectional Drawing and Parts List © 2019 The Factory...
  • Page 66 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...
  • Page 67 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...
  • Page 68 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...
  • Page 69 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...
  • Page 70 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...
  • Page 71 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 © 2019 The Factory...

  • Page 72: Wsp™ Air Release Valve And Parts List

    WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 D. WSP™ Air Release Valve and Parts List © 2019 The Factory...
  • Page 73 WSP™ DATA SHEET WSP™ SELF-PRIMER PUMPS WSP-D300_6 Rev. 3 01/09/20 LOW PRESSURE AIR RELIEF VALVE ASSEMBLY ITEM DESCRIPTION PART NO. MATERIALS AIR RELIEF VALVE ASSEMBLY 0730059-3 DI/SST VALVE BODY 0730061-008 DUCTILE IRON VALVE COVER 0730066-008 DUCTILE IRON INSPECTION COVER 0730068-008 DUCTILE IRON PLUNGER SHAFT 0730069-242...
