PLCM4565

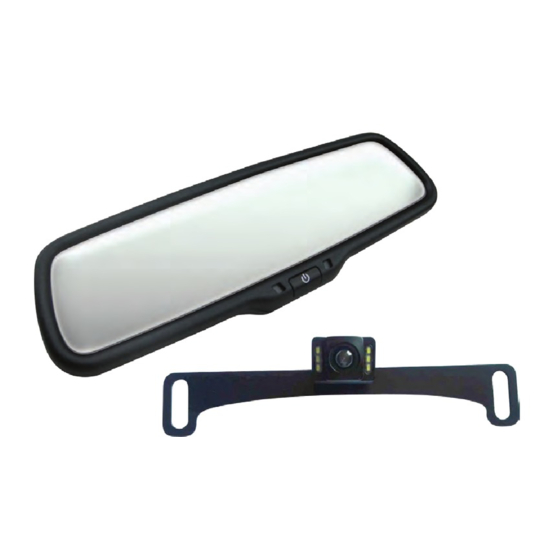

Backup Camera & Video Monitor System
with 4.3'' Display Rearview Mirror,
Smart Responsive Distance Scale Lines,
Angle Adjustable Waterproof Cam

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCM4565 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle PLCM4565

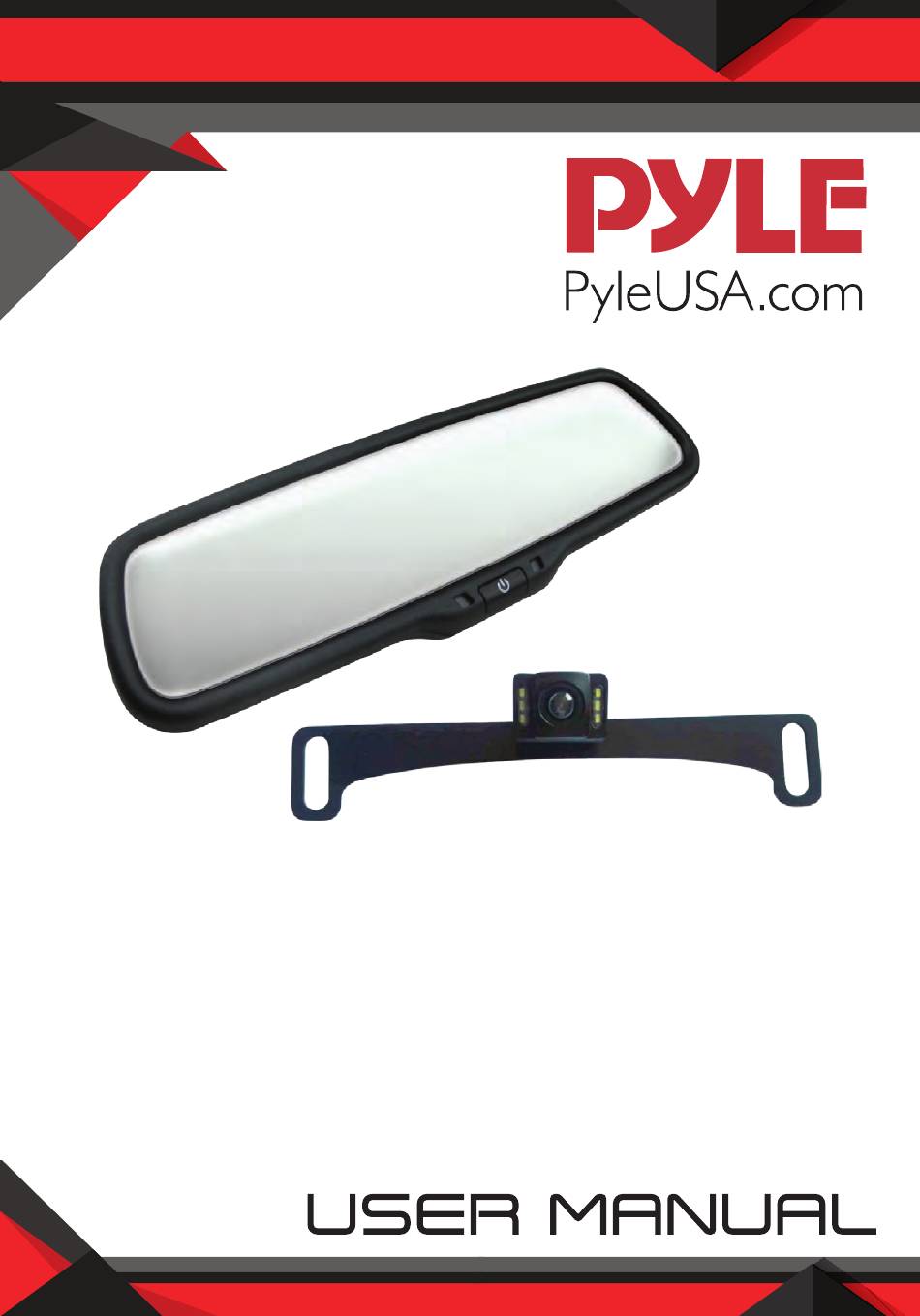

  • Page 1 PLCM4565 Backup Camera & Video Monitor System with 4.3’’ Display Rearview Mirror, Smart Responsive Distance Scale Lines, Angle Adjustable Waterproof Cam...
  • Page 2 Please read instructions carefully before installation and use. Installation should be performed by a professional installer. General Introduction This rear view mirror monitor is designed for car rear view purpose, which can work with a reversing camera (NTSC or PAL) to show the real-time images behind your car, with good compatibility with multimedia parking sensor system beside the camera.
  • Page 3 Wiring Diagram Rearview Mirror RED + 12V (ACC) BLACK(to Ground) Av1(to DVD player) Av2(to Reversing camera) TEMPERATURE IN TEMPERATURE OUT COMPASS Ambient Light Sensor Standby Indicator Power Button When V1 channel has signal in, press to on/off When V2 channel has signal in, press to adjust brightness Attention When connecting with Power cable, please make sure not to mistaken the positive and negative pole, otherwise the fuse will melt down itself immediately for security...
  • Page 4 2. This model is with license plate frame camera, so the unit can be installed with the number plate. There is the trajectory parking line function (the camera distance scale line will be moving according to where the car moves, when car in reverse or parking status). As the above 2 picture is shown.
  • Page 5 PLCM4565 Backup Camera & Video Monitor System with 4.3’’ Display Rearview Mirror, Smart Responsive Distance Scale Lines, Angle Adjustable Waterproof Cam System Features: • All-in-One Backup Camera & Video Monitor Kit • Rearview Mirror Designed to Replace Existing Mirror Assembly •...
