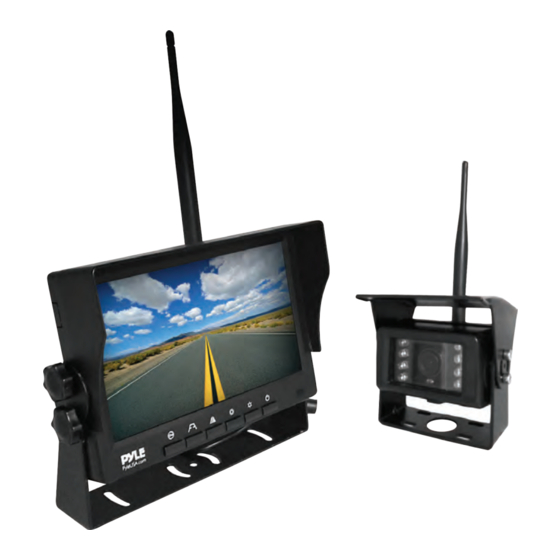

- Page 1 PLCMTR83WIR Digital Wireless Monitor and Camera System Single Channel 7'' LCD Display, 1080P HD Quality...
- Page 2 Introduction Please Read these instructions carefully before installation and operating your Digital Wireless Monitor and Camera System unit. Main Features: • All View Angle IPS TFT LCD Panel • 2.4G Digital Wireless Transmit Solution • Wireless Transmit Range at About 11,811’’ -inches •...
- Page 3 Monitor Wireless Receiver Specs: • Operating frequency range Cover: 2.4GHz~2.4835GHz • Output Power: 17±1dBm @TYp 20dBm@max (if necessary) • Modulation Type: FSK/GFSK • RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3 • RF Bit Rate: 4MHz BER<1E-3 • Spread Spectrum: FHSS • Distance: Over 300M Camera Specs: •...
- Page 4 Mounting Guide A. Installing Position B. Monitor U Shape Bracket Mount Step.1: Take out the monitor from the color box, and nd the U shape bracket and Monitor. Step 2: Fix the U shape Bracket on the right place of the vehicles BEFORE AFTER Step 3: Put the Monitor onto the U shape Bracket with right screws...
- Page 5 Step 4: Adjust the monitor to the right angle Monitor & Camera Button Functions 1. Pair Button (Press and hold to mute sound) 2. Distance Scale Line On/O 3. Picture Reverse 4. Brightness + 5. Brightness – 6. Power 7. Camera Pair Button The unit normally was paired already before shipping out from the factory, if you nd the unit not paired, press the monitor and camera pair button to match.
- Page 6 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
