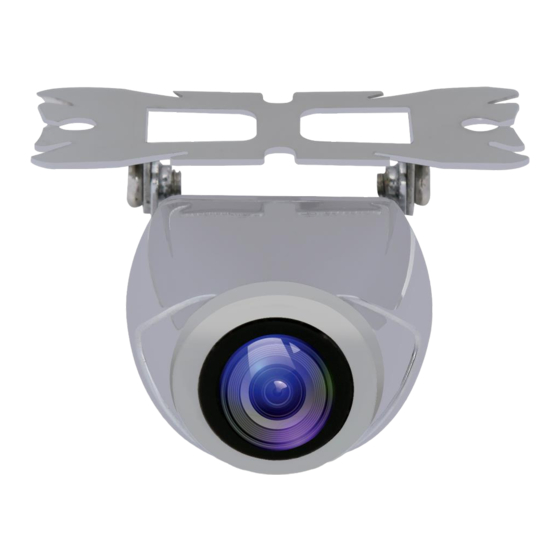

- Page 2 Please read instructions carefully before installation and use. Installation should be performed by a professional installer. SPECIFICATIONS Rear View Backup Camera, Parking Reverse Cam, Front/Rear Mount Features: Universal Mount Vehicle Backup Camera Waterproof & Weather-Resistant Marine Grade Camera Construction Built-in Distance Scale Lines Color Picture Output Mount Options: Front or Rear Installation Support Compact, Slim Bar Camera Style...
- Page 3 1. WIRE CONNECTION Please hard wire the red positive wire connected to the round 1 mm DC plug (pictured below) to your reverse tail light positive 12V connection and the black wire to the closest available ground. You will probably need a small length of wire to reach from your reverse tail light to the DC plug.
- Page 4 3. Please plug the round 1 mm DC plug that you just wired to your reverse tail light into the red (A) power connection (image on page 2) 4. Use the included 5m video cable to connect the yellow video wire (B) to your video monitor.
