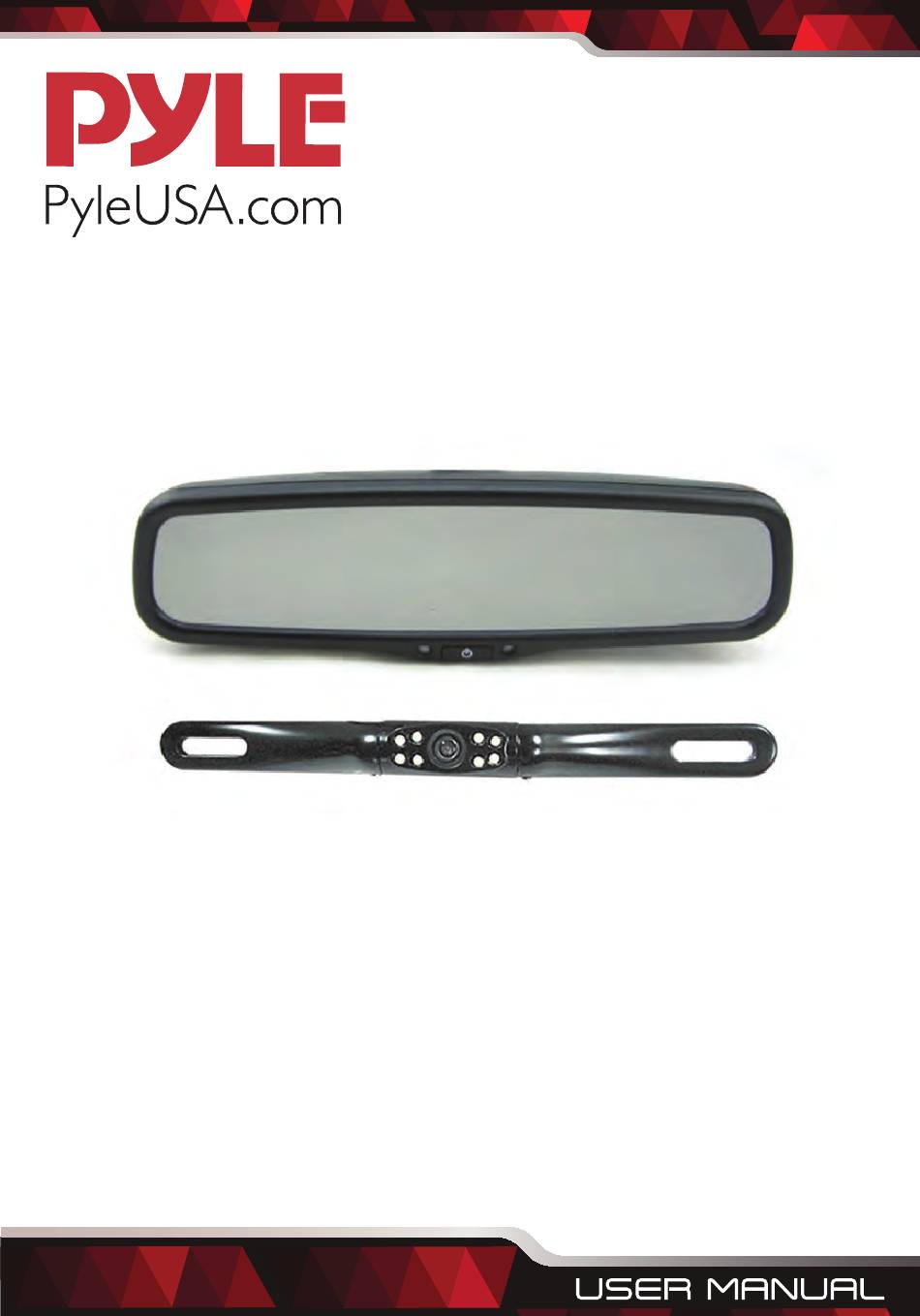

- Page 1 PLCM4560 Rearview Backup Camera & Monitor System Kit 4.3’’ LCD Display, Waterproof Night Vision Cam with Parking Assist Moving Distance Scale Lines...
-
Page 2: General Introduction
Please read instructions carefully before installation and use. Installation should be performed by a professional installer. General Introduction This rear view mirror monitor is designed for car rear view purpose, which can work with a reversing camera (NTSC or PAL) to show the real-time images behind your car, with good compatibility with multimedia parking sensor system beside the camera. -
Page 3: Speci Cations
Speci cations Model Description Brightness Screen Size 4.0" 4.3" Display Screen TET-LCD TET-LCD Display Resolution 480(H)*272(V) 480(H)*272(V) Aspect Ratio 16:9 16:9 Power Consumption 3 .6W Working Voltage DC12V DC12V V1 to GPS/DVD, etc. V1 to GPS/DVR/DVD, etc. Video Input V1 to Reverse Camera V1 to Reverse Camera Signal System PAL/AUTO/NTSC... -
Page 4: Wire Connection
REAR VIEW BACKUP CAMERA Wire Connection 1. Please hard wire the red positive wire connected to the round 1mm DC plug (pictured below) to your reverse tail light positive 12V connection and the black wire to the closest available ground. You will probably need a small length of wire to reach from your reverse tail light to the DC plug. -
Page 5: Backup Camera

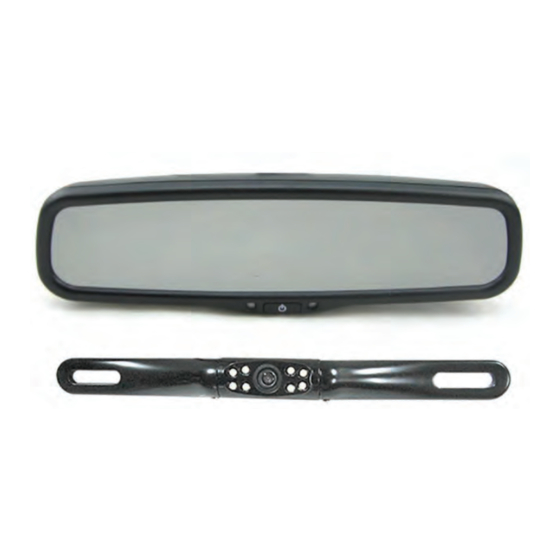

PLCM4560 Rearview Backup Camera & Monitor System KitLine Display, Night 4.3’’ LCD Display, Waterproof Night Vision Cam with Parking Assist Moving Distance Scale Lines Features: • Kit Includes Rearview Mirror Monitor Assembly + Backup Camera • Rearview Mirror Designed to Replace Existing Mirror Assembly •...
