Chapter 4 - Turret Service Stand Installation
4.2 TURRET SERVICE STAND INSTALLATION
The function of the turret shipping case is to prevent damage to the turret during movement. It also isolates the
system from shock. The case houses both the turret and service stand parts. The service stand is designed to
support the turret while performing routine maintenance or testing tasks. While the turret is installed in the service
stand, no additional weight should be placed on the service stand as the service stand is only designed to hold the
weight of the turret alone. The turret may be stored temporarily in the L-3 Wescam supplied service stand for
maintenance or testing purposes. For long term storage, L-3 Wescam recommends storing the turret in its impact
resistant shipping case.
1
5
October 2007
72
Foam Layer
Service Stand
Top Plate
Service Stand
Legs
Foam Layers
2
6

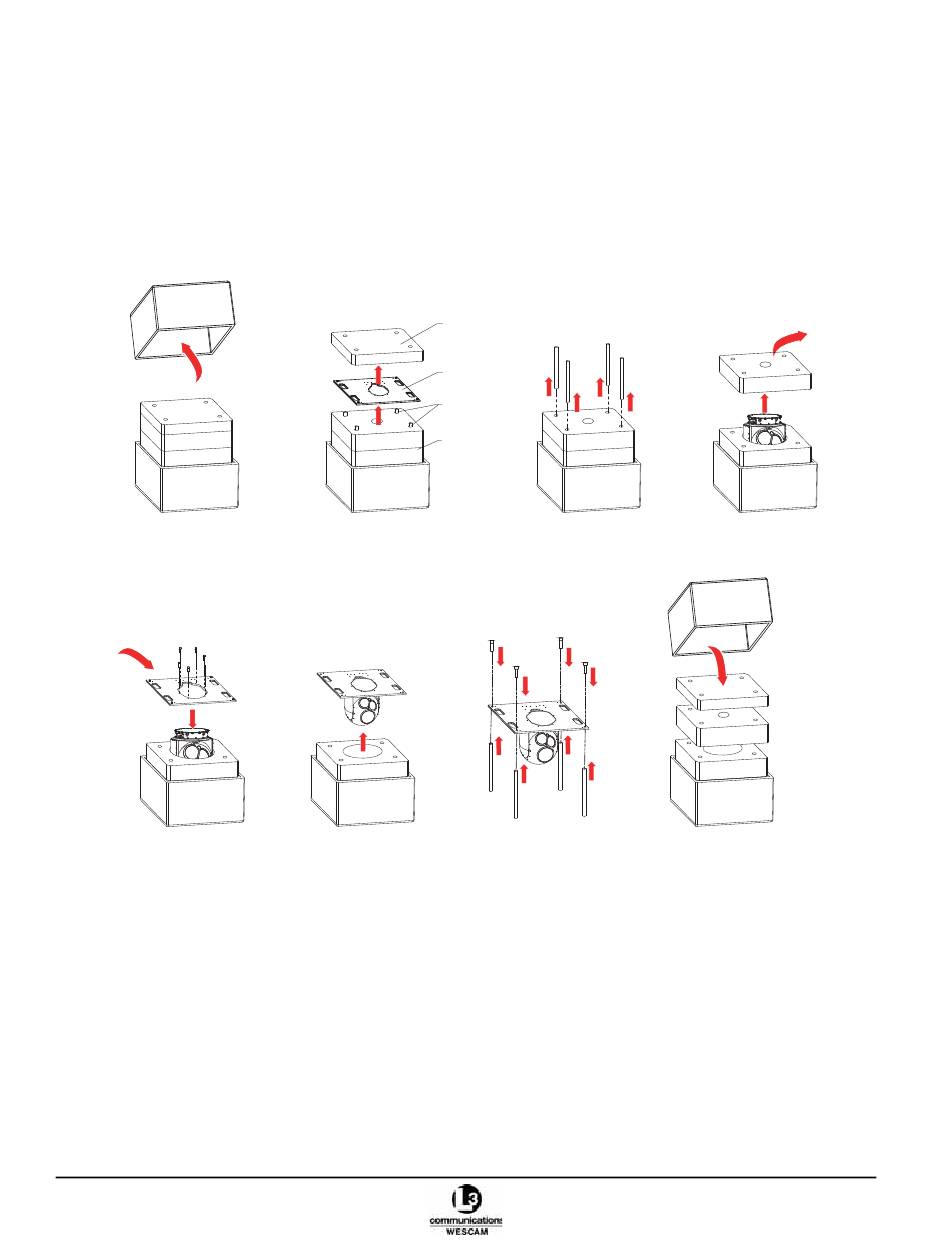

Figure 4-2 MX-15i Service Stand Installation Steps
3
7
TM00358 Rev. A
4
8
L-3 WESCAM
All Rights Reserved
