Chapter 2 - Recommended Operator Mission Tasks

2.15 RECOMMENDED OPERATOR MISSION TASKS

For typical mission flight, operators can do their tasks in 5 operational time frames:
• Pre-Flight inspection of the physical condition of the turret
• Pre-Takeoff check to prepare the turret for takeoff
• In-Flight operation of turret while airborne
• Pre-Landing check to prepare the turret for landing
• Post-Flight shutdown to disable and stow the turret
Before flight, the operator must do a Pre-Flight inspection and make sure that:
• the turret is correctly attached
• purging of the turret is not necessary
• all sensor windows are clean
Complete the Pre-Flight inspections in good time before the flight. This gives the operator sufficient time to
complete a turret purge or clean the sensor windows, if necessary. When the humidity in the turret is above the flight
limit, 1-2 hours is necessary to purge the turret. Do all other operator mission tasks at or during flight time.
Pre-Flight Potential Maintenance Tasks
Turret
Purge
(1-2 hrs)
Performing a Pre-Flight Inspection
1. Remove power from the turret system.
2. Make sure that the upper quadrants of the turret humidity indicator (30 & 40) do not show a lavender (pink)
color.
3. Make sure that the upper quadrants of the desiccant humidity indicator (30 & 40) do not show a lavender
(pink) color.
4. Clean all turret windows. Follow the window cleaning procedure.
5. Clean all video monitor screens.
6. Stow all LRU devices.
Preparing the Turret for Takeoff
1. From the Hand Controller, move the POWER switch to the ON position.
October 2007
50
Clean
Windows
(30 mins)
3
hrs

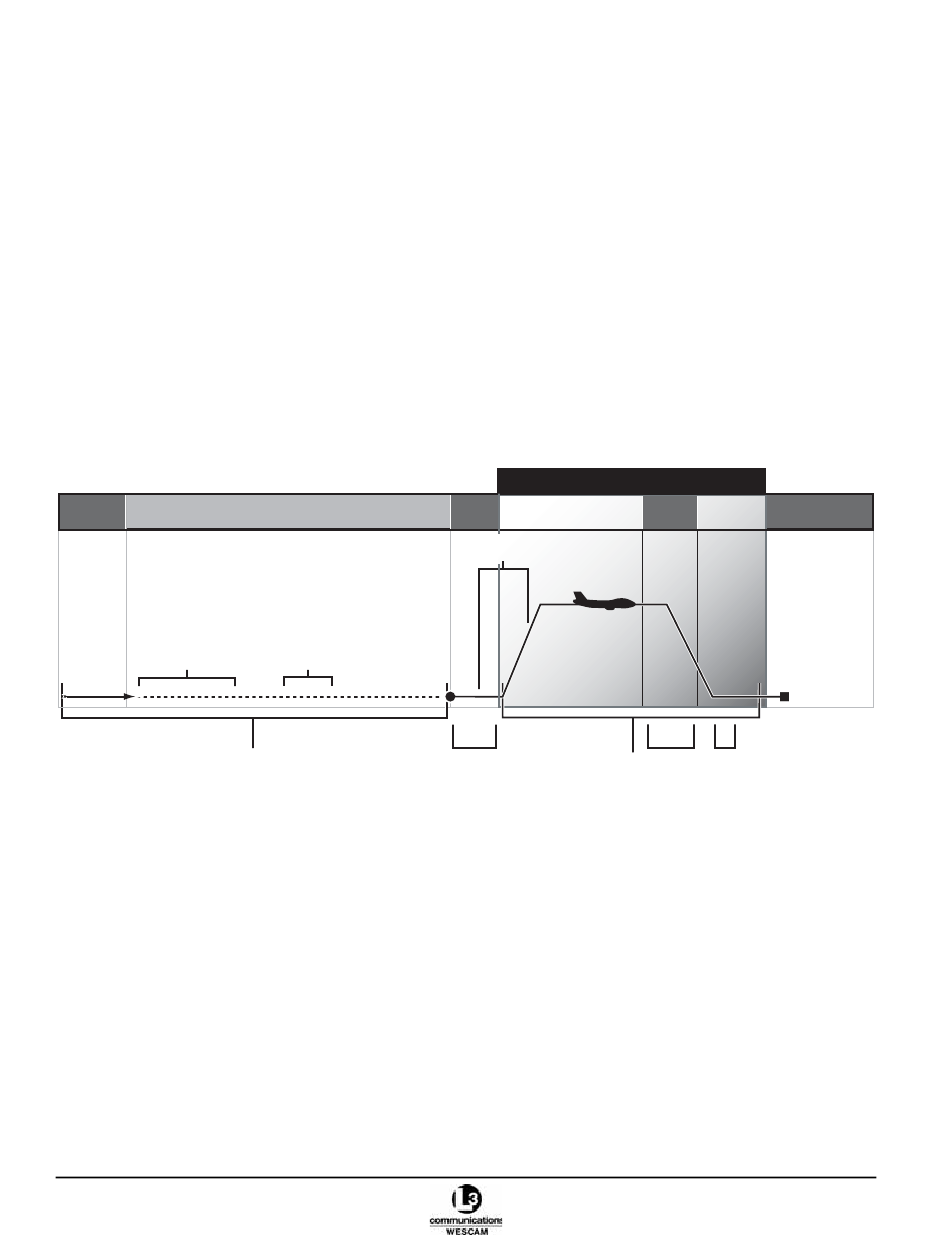

Figure 2-32 Sample Operator & Maintenance Task Timeline
