Chapter 2 - Operator Payload Menu

2.11 OPERATOR PAYLOAD MENU

The Operator Payload menu provides controls to:
• Configure the sensitivity of lens zoom, focus and filter controls
• Set the initial zoom point and default filter for the lens
To customize control sensitivity of the Hand Controller, operators can alter the drive action for the cameras to either
increase or decrease the input needed to zoom or focus the lens. For example, operators might decrease the focus
gain to achieve finer focus control. For sensors with zoom capable lenses, operators might increase the zoom gain
to speed up focal length changes. Gain setting can be set to a minimum factor of zero, which essentially disables
movement or the ability to zoom or focus the lens.

Table 2-12 Status Information and Controls in the Level 2 Operator Payload Menu

Field Values
ZOOM SENSE NORM
REV
ZOOM GAIN 0 to 100
FOCUS GAIN 0 to 100
NEAR FOCUS 1 to 500
October 2007
42
LEVEL 2 - OPERATOR PAYLOAD
ALL ZOOM SENSE
EOW ZOOM GAIN
FOCUS GAIN
NEAR FOCUS
INIT FILTER
IR INIT ZOOM
FOCUS GAIN
NEAR FOCUS
EON FOCUS GAIN
NEAR FOCUS
INIT FILTER

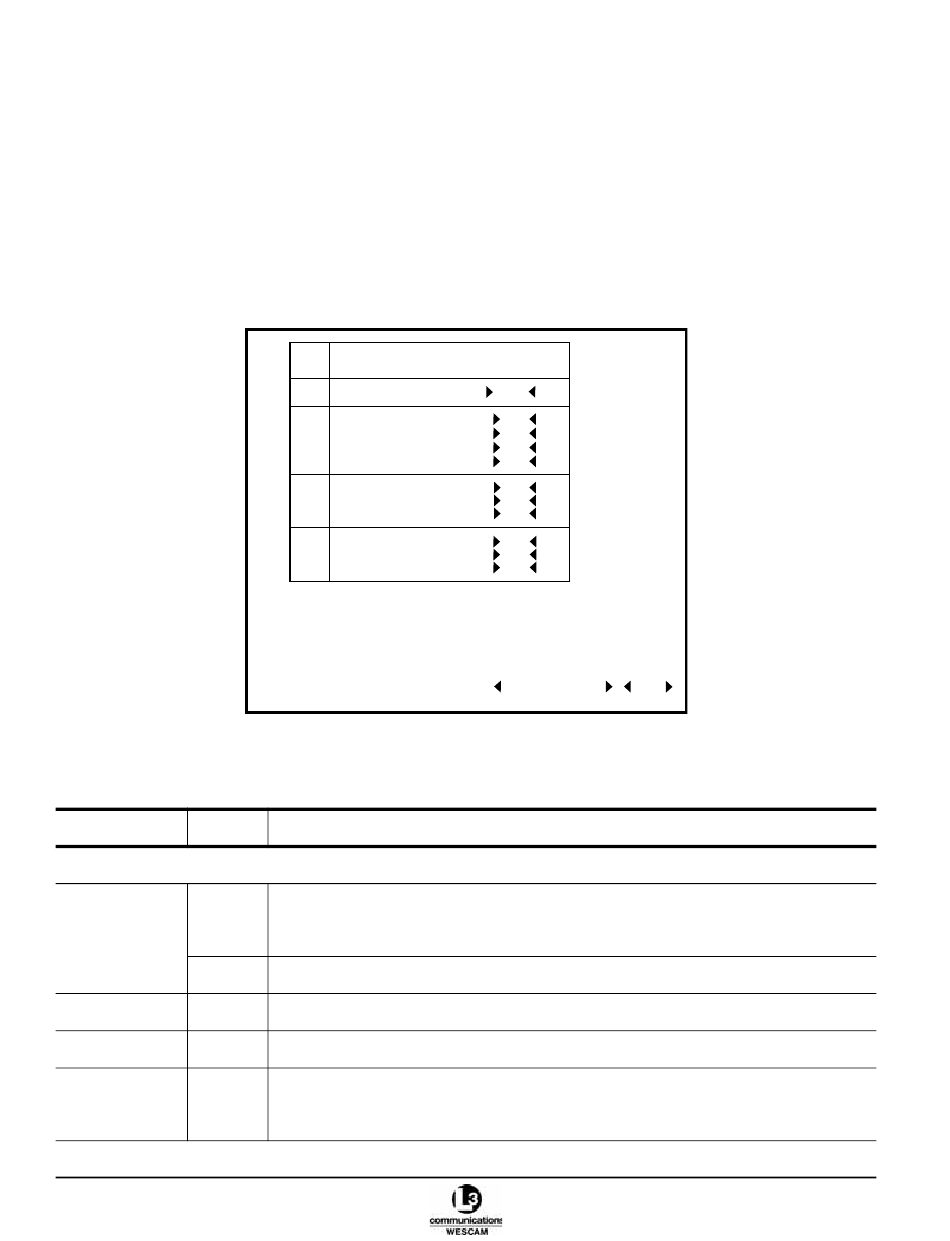

Figure 2-28 Level 2 Operator Payload Menu

VALUE FIELDS
Sets the direction of zoom travel on the user control:
• Upward pressure on ZOOM switch increases zoom.
• Downward pressure on ZOOM switch decreases zoom.
Reverse the normal zoom directions.
Sets the responsiveness of the ZOOM switch to zoom travel speed.
Sets the responsiveness of the Focus dial to refine focus adjustments.
Sets the degree of focus adjustment to have greater precision at one end of the focal range:
• Small values have more focus adjustment for close subjects.
• Large values have more focus adjustment for far subject.
NORM
10
20
2
COL
200
10
5
10
100
LP
FACTORY DFLT DONE
Description
