2.3 USER MENU NAVIGATION

Menus provide access to system status information and other infrequently used operator controls. The user menus
are structured in a three-level hierarchy where a main menu provides entry access to two levels of sub menus.
2.3.1

Menu Components

Each menu will display four functional elements:
• Title Bar – identifies the navigational position level within the menu hierarchy.
• Status Indicators – software measured feedback information related to a sensor or system control. These
fields cannot be modified.
• Value Fields – configuration parameters the operator can modify to set new values. These fields are
identified by inward
• Action Fields – commands that operators execute to either initiate an action or display a new menu. These
fields are identified by
L-3 WESCAM
All Rights Reserved
SYSTEM STATUS
(Main menu)
LEVEL 1 - SYSTEM STATUS
GIMBAL OK OPERATIONAL
EOW OK OPERATIONAL
IR OK OPERATIONAL
EON OK OPERATIONAL
RANGE FINDER OK OPERATIONAL
AVT OK OPERATIONAL
IMAGE PROCESSOR OK OPERATIONAL
VIDEO I/O OK OPERATIONAL
OPERATOR GIMBAL
OPERATOR PAYLOAD
MISSION
OVERLAY EOW
OVERLAY IR
OVERLAY ON
PROFILES DEFAULT

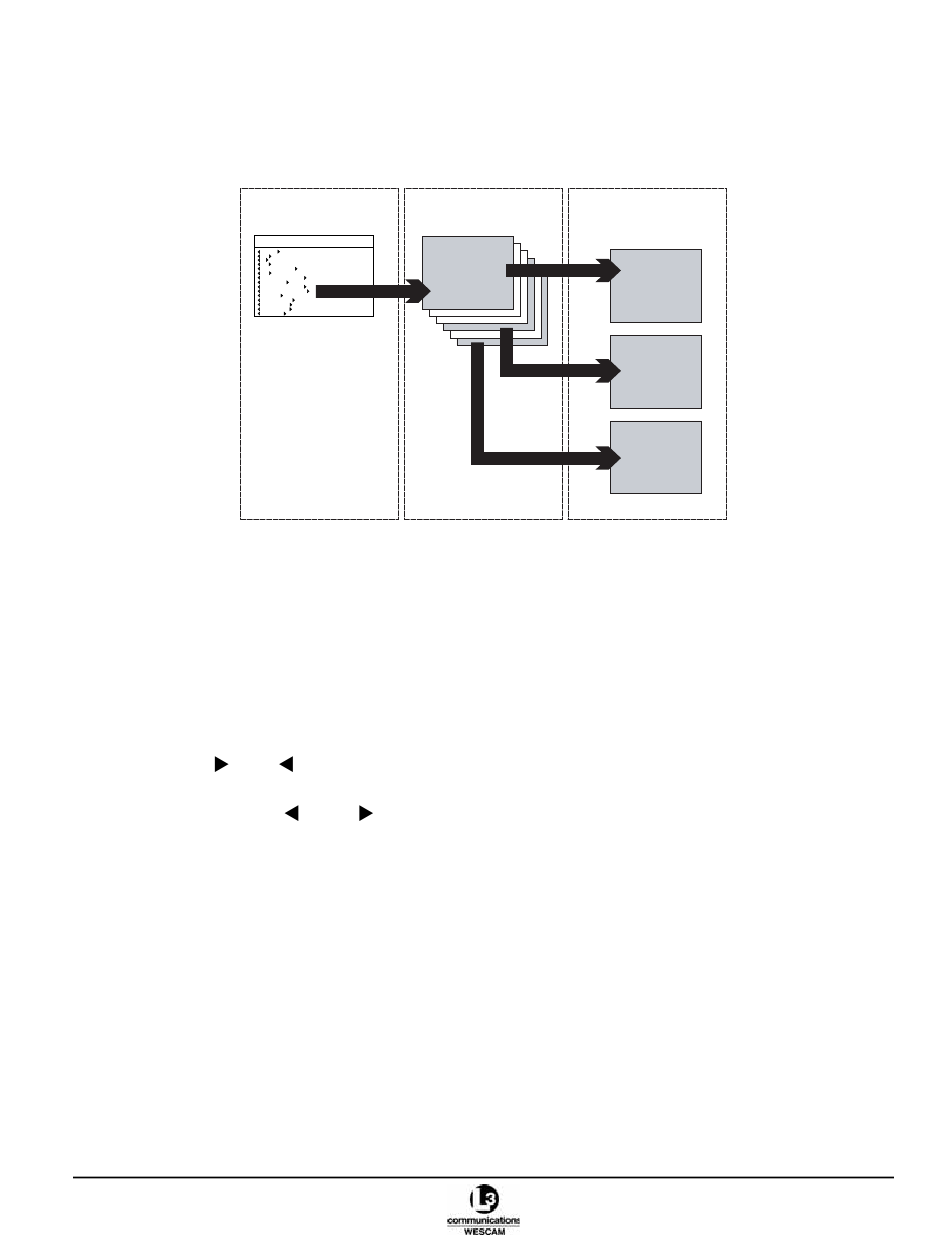

Figure 2-19 Menu Structure

pointing arrows.
outward pointing arrows.
nd rd
2 LEVEL 3
(Sub menu) (Sub menu)
