Chapter 2 - Video Status Overlays
2.2.5

System and Sensor Status Graphics

The MX-15i system status information is located at the top of the video display. System status information is
presented to the left side:
• Date & time, steering modes, and video image optimization.
Sensor optic settings are presented on the right side:
• Focal length, filtering, sensitivity mode, and focus distance.
The video-in-control is presented at top-center:
• Current sensor being controlled by the operator.
System
Status
Steering
Date Mode
22NV2006 MAN
09:45:12
UTC+0.0
N
UTC
Time
Offset
Date and Time. Displays the current date and time. The values can be set by the operator.
UTC Offset. The UTC (Coordinated Universal Time) is based on Greenwich Mean Time (GMT). The offset allows
local time setting to be shown by inputting the offset value from GMT. This field will only display UTC when a GPS
time-code is being received. If no GPS time-code is being supplied this graphic will be displayed as USER.
Steering Modes. Displays the current turret steering mode. Possible values can be:
• SCAN – Autoscan mode.
• MAN – Rate (Manual) mode. When ZMULTI is enabled, the MAN graphic will be displayed in reverse video.
• FWD – Forward mode.
• RAID – Rate Aid mode.
• AUTO – Auto Track (Geo-Position) or Geo-Slew (Auto Slew) mode (same status symbol for both).
• AAID – Auto Aid mode.
• STOW – Stow mode.
• DIS – Disable mode.
Note: When ZMULTI is enabled, the MAN, RAID & AAID graphics will be displayed in reverse video.
October 2007
24
Video
Temporal in Focal
Processor Control Length Filter
TEM 90 COL
EOW
SPA 2X DFLT
Spatial Digital
Processor E-Zoom

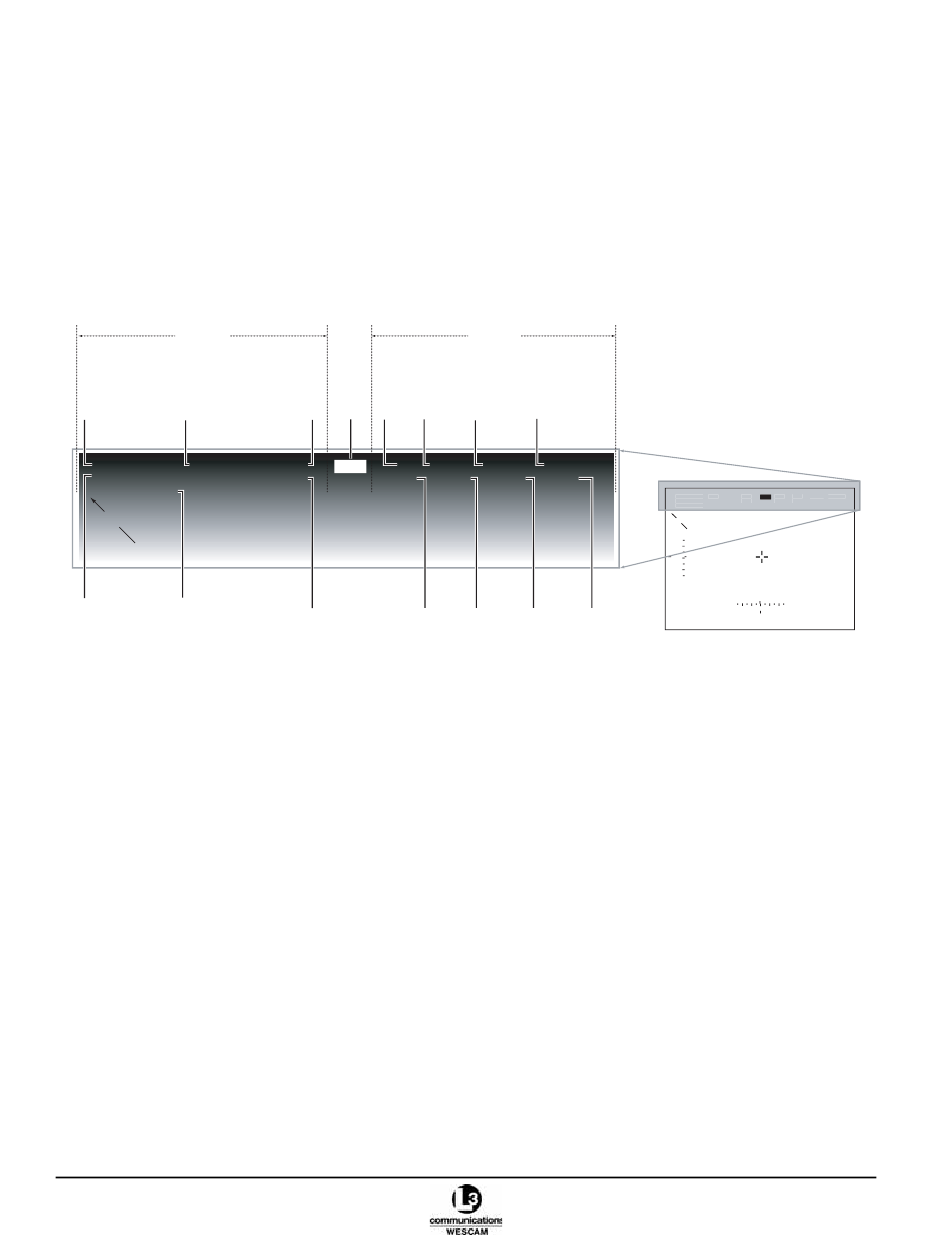

Figure 2-15 MX-15i System Video Overlay

Sensor
Optics
Sensitivity Focus
Mode Distance
AUTO 2000
50 2%
Scene Black Focus
Setup Level Trim
TM00358 Rev. A
22NV2006 22NV2006 MAN MAN TEM TEM 90 90 COL COL AUTO AUTO 2000 2000
EOW EOW
09:45:12 09:45:12 SPA SPA 2X 2X DFLT DFLT 50 50 2% 2%
USER+0.0 USER+0.0
N
01
00
-01
34 35 00 01 02
ACFT TGT LOS
27:46:12N 352° 153° 27:46:05N
82:57:16W 11050FT 679FT 35.3NM 82:57:22W
