Figure 2-5 Tracking And Orientation Overlay Graphics; Figure 2-6 Los Reticle - L3 Communications MX-15i Operation & Maintenance Manual

TM00358 Rev. A
Pitch
Indicator
-01
Elevation
Scale
Line-Of-Sight Reticle. An aiming indicator that defines the boresight of the sensor. The reticle's size and position
are fixed for standard imaging sensors. The reticle's size will not change with focal length adjustments.
Turret Position Scales. Moving scales that indicate the turret's azimuth and elevation position relative to the
aircraft's heading. The scales measure 360° of rotation where the last digit has been dropped. For example,
01=10°. A fixed hash mark defines the reading point.
Next Zoom Marker. Indicates the next display area for a sensor with stepped zoom capability. This graphic will not
be displayed for sensors with a fixed focal length or when the sensor is at its maximum zoom setting.
Relative Zoom Status Bar. A zoom utilization status bar that indicates the current FOV relative to the minimum
and maximum viewing angles of the sensor. A thick black bar indicates a wide FOV where the sensor has minimal
zoom applied. A thin black bar indicates a narrow FOV where the sensor has maximum zoom applied.
L-3 WESCAM
All Rights Reserved
22NV2006 MAN TEM
09:45:12 SPA
UTC+0.0
POP-UP ALERTS
N
01
00
34 35 00 01 02
ACFT
27:46:12N 352°
82:57:16W 11050FT
Azimuth Scale

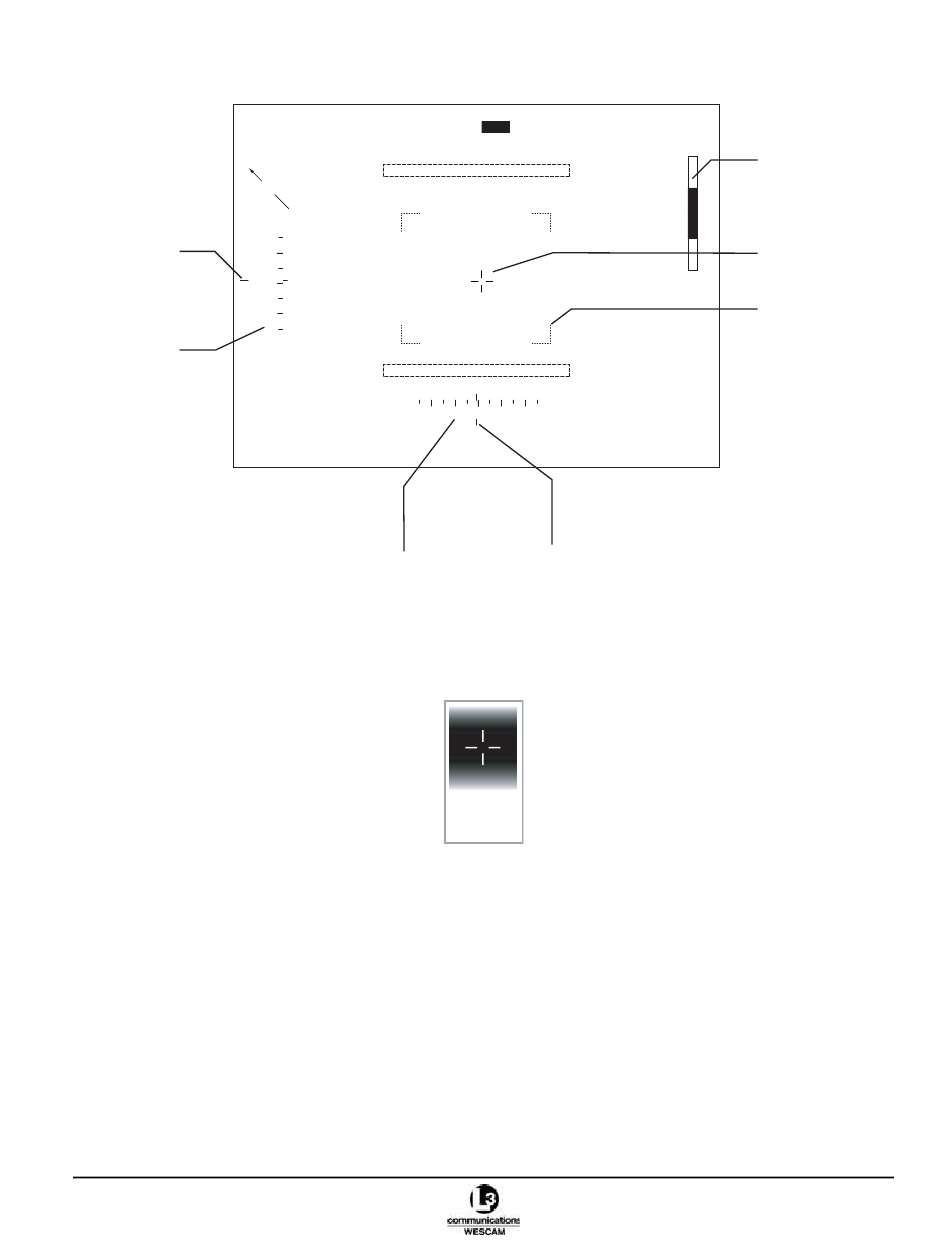

Figure 2-5 Tracking and Orientation Overlay Graphics
