L3 Communications MX-15i Operation & Maintenance Manual page 29

TM00358 Rev. A

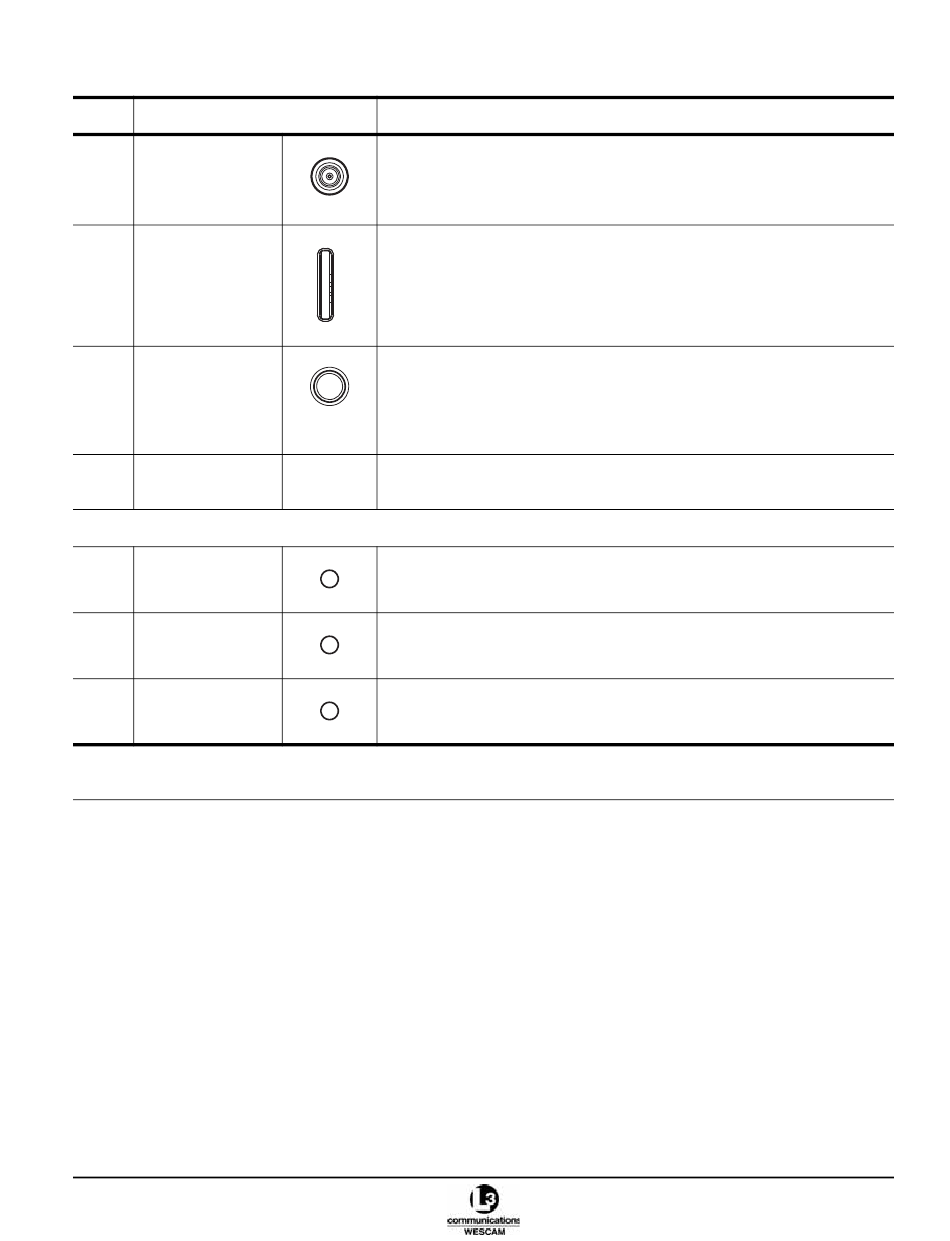

Table 2-1 Hand Controller Primary Switch Controls (Continued)
Item Control
(12) Slew Transducer
joystick
(13) FOCUS dial
(14) *AVT button
*Deadman lever
(15) *ARMED status
light
(16) *ACTIVE status
light
(17) ON status light
* Optional functions. These controls will have no effect if the hardware or software features have not been integrated as part
of the turret system.
L-3 WESCAM
All Rights Reserved
• Press up or down to change the elevation position of the turret.
• Press left or right to change the azimuth position of the turret.
Map Mode:
• Moves map screen cursor.
• For the Video-In-Control, scroll up or down to adjust the VIC sensor's focus.
F
O
C
U
S
AVT Mode:
• Push and hold the button to enable AVT function.
• Release button to set the target lock.
AVT
Map Mode:
• Press button to initiate a left mouse click on a Moving Map.
• Pull in to allow arming of the Laser Illuminator.
• Release to disarm the Laser Illuminator.
STATUS LIGHTS
• Lit LED indicates that the Laser Illuminator is armed.
• Unlit LED indicates that the Laser Illuminator is disarmed.
• Lit LED indicates that the Laser Illuminator is firing.
• Unlit LED indicates that the Laser Illuminator not firing.
• Lit LED indicates that the turret is powered.
• Unlit LED indicates that the turret has no power.
Chapter 2 - Hand Controller Controls
Description
October 2007
13
