TM00358 Rev. A
EON
#1
EOW
Video Annotation
Status graphics or text are rendered atop the analog video by 3 independent annotation streams – one for each of
the EOW, IR and EON sensors. System and sensor data are presented as either overlay status information over the
captured video or as on-screen user menu displays with no sensor video. The annotations are applied by the video
switch matrix before outputting to display.
Video Sync Detection
A built-in video sync detector monitors for potential video signal loss from the turret. If video from the turret is lost, a
BIT message will be displayed to report the failure.
L-3 WESCAM
All Rights Reserved
8x8 Y/C
#2
DCE
IR
#3

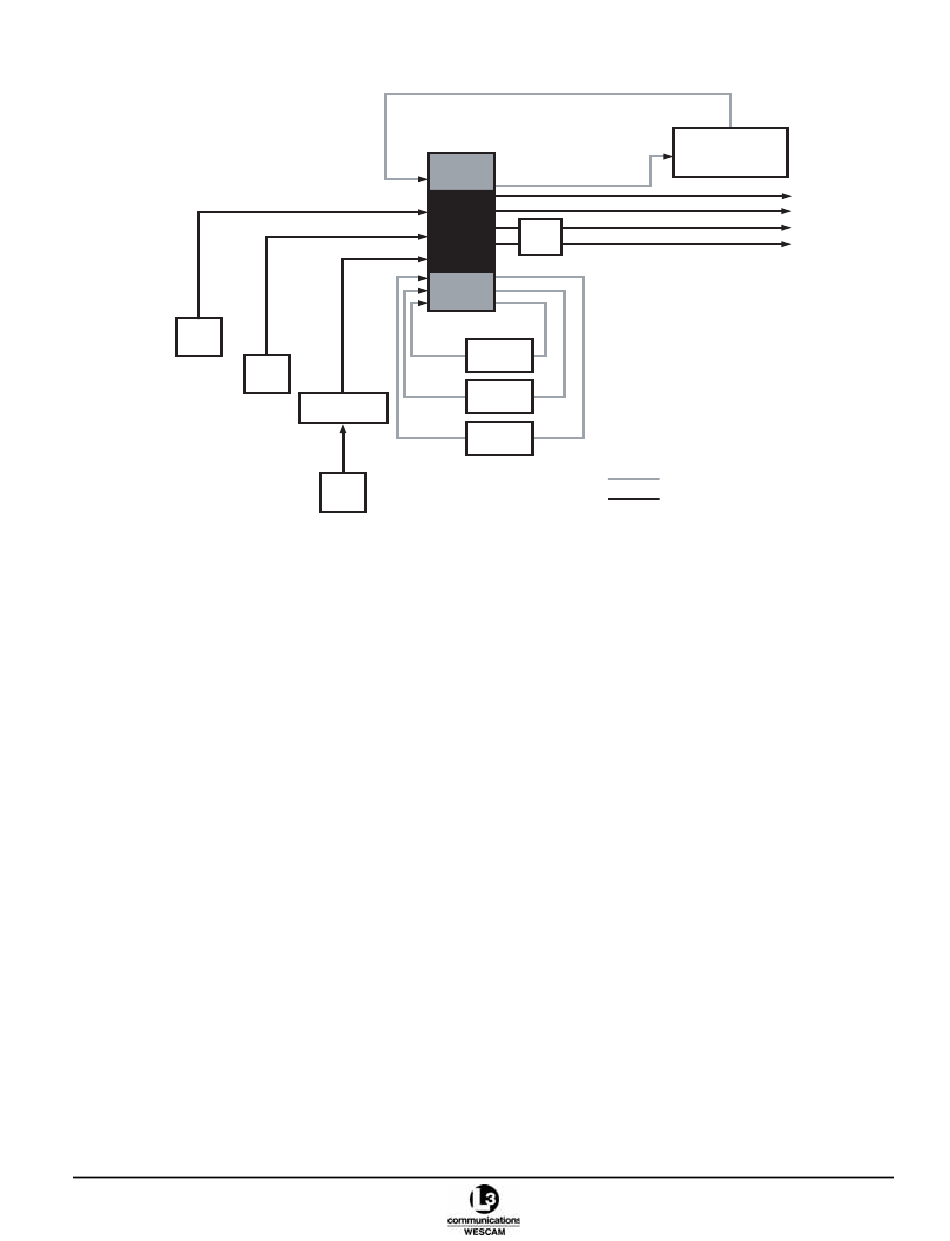

Figure 1-3 Simplified Sensor Video Flow

Video S-Video
to
Switch
Comp
Matrix
Overlay
#1
Overlay
#2
Overlay
#3
Chapter 1 - System Configuration
Automatic
Video Tracker
(Optional)
Video 1, S-Video
Video 2, S-Video
Video 3, Composite
Video 4, Composite
Overlay
Video Flow
October 2007
5
