TM00358 Rev. A

Table 1-1 System Components

Equipment
Turret MX-15i containing a payload of:
• EOW – Daylight Zoom Camera with
continuous zoom lens
• IR – Thermal camera with stepped zoom lens
• EON – MX-Day/Night Spotter™ with a fixed
focal length lens
Features:
• Gen 3.0 IR Video Processing circuit card
assembly
• Moving Map and NightSun Communication
interfaces enabled.
• NTSC video format
Operator • Hand Controller
Interface
GPS Antenna Omni, Hemispherical
1.1.1

Power

All turret system components operate on +28 VDC that is supplied from the aircraft. The turret is wired into the
aircraft power feed and routes +28 VDC power to the Hand Controller and +5 VDC to the GPS antenna. The
POWER switch on the Hand Controller both applies and removes power to the turret.
L-3 WESCAM
All Rights Reserved
Product Name
Airframe
Aircraft
Turret
Turret
Power
Relay
+
-
+28 VDC
Power
Power
Supply
Circuit

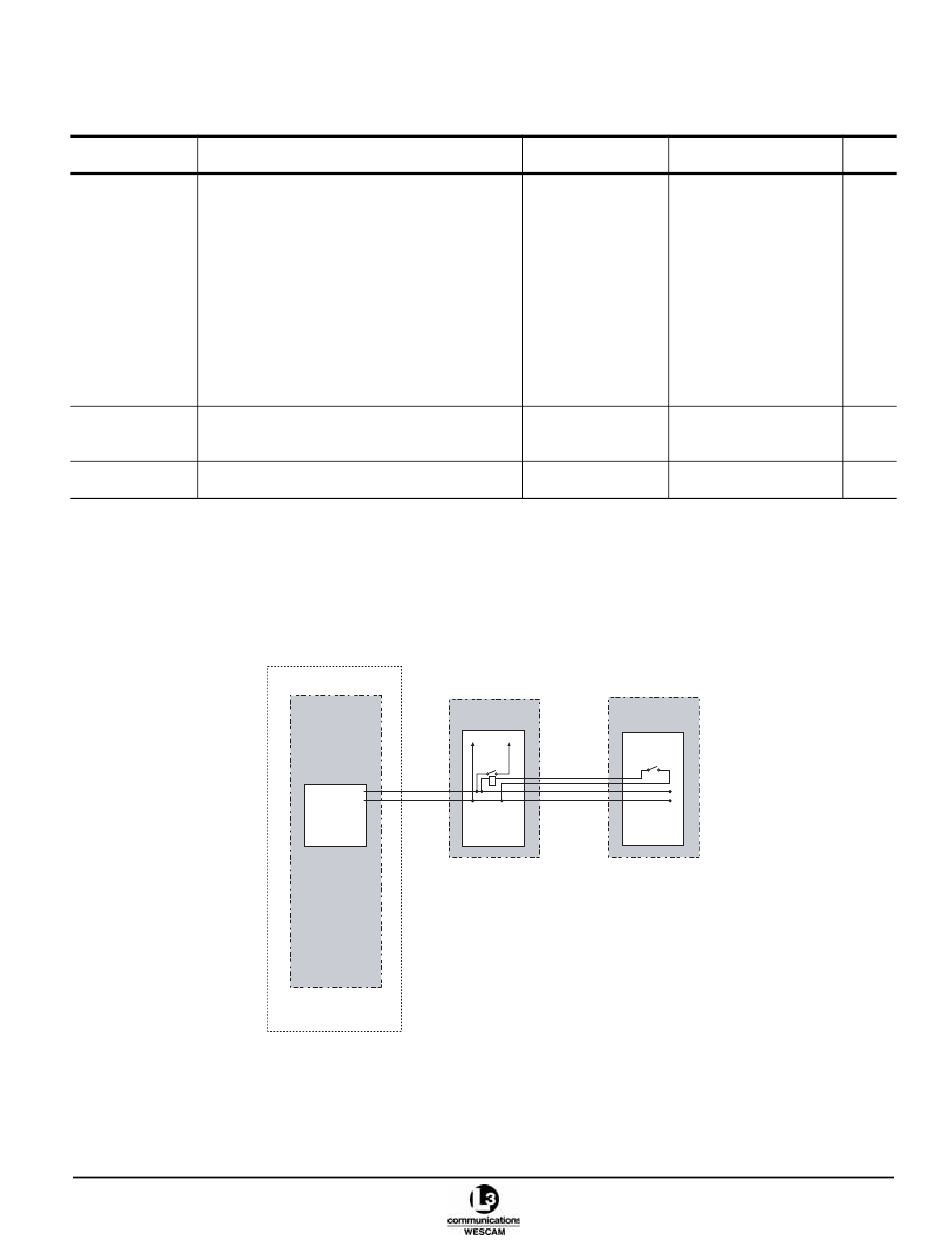

Figure 1-2 MX-15i System Power Distribution

Chapter 1 - System Configuration
Supplier Part Number
L-3 Wescam
L-3 Wescam
L-3 Wescam
Turret Systems
Hand
Controller
Turret
Power
Switch
Power
Circuit
Qty
42390 1
42228 1
GPS-511 1
October 2007
3
