SMART-AVI DVN-16Pro Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO

Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (16) DVI-D 29-pin (female)
Output Interface (1) DVI-D 29-pin (female)
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.

AUDIO

Input Interface (16) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB

USB

USB 2.0, 1.1, and 1.0 w/ inter-
Signal Type
nal hub
Input Interface (16) USB Type B (female)
(2) USB Type A (female) for
keyboard and mouse emula-
Output Interface
tion;
(2) for USB 2.0 Transparent

CONTROL

Front Panel
Buttons and LCD Display
RS-232 Via Control @ 115200 bps
Hotkeys Via Keyboard

OTHER

External 100-240 VAC/
Power
5VDC4A @20W
Dimensions 17" W x 3.625" H x 7.5" D
Weight
5.3 lbs.
Operating Temp. 32-131 °F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95% No Condensation
Emulation Keyboard and Mouse
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
DVN-16Pro, 16x1 DVI-D, USB
DVN-16PROS 1
2.0, Audio Switch
PS5VDC4A 1 Power Supply/Adapter
EN-DVN16P-
2 Mounting Brackets
EAR-P
1 Quick Start Guide

NOTICE

The information contained in this
document is subject to change without
notice. SmartAVI makes no warranty of any
kind with regard to this material, including
but not limited to, implied warranties of
merchantability and fitness for particular
purpose.
SmartAVI will not be liable for errors
contained herein or for incidental or
consequential damages in connection with
the furnishing, performance or use of this
material.
No part of this document may be
photocopied, reproduced, or translated
into another language without prior written
consent from SmartAVI Technologies, Inc.
20160825
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

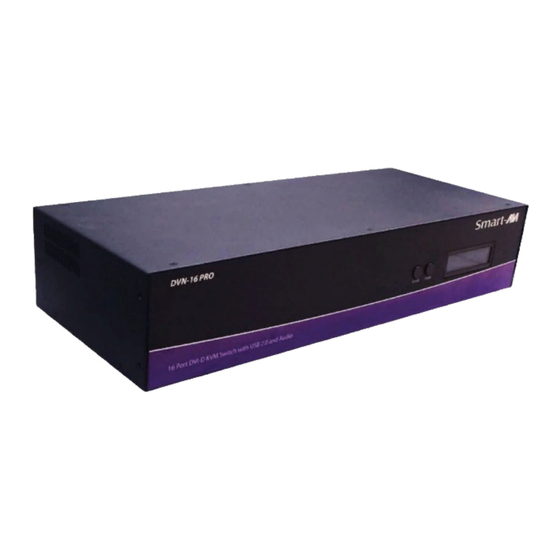

DVN‐16Pro
16-Port DVI-D KVM Switch
with Audio and USB 2.0
Sharing
Access and Control 16 Computers
with One USB keyboard, USB
Mouse and DVI-D Monitor
Quick Start Guide
