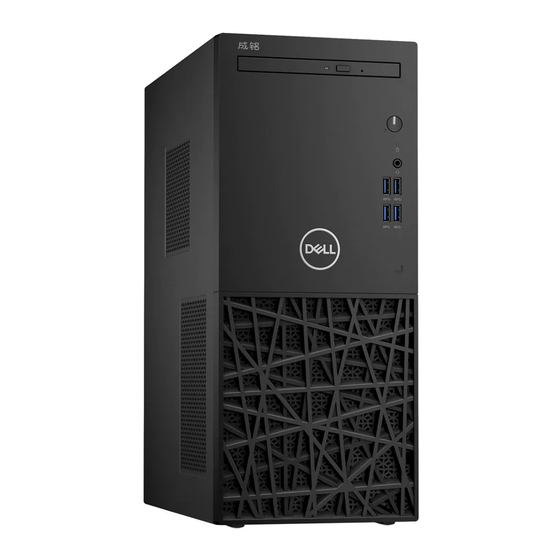

ChengMing 3988
Setup and specification guide
Regulatory Model: D19M
Regulatory Type: D19M005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ChengMing 3988 and is the answer not in the manual?

Questions and answers

Related Manuals for Dell EMC ChengMing 3988

Summary of Contents for Dell EMC ChengMing 3988

  • Page 1 ChengMing 3988 Setup and specification guide Regulatory Model: D19M Regulatory Type: D19M005...
  • Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

  • Page 3: Table Of Contents

    Contents 1 Set up your computer........................4 2 Chassis overview..........................9 System front view................................. 9 System back view..................................9 3 Technical specifications....................... 11 Physical specifications................................11 System information................................11 Processor specifications..............................12 Operating system................................. 12 Memory specifications.................................13 Ports and connectors................................13 Communications...................................14 Video...................................... 14 Audio specifications................................15 Storage....................................

  • Page 4: Set Up Your Computer

    Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable. Set up your computer...
  • Page 5 3. Connect the display. 4. Connect the power cable. Set up your computer...
  • Page 6 5. Press the power button. Set up your computer...
  • Page 7 6. Follow the instructions on the screen to finish Windows setup: a) Connect to a network. b) Sign-in to your Microsoft account or create a new account. Set up your computer...
  • Page 8 7. Locate Dell apps. Table 1. Locate Dell apps Register your computer Dell Help & Support SupportAssist — Check and update your computer Set up your computer...

  • Page 9: Chassis Overview

    Chassis overview System front view 1. Optical drive 2. Power button and power status light 3. Hard drive activity light 4. Universal audio jack 5. USB 3.1 Gen 4 ports System back view Back view (ChengMing 3988, Refresh) Chassis overview...
  • Page 10 1. Line out port 2. HDMI port 3. VGA port 4. PS2 port for keyboard 5. USB 2.0 ports (4) 6. Expansion card slots 7. Power supply diagnostic button 8. Power diagnostic light 9. Power connector port 10. Padlock ring 11.

  • Page 11: Technical Specifications

    Technical specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer, go to Help and Support in your Windows operating system and select the option to view information about your computer. Topics: •...

  • Page 12: Processor Specifications

    Processor specifications NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/country. Table 4. Processor specifications Type UMA Graphics Intel 8th Generation Celeron processor G4900 (2 MB Cache, 2 Intel UHD Graphics 610 with shared graphics memory cores,2 thread, 54 W, 3.1 GHz) Intel 8th Generation Pentium Gold processor G5400 (4 MB Cache, Intel UHD Graphics 610 with shared graphics memory...

  • Page 13: Memory Specifications

    Memory specifications Table 5. Memory specifications Feature Specifications 4 GB Minimum memory configuration 32 GB Maximum memory configuration Number of slots Maximum memory supported per slot • Slot configuration1: 4 GB • Slot configuration2: 8 GB • Slot configuration3: 16 GB Memory options •...

  • Page 14: Communications

    Table 7. Internal ports and connectors Description Values Internal: Expansion One PCIex16 expansion card slot, one PCIex1 expansion card slot and two PCI slot. mSATA slots SATA slots One SATA slot for 3.5-inch HDD, two SATA slot for optional 2.5- inch.

  • Page 15: Audio Specifications

    Table 11. Integrated graphics specifications Integrated graphics Controller External display support Memory size Processor Intel UHD 630 Graphics One HDMI 1.4b port Shared system memory /9th Generation Intel Core i3/i5/i7 Intel UHD 610 Graphics One HDMI 1.4b port Shared system memory Intel Cel, PDC Audio specifications Table 12.

  • Page 16: Security Hardware

    Feature Specifications Wattage • 290W PSU (APFC) • 290W PSU (EPA Bronze) • 365 W PSU (EPA Gold) Security hardware Table 15. Security hardware Feature Specifications Security HW • Data wipe via BIOS (Secure Erase) Regulatory and Environmental Compliance Table 16. Regulatory and Environmental Compliance Feature Specifications Regulatory and Environmental Compliance...

  • Page 17: System Setup

    System setup System setup enables you to manage your hardware and specify BIOS level options. From the System setup, you can: • Change the NVRAM settings after you add or remove hardware • View the system hardware configuration • Enable or disable integrated devices •...

  • Page 18: System Setup Options

    Keys Navigation <Tab> Moves to the next focus area. NOTE: For the standard graphics browser only. <Esc> Moves to the previous page till you view the main screen. Pressing <Esc> in the main screen displays a message that prompts you to save any unsaved changes and restarts the system. <F1>...
  • Page 19 Option Description Serial Port Identifies and defines the serial port settings. You can set the serial port to: • Disabled • COM1 (default) • COM2 • COM3 • COM4 SATA Operation Allows you to configure the operating mode of the integrated hard drive controller. •...
  • Page 20 Option Description Miscellaneous Devices Allows you to enable or disable the various on-board devices. • Enable PCI Slot (default option) Table 20. Video Option Description Primary Display Allows you to select the primary display when multiple controllers are available in the system. •...
  • Page 21 Option Description SMM Security Mitigation The option is disabled by default CPU XD Support Allows you to enable or disable the Execute Disable mode of the processor. This option is enabled by default. Table 22. Secure Boot Option Description Secure Boot Enable Allows you to enable or disable Secure Boot feature.
  • Page 22 Option Description Hyper-Thread Control Allows you to enable or disable the HyperThreading in the processor. • Disabled • Enabled (default) Table 25. Power Management Option Description AC Recovery Determines how the system responds when AC power is re-applied after a power loss. You can set the AC Recovery to: •...

  • Page 23: Updating The Bios In Windows

    Table 27. Virtualization Support Option Description Virtualization This option specifies whether a Virtual Machine Monitor (VMM) can utilize the additional hardware capabilities provided by Intel® Virtualization Technology. Enable Intel Virtualization Technology - This option is enabled by default. VT for Direct I/O This option is enabled by default.

  • Page 24: System And Setup Password

    2. Go to Dell.com/support. • Enter the Service Tag or Express Service Code and click Submit. • Click Detect Product and follow the instructions on screen. 3. If you are unable to detect or find the Service Tag, click Choose from all products. 4.

  • Page 25: Deleting Or Changing An Existing System Setup Password

    Deleting or changing an existing system setup password Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked. To enter the System Setup, press F2 immediately after a power-on or reboot.

  • Page 26: Software

    Software Operating system Operating systems supported: • Windows 10 Home (64-bit) • Windows 10 Professional (64-bit) • NeoKylin • Windows 10 national academy Downloading drivers 1. Turn on the . 2. Go to Dell.com/support. 3. Click Product Support, enter the Service Tag of your , and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your model.

  • Page 27: Serial Io Driver

    Serial IO driver Verify if the drivers for Touchpad, IR camera, and keyboard and are installed. Software...

  • Page 28: Usb Drivers

    Figure 1. Serial IO driver USB drivers Verify if the USB drivers are already installed in the computer. Network drivers Install the WLAN and Bluetooth drivers from the Dell support site. Table 33. Network drivers Before installation After installation Realtek Audio Verify if audio drivers are already installed in the computer.

  • Page 29: Serial Ata Drivers

    Table 34. Realtek audio Before Installation After Installation Serial ATA drivers Install the latest Intel Rapid Storage driver for best performance. Using the default Windows storage drivers is not recommended. Verify if the default serial ATA drivers are installed in the computer. Software...

  • Page 30: Getting Help

    Getting help Topics: • Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.
