Summary of Contents for Ampcontrol ELD V2

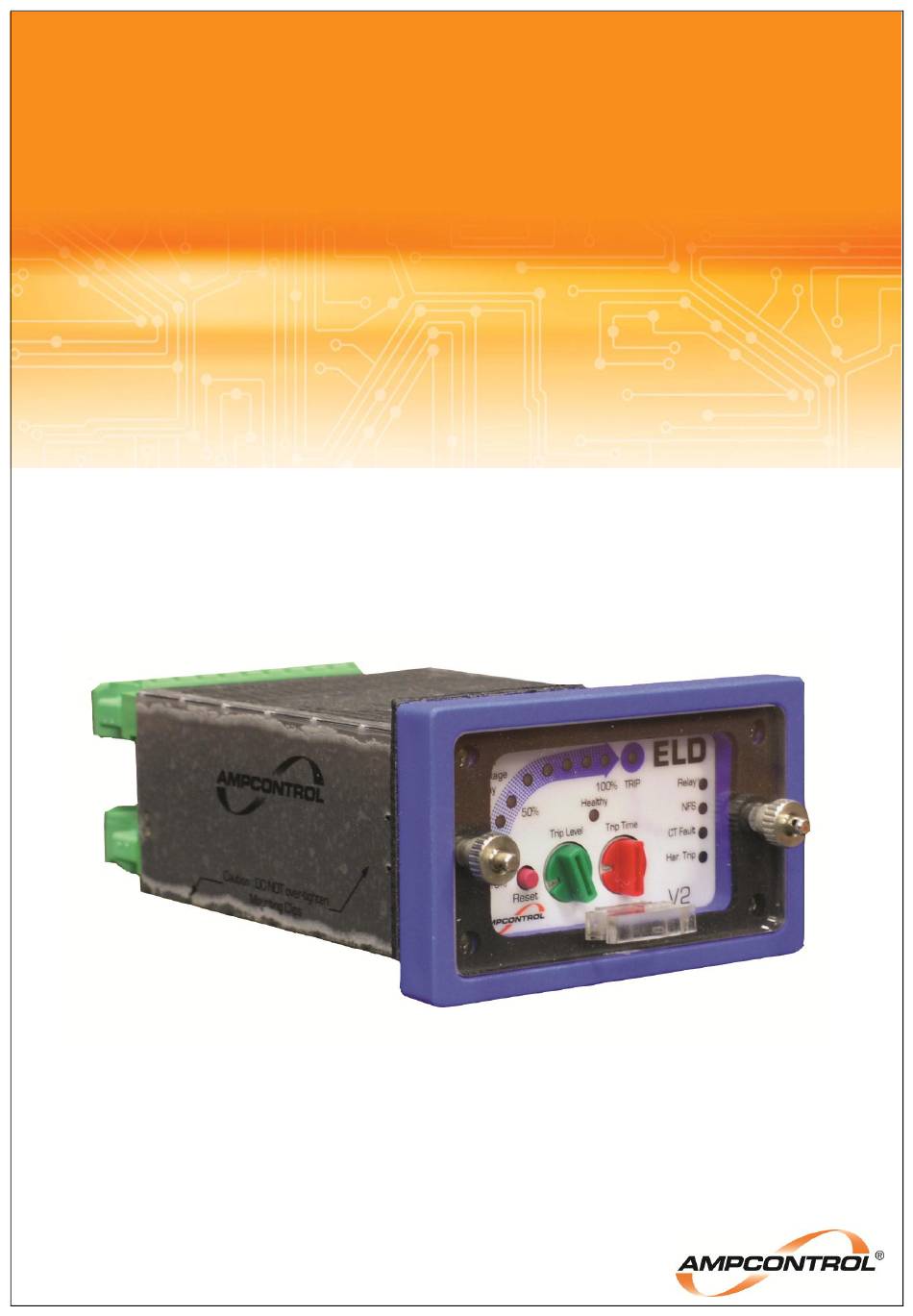

- Page 1 ELD V2 EARTH LEAKAGE PROTECTION RELAY - USER MANUAL Issue: R8 Aug 2011 CRN: 8530 Ampcontrol User Manual Part No: 121581 Designed and Manufactured in Australia by Ampcontrol CSM Pty Limited.
-
Page 2: Safety And Other Warnings
Issue: R8, Date: 10/08/2011, CRN: 8530 IMPORTANT! This manual refers to the ELD V2 Relay. A ‘V2’ symbol on the fascia of the relay indicates that the ELD relay is version 2 and that this manual is relevant. For other models of the ELD Relay refer to the appropriate ELD Manual; contact Ampcontrol for further details. -
Page 3: Copyright Notice
Before You Begin We would like to take a moment to thank you for purchasing the ELD V2 Earth Leakage Relay. WARNING! To ensure the correct and safe operation of this equipment the user is to become completely familiar with the safety requirements and correct operating procedures detailed in this user manual. -
Page 4: Table Of Contents
Maintenance & Disposal ............................ 13 7.1 Equipment Maintenance ..........................13 7.2 Disposal of System Parts ..........................13 Equipment List ..............................13 Appendix A – Drawings ............................... 14 ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 3... -
Page 5: Receiving And Storage
Ampcontrol immediately. Notify Ampcontrol within 7 days (maximum) in case of shortages or discrepancies, according to the packing list. This action will help ensure a speedy resolution to any perceived problems. Keep a record of all claims and correspondence. -
Page 6: General Safety
If in doubt, contact Ampcontrol immediately. Mechanical and or Electrical installation, and maintenance of plant and equipment, must only be carried out by appropriately trained, qualified and competent personnel. ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 5... -
Page 7: Overview Of Earthing Protection
Internationally accepted voltage/time effects on the human body based on IEC479. Instructions for installation in accordance with accepted State and Federal Regulations. Equipment maintained in accordance with industry standards. ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 6... -
Page 8: The Need For Earth Leakage Protection
Cable construction is such as to provide every phase conductor with an individual conductor screen so that crushing would cause a low single phase to earth fault current. The protective device, such as an Ampcontrol ELD earth leakage relay, would then isolate the cable and contain the sparking within the cable before a heavy short circuit current due to a phase to phase fault occurs. -
Page 9: Methods Of Earth Leakage Protection
The test resistor to earth method is recommended with this type of protection as this test also proves the neutral to earth connection. See typical circuit, Page 16 - Drawings. ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 8... -
Page 10: Earth Leakage Toroids
Select the smallest internal diameter toroid, which will allow the cables to fit through. Avoid very large toroids (200mm) or toroids with square apertures. Only use approved toroids specified by Ampcontrol as these have been designed to minimise the problem. 4.4.2 Toroid Installation Guidelines Keep cables as close to the centre of the toroid as possible. -
Page 11: Eld Earth Leakage Breaker-Operation & Testing

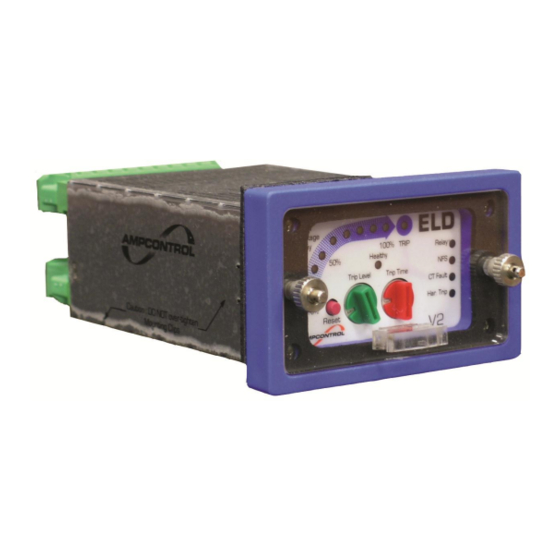

The ELD V2 Earth Leakage Relay is housed in a stainless steel case and can be either ‘DIN Rail’ mounted or ‘Panel Mounted’ through a 69 x 39mm cut out. When panel mounted the front of the ELD Relay is designed to provide IP- 56 ingress protection. -
Page 12: Testing Procedure
1 second after the reset button is released. 5.4 Toroids The ELD V2 Relay is designed for use with Ampcontrol EL500S series Toroids. They are available with window sizes 25, 60, & 112mm. These allow trip settings from 100mA to 2500mA. - Page 13 Verify you have the correct version of the relay by checking that ‘V2’ is printed on the fascia, as shown in the image on the front cover of this document, before selecting positions 9 to F of this table. ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 12...
-
Page 14: Maintenance & Disposal
ELD can seriously compromise the safety of the unit and the consequence can be fatal. The ELD V2 Earth Leakage Protection Relay does not have any customer serviceable parts and is not provided with any user adjustments. -
Page 15: Appendix A - Drawings
General Arrangement with Cut-out Details ELDE002 Typical Connection Diagram The drawings appear in the following pages in the same order in which they are listed in the table above. ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 14... - Page 16 ELD V2 EARTH LEAKAGE RELAY Issue: R8, Date: 10/08/2011, CRN: 8530 ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 15...
- Page 17 ELD V2 EARTH LEAKAGE RELAY Issue: R8, Date: 10/08/2011, CRN: 8530 ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 16...
- Page 18 ELD V2 EARTH LEAKAGE RELAY Issue: R8, Date: 10/08/2011, CRN: 8530 ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 17...
- Page 19 1ohm. If this is not done then a “CT” fault will be detected and the relay will trip. ELDB006 Rev8 ELD V2 (2002) Earth Leakage Protection Relay User Manual Page 18...
